Custom Patch Digitizing Complete Guide | Embroidery File Making, Cost Standard & Common Digitizing Mistakes
Digitizing is the core transitional step converting client’s original graphic artwork into machine-readable DST embroidery file that guides embroidery machine needle movement. Unprofessional low-quality digitizing leads messy overlapping stitches, fabric puckering, thread breakage and blurred graphic details even with premium thread and high-end embroidery equipment, becoming a major hidden reason of finished patch quality complaints.
This professional guide explains pre-digitizing artwork preparation rules, mainstream stitch type usage, industry digitizing pricing logic and typical digitizing-caused defects & solutions. Custom 3D embroidered patches adopts professional in-house digitizing team to optimize stitch parameter for patch-specific production standards.
Part1: Pre-Digitizing Artwork Preparation Standard
Qualified Optimal File Format
- Vector files (AI, EPS, SVG): Top priority, infinitely zoomable without blurriness, best for accurate digitizing tracing with zero pixel distortion.
- High-definition PNG/JPG: Minimum 300DPI high-resolution clear picture as alternative; fuzzy low-resolution photo easily leads tracing deviation and messy stitch layout.
Unacceptable input: Blurry compressed screenshot, low pixel phone photo with deformed edge details.
Artwork Design Pre-Check Before Digitizing
- Ultra-thin lines below 1.2mm need design revision; cannot convert into stable running stitch without merging during embroidery.
- Overcrowded tiny compact patterns require proper simplification to avoid excessive dense stitch causing fabric shrinkage and puckering.
Part2: Three Core Stitch Types For Embroidered Patch Digitizing
1. Satin Stitch (Outline & Small Solid Fill)
Smooth glossy tight stitch for border outline, small letter and narrow solid color block; standard for patch logo fine edge presentation, not applicable for large-area filling (easily cause fabric wrinkle).
2. Tatami/Fill Stitch (Large Solid Color Field)
Interlaced dense fill stitch for big background solid color regions; adjustable stitch density to balance coverage and fabric flatness, mainstream fill choice for most patch main graphics.
3. Running/Bean Stitch (Contour Outline Decoration)
Thin sparse single row stitch for auxiliary decorative contour only, cannot independently fill solid color area.
Part3: Industry Standard Digitizing Pricing Rules
Most factories calculate digitizing cost based on total stitch count or artwork overall size:
- Small patch under 5cm: Fixed base digitizing fee for low total stitch volume.
- Medium 5~8cm regular patch: Cost rises proportionally with total stitch quantity.
- Large over 9cm oversized back patch: Tiered pricing for high stitch count complex graphics.
Key benefit: Once DST digitized file is finished and saved, repeated reorders of same design skip secondary digitizing expense entirely.
Part4: Common Digitizing Defects & Root Causes
- Fabric puckering & wrinkling after embroidery → Missing underlay stitch setting during digitizing; add base underlay layer to fix uneven fabric shrinkage.
- Small letter merged unreadable → Excessively high stitch density or inappropriate stitch type selected for mini font; switch to thinner running/satin parameter.
- Frequent thread break during machine production → Abrupt sharp angle stitch jump setup; optimize stitch path to reduce needle direction abrupt turn.
- Uneven raised patch surface → Unbalanced fill stitch density across graphic area; adjust regional density by color block.
Part5: Practical Tips To Reduce Digitizing Related Defect Rate
- Supply vector artwork whenever possible to improve digitizing tracing precision and cut revision cost.

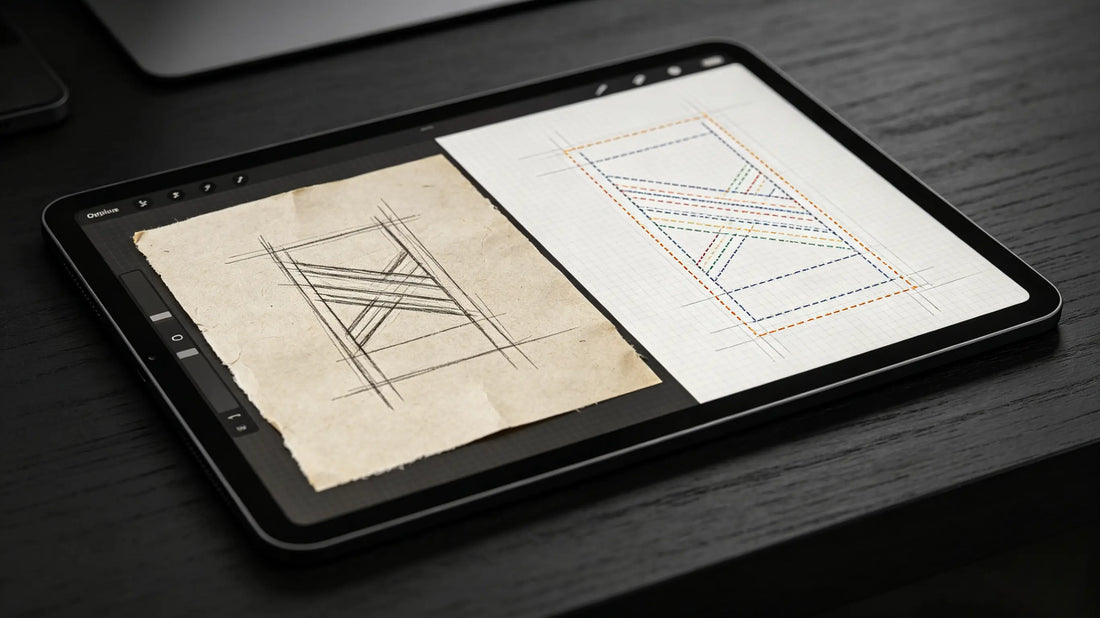

- Request stitch preview picture before bulk production; check graphic proportion and stitch layout in advance.
- Reserve small pre-production test piece after digitizing to verify real stitching effect before full batch run.
- Specify patch end usage (denim jacket/sport jersey) for digitizer to adjust density matching target fabric thickness.
Common Client Mistakes Leading Bad Digitizing Result
- Submit blurry low-resolution pixelated picture as original design leading distorted tracing.
- Keep ultra-fine under 1mm tiny lines without design modification forcing abnormal dense stitch.
- Ignore preview confirmation and directly launch bulk production after digitizing file delivery.
Final Summary Core Rule
Vector high-res artwork + three categorized stitch allocation + proper underlay setting + preview confirmation = high-quality digitized patch file; saved DST file reuse free of extra digitizing cost for repeat orders.
Standardize pre-submission artwork specification to avoid unnecessary digitizing revision charge and defective finished patches.
Frequently Asked Questions
Q1: Which file format is best for professional patch digitizing?
A: Vector AI/EPS/SVG files deliver highest accuracy for embroidery digitizing tracing.
Q2: Do repeat orders of same design need to pay digitizing fee again?
A: No, finished DST file is archived for reuse without secondary digitizing cost.
Q3: What stitch fits large solid background filling on embroidered patches?
A: Tatami fill stitch is standard for large-area solid color filling.
Q4: Why embroidered patch fabric wrinkles after production?
A: Missing necessary underlay stitch in digitizing setup is the top cause of fabric puckering.
