3D Puff Embroidery Patches 2026 | Ultimate Guide to Raised Foam Patch Effects

3D Puff Embroidery is the most popular premium upgrade for custom embroidered patches. Also known as foam puff embroidery, this technique creates a bold, raised, three-dimensional foam texture that stands out from standard flat embroidery.

While regular patches lay flat against fabric, 3D puff patches feature elevated, sculpted design elements with depth, volume, and tactile softness. The premium pop-out look makes them the top choice for morale patches, motorcycle vests, brand logos, and high-end merchandise.

However, 3D puff has strict design rules, size limits, and durability behaviors different from flat embroidery. Many customers receive deformed, squashed, or bubbled patches due to incorrect design setup. This 2026 full guide explains exactly how 3D puff works, what designs qualify, and how to get perfect raised results on your custom embroidered patches.

1. What Is 3D Puff Embroidery & How It Works

3D puff embroidery uses a special heat-activated foam layer placed underneath embroidery stitches during production.

The full manufacturing process:

1. A thin flexible foam sheet is laid over the patch base fabric
2. Embroidery machines stitch directly through the foam, locking it into place
3. Excess foam outside the stitched design is trimmed away
4. Finished patches are heat pressed
5. The foam thermally expands, lifting the stitched area upward into a soft raised 3D shape

The result is a padded, dimensional design with rounded edges and visible depth, while unstitched areas remain flat. This creates a stunning contrast between raised artwork and flat patch background.

2. Full 3D Puff VS Partial 3D Puff

There are two professional 3D puff styles used in custom patch production.

Full 3D Puff Entire Patch

The whole design surface is raised uniformly. Maximum volume, boldest look, most premium texture.

• Best for: Simple logos, text badges, solid emblems, tactical morale patches
• Style effect: Fully inflated, plush, eye-catching 3D appearance

Partial 3D Puff (Layered Effect)

Only specific elements are raised (text, borders, mascots), while backgrounds stay flat. Creates professional layered depth.

• Best for: Complex multi-element logos, detailed crests, multi-layer graphics
• Style effect: Highlighted focal points, dimensional contrast, clean premium layering

Partial 3D puff is widely considered the most high-end look for brand patches.

3. Key Advantages of 3D Puff Patches

Unmatched Visual Depth & Premium Look

3D puff adds physical dimension that flat embroidery, woven, and sublimation patches cannot replicate. Designs look bolder, thicker, and more expensive.

Tactile Soft Foam Texture

Raised foam sections feel soft, squishy, and premium to the touch, creating a high-quality branded experience.

Excellent Standout Effect on Gear

3D patches pop on dark vests, backpacks, uniforms, and tactical gear, making logos and emblems highly visible.

Covers Minor Fabric Imperfections

The raised foam layer conceals minor base fabric texture and tiny stitch inconsistencies, delivering cleaner finished artwork.

4. Limitations & Design Rules for 3D Puff

3D puff cannot be applied to every design. It has strict technical limits.

Minimum Size Rule

3D puff cannot support tiny text or micro lines.

• Minimum letter height: 8mm
• Minimum stroke width: 2mm Anything smaller will collapse, bubble, or completely flatten after heating.

No Ultra-Fine Detail

Foam expansion blurs micro details. Intricate thin-line artwork, tiny symbols, and tight overlaps are not compatible with full 3D puff.

Large Solid Areas Risk Bubbling

Extra-large solid fill spaces may bubble unevenly during foam expansion, causing inconsistent surfaces. Large areas require partial puff or flat fill.

No Gradient or Shading Work

3D puff works only with solid stitch blocks. It cannot support blended tones or subtle shading.

Slightly Thicker Profile

3D patches have extra foam thickness, making them slightly bulkier than standard flat patches.

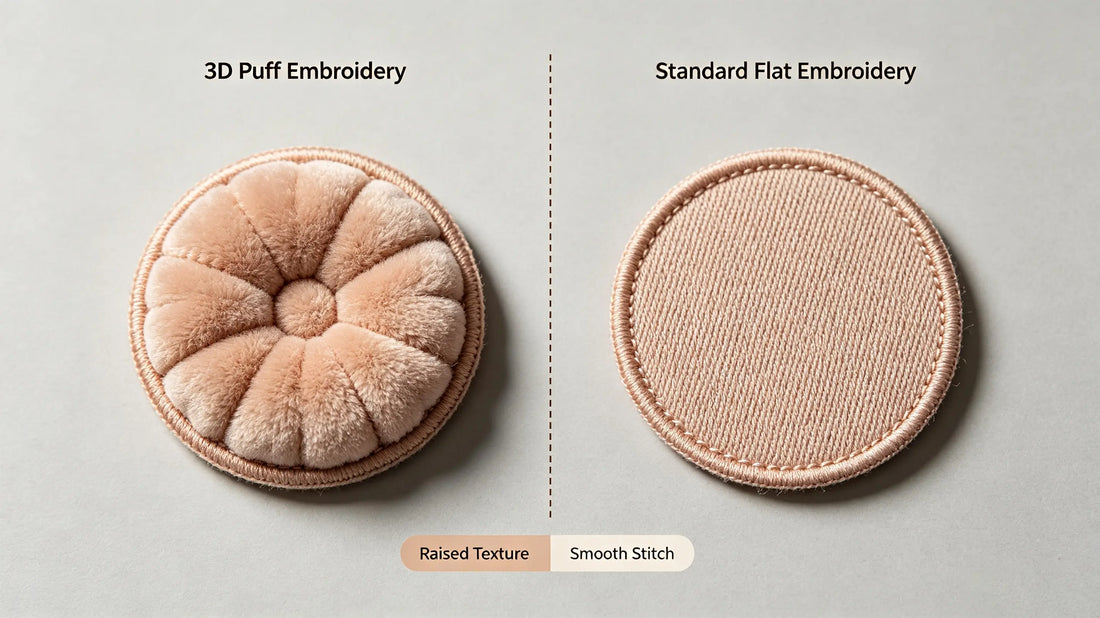

5. 3D Puff VS Flat Embroidery Full Comparison

Depth

• 3D Puff: Raised, volumetric, three-dimensional
• Flat Embroidery: Flush, 2D even surface

Detail Level

• 3D Puff: Best for bold thick shapes and large text
• Flat Embroidery: Supports fine lines, small text, intricate details

Texture

• 3D Puff: Soft, plush, padded
• Flat Embroidery: Firm, crisp stitched texture

Premium Level

• 3D Puff: High-end, custom, premium finish
• Flat Embroidery: Standard classic finish

Pricing

• 3D Puff: Premium upgrade cost
• Flat Embroidery: Standard base pricing

6. Best Designs for 3D Puff Upgrades

• Bold block letter text logos
• Shield, skull, mascot, and emblem graphics
• Tactical morale patches and military insignia
• Motorcycle club vest back patches
• Brand logos with thick solid shapes
• Sports team badges and thick border designs

7. Designs You Should Never Apply Full 3D Puff

• Small text under 8mm
• Thin delicate outlines and hairline strokes
• Highly complex multi-detail crests
• Dense multi-color layered artwork
• Photographic or gradient-style designs

For these designs, partial puff or flat embroidery is recommended.

8. Durability & Washing Guide for 3D Puff Patches

3D foam puff is durable but requires gentler care than flat embroidery.

Best Care Rules

1. Always wash garments inside-out
2. Use cold water and gentle cycle
3. Avoid aggressive scrubbing directly on raised foam areas
4. Air dry recommended; low tumble dry only
5. Do not iron directly over 3D foam sections (heat collapses foam)

Lifespan Expectation

With proper care, 3D puff patches retain their shape for years. Heavy industrial washing or high heat will gradually compress foam and reduce puff volume.

9. Common 3D Puff Mistakes & How to Avoid Them

Puff Applied to Too-Small Text

Results in merged letters, collapsed foam, and unreadable text. Always enlarge text for 3D puff designs.

Over-Puffing Large Solid Areas

Causes uneven bubbling, lumpy surfaces, and deformed artwork. Use partial puff for large fills.

High Heat Ironing After Installation

Completely flattens the 3D foam layer, permanently ruining the raised effect.

Too-Tight Stitch Density

Over-dense stitching restricts foam expansion, resulting in weak low-volume puff.

Final Thoughts

3D puff embroidery is the ultimate premium upgrade for bold, eye-catching custom patches. It adds physical depth, soft texture, and a luxury finish that flat embroidery, woven, and sublimation patches cannot match.

While 3D puff requires larger text sizes, bolder shapes, and simpler design structures, the final premium look is well worth the upgrade for tactical gear, motorcycle vests, brand merch, and collectible patches. Always match your design style to 3D puff limitations to avoid collapsed text, bubbling surfaces, or ruined details.

FAQ

Q: Are 3D puff patches durable?

A: Yes, with standard gentle washing they remain durable long-term. High heat and aggressive scrubbing will compress foam over time.

Q: Can 3D puff do small fine text?

A: No. 3D puff requires minimum 8mm letter height. Small text must stay flat.

Q: Can you iron 3D puff patches?

A: No. Direct heat will melt and collapse the foam layer, flattening the 3D effect permanently.

Q: What’s the difference between full 3D and partial 3D puff?

A: Full puff raises the entire design; partial puff raises only selected elements for a layered professional look.

Q: Does 3D puff embroidery cost more?

 A: Yes, it is a premium upgrade due to extra foam material and specialized production steps.
