Custom Patch Artwork Guide 2026 | File Formats, Design Rules & Submission Tips

Great‑looking custom patches always start with well‑prepared artwork. Many disappointed customers receive finished patches with blurry edges, unreadable tiny text, merged‑together details, or mismatched colors, simply because their original design file was not suitable for patch manufacturing.

Each patch type, including embroidered, woven, sublimation, and PVC rubber patches, has unique technical limits on lines, text, color gradients, and fine details. Knowing these rules before you submit your artwork eliminates costly revisions, prevents production delays, and ensures your finished patch matches exactly what you imagined. This complete 2026 artwork guide walks you through file formats, minimum‑size design standards, limitations for each patch material, and best practices for sending files to your patch supplier.

1. Best File Formats For Custom Patches

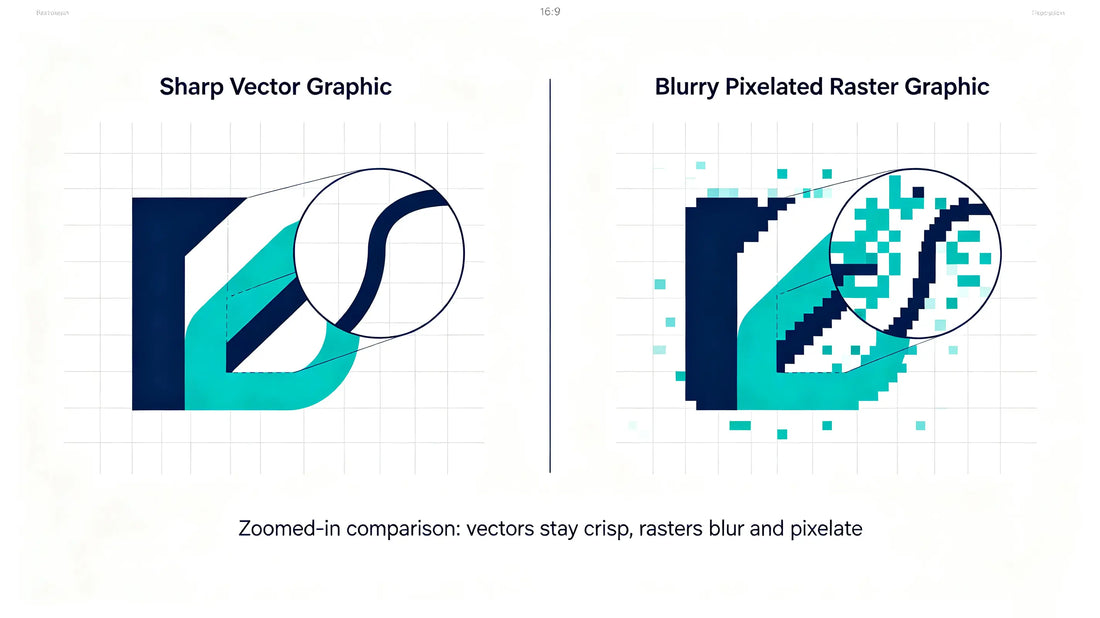

Files fall into two main categories: vector files and raster image files. Vector artwork is always the first‑choice production‑ready format for professional‑quality custom patches.

Vector Files (Recommended #1)

Supported file types: AI, EPS, SVG, print‑ready PDF Vector graphics are built from mathematical paths instead of pixels. You can resize them infinitely, from a tiny 2‑inch hat patch up to a huge 12‑inch biker back patch, with zero pixelation, blurry edges, or distorted shapes.

• Sharp, clean outlines
• Fully editable colors and shapes
• Saves the supplier valuable redraw‑time
• Reduces risk of artwork‑related delays Pro tip: Always convert all fonts to outlines before sending vector files. This prevents missing‑font errors at the factory.

High‑Resolution Raster Images (Acceptable Alternative)

Supported file types: PNG (transparent background preferred), PSD, high‑quality JPG Minimum requirement: 300 DPI resolution at your final finished patch size. Low‑resolution screenshots, social‑media photos, and compressed web‑images are not suitable. When stretched to your patch dimensions, they become fuzzy and pixelated. If you only have a blurry photo or hand‑drawn sketch, most suppliers offer artwork redraw services to convert your reference image into clean, production‑ready vector art.

Files You Should Never Submit

• Low‑resolution screenshots
• Web‑saved images under 72 DPI
• Heavily compressed JPEGs with visible artifacts
• Word‑processor documents
• Images embedded inside PDF files without vector outlines

2. Minimum Text & Line‑Thickness Standards

Every patch material has hard minimum limits for text height and thin lines. Designs smaller than these thresholds will blur, merge, or disappear after production.

Embroidered Patches

• Minimum readable text height: 0.24 inches (6 mm)
• Minimum line thickness: 1.5 mm
• 3D Puff embroidery: minimum text height 0.31 inches (8 mm). Raised foam cannot reproduce extremely small characters.

Woven Patches

• Minimum readable text height: 0.16 inches (4 mm)
• Excellent fine‑detail capability for thin logos and small text

Sublimation Patches

• Minimum readable text height: 0.16 inches (4 mm)
• Photographs, small icons and fine print reproduce clearly

PVC Rubber Patches

• Minimum molded text height: 0.28 inches (7 mm)
• Very thin molded rubber features risk breaking off easily

General rule: If your patch will be 2.5 inches or smaller, use bold, large‑font text and avoid long paragraphs of small print entirely.

3. Color & Gradient Limitations By Patch Type

One of the most common design‑expectation gaps happens with color transitions and gradients. Different patch technologies handle colors very differently:

Embroidered Patches

Standard embroidery thread can only print solid, flat colors. Soft gradients, drop shadows, and smooth color fades are impossible to recreate with thread. If your artwork contains gradients, the design team will convert it into separate blocks of solid color. Most suppliers offer a standard maximum thread‑color limit per patch design. Extra‑color charges may apply when you exceed this limit. Use Pantone color codes to get the most accurate color matching results for branded logos.

Woven Patches

Woven patches also use solid thread colors and cannot produce smooth gradient fades. They are perfect for sharp‑edged logos, crests, and badges.

Sublimation Patches

Full‑color printing technology. Gradients, photographs, watercolor effects, shadows, and unlimited color blends are reproduced with high fidelity. This is your best option for photo‑realistic artwork.

PVC Rubber Patches

Solid injected colors. Smooth gradients are not possible. Each color must be a separate, solid shade.

4. Shape, Border, and Negative‑Space Design Tips

When designing your patch, always consider the finished border style you will select: merrowed edge or heat‑cut laser edge.

• Merrow borders wrap thread around the outer perimeter. Leave a small safety gap between your outermost graphic elements and the patch edge, so artwork does not get covered by the stitched border.
• For irregular custom die‑cut shapes, ensure key graphic elements are not positioned too close to the cutting line.
• Leave enough negative, empty space between closely packed shapes and letters. Over‑crowded designs turn into a messy merged block of stitches on small‑size patches.

5. How To Prepare Artwork Before Submission

Follow this simple pre‑submission checklist to catch errors before sending your files:

1. Confirm your final finished patch size, then scale your artwork to those exact dimensions
2. Check all text against the minimum text‑height rule
3. Remove gradients and drop‑shadows if ordering embroidered, woven or PVC patches
4. Delete hidden background layers. Use a transparent background for PNG files
5. Convert fonts to outlines if sending vector files
6. Add written color instructions, Pantone references, or a color‑reference preview image
7. Save one final preview copy of your finished design for your own records

6. What Happens After You Send Your Artwork

Once your files arrive, the supplier’s design team reviews your submission.

• Clean vector files move quickly to digital mock‑up creation
• Low‑quality raster files or unclear sketches trigger artwork revision requests, adding waiting time to your production schedule
• You will receive a digital proof mock‑up for final visual approval. No manufacturing starts until you approve the mock‑up. Carefully check colors, spelling, text readability, proportions, and size before giving approval. This is your final chance to fix artwork errors.

7. Most Common Artwork Mistakes To Avoid

Using Tiny Text On Small‑Sized Patches

A beautiful‑looking logo on your computer screen will turn into an unreadable smudge when shrunk down to a 2‑inch hat patch.

Adding Gradients To Embroidered Designs

Expecting smooth fade effects on embroidered patches always leads to disappointment. Switch to sublimation if gradients are essential for your design.

Sending Low‑Resolution Web‑Sourced Images

Blurry source images cannot magically become sharp finished patches. The supplier can only work with the detail present in your original artwork.

Ignoring Border Safety Margins

Graphics placed too near the outer edge risk being cut‑off or covered by the merrow stitching.

Approving The Mock‑Up Without Carefully Reading Text

Spelling mistakes are permanent once mass‑production begins. Double‑check every word, name, and number.

Final Thoughts

High‑quality artwork is the foundation of every successful custom patch project. Vector‑format files are always the best starting point, while high‑resolution 300‑DPI images serve as a solid backup option. Always respect minimum text‑height and line‑thickness limits, and understand whether your chosen patch material can reproduce gradients, shadows, and fine detail. By preparing clean artwork, reviewing your digital mock‑up thoroughly, and communicating your color expectations clearly, you will avoid nearly all common pre‑production artwork problems and receive custom‑made patches that perfectly match your creative vision.

FAQ

Q: What is the best file format for custom patch artwork?

A: Vector files such as AI, EPS, SVG, or vector PDF are the highest‑quality, preferred formats for patch production.

Q: Can I make an embroidered patch with gradient colors?

A: Standard embroidery cannot create smooth color gradients. Choose sublimation printed patches if you need fade effects or photo‑realistic color transitions.

Q: How big does text need to be on an embroidered patch?

A: For standard embroidery, text should be at least 0.24 inches tall; 3D puff embroidery requires a minimum text height of 0.31 inches.

Q: What if I only have a blurry photo or hand‑drawn sketch?

A: Most patch suppliers offer an artwork redraw service to recreate your design into clean, production‑ready vector graphics.

Q: Can production start right after I send my artwork?

A: No. Production will only begin once you review and approve your digital mock‑up proof from the supplier.
