3D Embroidered Patch Edge Guide | Merrow Border, Heat Cut, Edge Locking & Anti-Warp Standards
Most pure 3D embroidered patch failures appear on the edges, not the main pattern area. Many customizers overlook one critical rule: 3D patch borders cannot use flat embroidery border standards.
Raised foam creates thickness tension, rebound force, and edge stress. If the border type does not match the foam height, shape, and stitch tension, patches will suffer exposed foam, edge curling, warping, peeling, and washing damage. Even perfect surface texture and stereo height will be ruined by unqualified edge craftsmanship.
This exclusive pure 3D edge craft guide establishes industry matching rules for merrow borders and heat-cut edges, explains height-based edge locking standards, and eliminates all common border defects for commercial-grade 3D patches.
Custom 3D embroidered patches implements strict border matching for all pure 3D orders. We select merrow or heat-cut edges based on foam thickness and patch shape, ensuring fully locked foam, flat edges, and zero border defects for every finished patch.
Part 1: Why 3D Patch Edges Need Exclusive Craft Standards
Flat patch edges only need simple trimming and wrapping. Pure 3D patch edges face three unique structural risks:
- Exposed foam easily absorbs water and deforms during washing
- Foam rebound tension causes edge curling and warping
- Thick stereo layers create uneven stress on border stitches
Without professional edge locking technology, 3D patches gradually lose shape, fray, and collapse from the edges inward.
Part 2: Two Official 3D Border Types & Core Functions

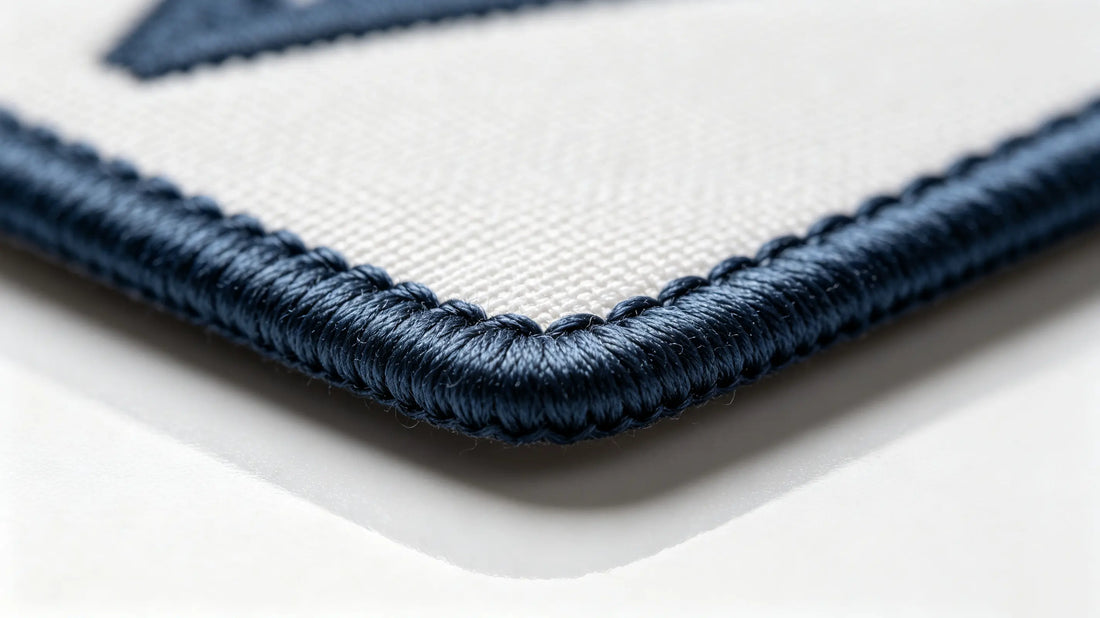

1. Merrow Border (Overlock Edge) – Premium 3D Standard
Merrow border is the only qualified edge for medium and high foam pure 3D patches.
Features:
- Dense wrapping stitches fully lock foam cross-section
- 360° anti-loose and anti-fray protection
- Strong tension to balance foam rebound force
- Completely prevents water penetration into foam layers
- Reinforces overall patch structural stability
Merrow border thickens the edge structure, making high 3D foam resistant to extrusion and washing damage.
2. Heat Cut Edge (Laser Cut) – Low-Profile 3D Standard
Heat cut edge uses high-precision laser melting to seal patch edges.
Features:
- Ultra-thin, clean, invisible border
- Preserves original design shape without thick wrapping
- Smooth flat finish for minimal style patches
- No extra border coverage on fine detailed patterns
Limitation: No physical stitch wrapping, unable to lock thick foam rebound tension.
Part 3: Foam Height + Border Matching Golden Rules
1mm Micro 3D – Heat Cut Edge Only
Low foam tension, no rebound stress. Heat cut maintains ultra-clean minimal edges without bulky wrapping.
2mm Standard 3D – Merrow Border Recommended
2mm foam has obvious rebound force. Merrow overlock locks edge foam firmly, ensuring flat shaping and long durability. This is the most commercial balanced combination.
3mm Premium 3D – Mandatory Merrow Border
Thick foam generates strong edge tension. Heat cut edges will definitely warp and expose foam. Merrow border is required for structural reinforcement.
4mm Extreme 3D – Reinforced Thick Merrow Border
Ultra-thick foam needs maximum edge locking. Factory uses widened dense merrow stitching to prevent edge deformation and layer separation.
Part 4: Shape & Border Matching Rules for Pure 3D Patches
Square & Rectangle 3D Patches
Perfectly compatible with all merrow borders. Straight edges support tight uniform wrapping, best structural stability for high foam 3D.
Round & Oval 3D Patches
Standard thin merrow border only. Overly thick merrow will distort round curvature and cause uneven edge wrapping.
Irregular & Custom Shape 3D Patches
Heat cut edge exclusive for complex curves. Merrow border cannot follow irregular tiny radian, resulting in distorted edges and shape deformation.
Part 5: 6 Most Common 3D Edge Defects & Root Causes
1. Foam Exposure Edge
Cause: Wrong heat cut edge used on 2mm+ foam
Effect: Foam absorbs water, swells, peels, and collapses after washing
2. Edge Warping & Curling
Cause: Unlocked foam rebound tension
Effect: Patch edges lift upward, cannot lay flat on garments
3. Distorted Border Shape
Cause: Merrow border forced on irregular curved shapes
Effect: Pattern edge squeezed, deformed, and asymmetrical
4. Thick Blocked Border
Cause: Over-sized merrow stitching on small mini 3D patches
Effect: Border covers design content, ruins layout proportion
5. Rough Jagged Edge
Cause: Low-precision laser cutting or manual trimming
Effect: Unprofessional rough edge, easy thread fraying
6. Edge Layer Peeling
Cause: Insufficient edge stitch density
Effect: 3D surface layer separates from foam after friction
Part 6: Professional 3D Edge Locking Craft Process
- Confirm foam height and patch shape before border production
- Select matched merrow or heat cut solution
- Strengthen edge stitch density for high foam 3D
- Trim residual floating threads and foam burrs
- Apply constant-temperature edge shaping
- Inspect edge flatness, sealing tightness and zero exposure
Part 7: Washing Durability Difference Between Two Borders
Merrow Border 3D
- Fully sealed foam cross-section
- Anti-water, anti-fray, anti-peeling
- Supports hundreds of washes
- Industrial grade durability
Heat Cut Edge 3D
- Surface sealed but no stitch reinforcement
- Suitable for low-wear decorative patches
- Not recommended for frequent washing uniforms
Part 8: 2026 Updated Pure 3D Edge Trend Standards
Modern premium pure 3D patches adopt differentiated edge craft:
- Minimal micro 3D: Ultra-thin invisible heat cut edge
- Standard commercial 3D: Slim neat merrow border
- High stereo thick 3D: Reinforced heavy merrow locking
- Complex custom shape 3D: Precision laser heat cut with edge reinforcement
Gone are the days of universal border settings. Professional factories customize edges based on every single 3D patch parameter.
Final Summary Core Rule
Pure 3D patch edge quality determines long-term stability. Low-profile 1mm micro 3D uses clean heat cut edges; 2mm–4mm standard and premium 3D must adopt merrow border locking. Matching border type with foam height and patch shape eliminates warping, foam exposure, peeling and deformation, maintaining perfect 3D stereo shape permanently.
Frequently Asked Questions
Q1: Which edge is better for 3D patches?
A: Merrow border is more durable for 2mm+ functional 3D patches; heat cut is cleaner for 1mm minimal decorative 3D.
Q2: Can thick 3D foam use heat cut edge?
A: No, thick foam rebounds strongly and will cause severe edge warping and foam exposure.
Q3: Do all irregular 3D patches need heat cut?
A: Yes, merrow borders cannot fit complex curves and will distort custom shapes.
Q4: Does merrow border affect 3D stereo look?
A: No, standard slim merrow border strengthens edge structure without ruining patch proportion.
