3D Embroidered Patch Installation Guide | Best Backing Type, Fabric Compatibility & Perfect Attachment Method
Many perfectly crafted 3D embroidered patches end up looking cheap and deformed — not because of bad embroidery quality, but because of wrong installation methods.
Unlike flat thin patches, 3D foam-raised patches have thickness, elasticity and uneven stereo surfaces. Ordinary ironing, fast pressing or improper fabric matching will cause air bubbles, foam flattening, edge gaps, warping and incomplete adhesion.
To maintain the original plump 3D effect permanently, 3D patches require exclusive backing selection, temperature control, pressure adjustment and installation steps. This professional guide explains all valid installation techniques, compatible fabrics, forbidden operations and fixable errors.
Custom 3D embroidered patches provides matched backing suggestions for every 3D patch. We recommend sew-on backing for high-raised 3D and iron-on backing for low-profile 3D to ensure the best fitting and longest service life.

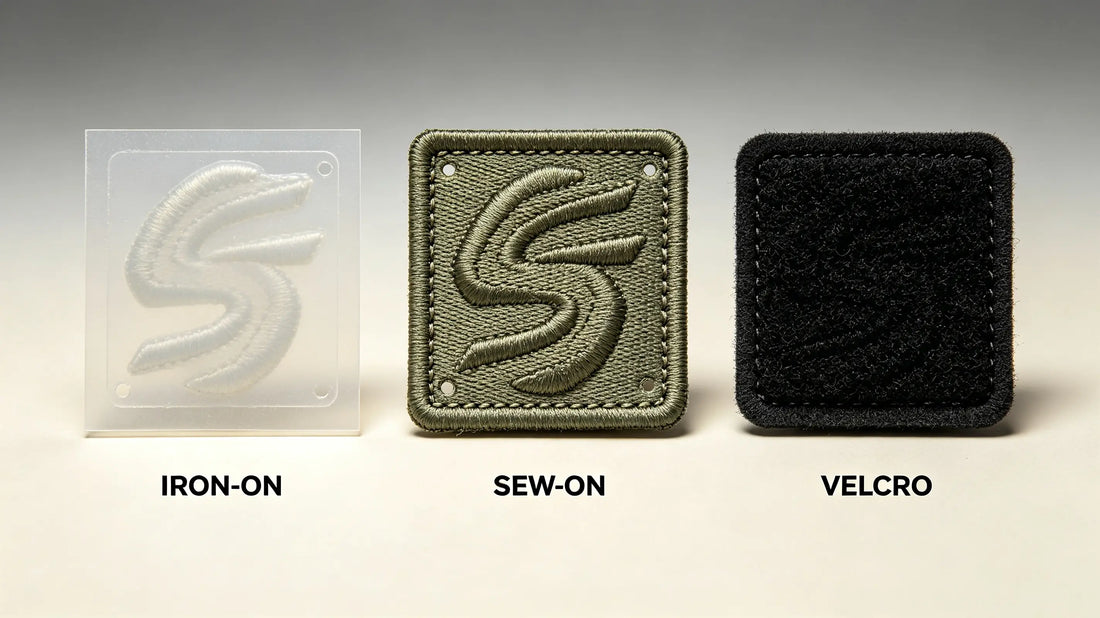

Part 1: Three Main Backing Types for 3D Patches
1. Iron-On Backing (Hot Melt Glue)
Best for 1mm–2mm low & medium 3D foam height.
- Fast installation, no sewing needed
- Full fabric coverage adhesion
- Smooth fitting effect
- Suitable for daily casual clothing
Limitation: Not recommended for 3mm–4mm high 3D foam (easy hollow center adhesion).
2. Sew-On Backing (Plain Fabric)
Universal gold standard for all high 3D patches.
- Zero foam compression during installation
- No collapse risk
- Permanent strongest fixation
- No temperature damage to foam
Advantage: Fully preserves original plump stereo texture.
3. Velcro Backing (Hook & Loop)
Best for tactical gear, removable outfits and frequent washing apparel.
- Reusable attachment
- No damage to clothing
- Easy replacement and adjustment
- Perfect for thick multi-layer 3D designs
Part 2: Fabric Compatibility Chart for 3D Patches
Fully Compatible Fabrics (100% Safe)
- Cotton fabric, cotton hoodies, t-shirts
- Denim jackets, jeans, denim vests
- Canvas bags, backpacks
- Polyester uniform fabric
- Tactical nylon fabric
Conditional Compatible Fabrics
Fleece & Soft Knit
- Only use sew-on or Velcro backing
- Iron-on easily causes uneven compression and foam flattening
Incompatible Fabrics (Strict No-Iron)
- Leather & faux leather
- Waterproof coated fabric
- Elastic spandex thin fabric
- Heat-sensitive thin mesh
These materials cannot withstand 3D patch pressing pressure and high heat.
Part 3: Step-by-Step Iron-On Installation for Low-Profile 3D Patches
Only for 1mm–2mm standard 3D foam.
Step 1: Preheat & Prep Fabric
Clean and flatten clothing surface, remove all wrinkles. Preheat iron to 150°C–160°C medium heat.
Step 2: Place Patch & Cover Protective Cloth
Position the 3D patch accurately. Place a thin cotton cover cloth to prevent direct high heat damage to stereo threads.
Step 3: Even Pressure Pressing
Press firmly with even pressure for 15–20 seconds per area.
Do not slide iron — sliding will shift foam and cause distortion.
Step 4: Edge Reinforcement Press
Focus extra pressure on patch borders, the most common lifting area for 3D patches.
Step 5: Cool Naturally
Let the patch cool completely (3–5 minutes) before touching. Cooling locks glue and prevents warping.
Part 4: Professional Sew-On Installation for High 3D Patches
For 2mm–4mm thick foam 3D patches (most recommended).
Step 1: Fix Position With Temporary Tape
Avoid pin extrusion dents on soft foam; use paper tape to fix position.
Step 2: Choose Matching Thread Color
Match border thread color with patch merrow edge for invisible premium finish.
Step 3: Perimeter Close Stitching
Stitch closely along the merrow edge, skip wide gaps.
Do not stitch through the raised foam main area to avoid collapse.
Step 4: Corner Reinforcement
Add dense triangle stitches at four corners to prevent long-term lifting.
Step 5: Trim Excess Threads
Clean all loose threads for neat finished look.
Part 5: Velcro Installation for Tactical 3D Patches
Hard Hook Side (Patch Side)
Factory pre-glued hook side maintains foam integrity without damage.
Soft Loop Side (Fabric Side)
Sew loop side firmly on gear surface to avoid peeling during outdoor activities.
Advantage
No pressure on foam, 100% original 3D texture preserved.
Part 6: Critical 3D Patch Installation Rules (Must Follow)
1. No Sliding Ironing
Sliding friction shifts foam layers, causing permanent uneven stereo surface.
2. No Overheating
Temperature over 180°C melts internal foam and collapses raised texture.
3. No Heavy Instant Pressure
Sudden heavy pressure creates indentation on soft 3D foam.
4. No Installation on Wet Fabric
Moisture causes incomplete adhesion and edge bubbling.
5. No Washing Within 24 Hours After Ironing
Glue needs full curing time to lock 3D patch shape.
Part 7: Common Installation Defects & Fixes
1. Center Bubble Hollow
Cause: Thick foam uneven pressure
Fix: Re-press center with localized even pressure under cover cloth
2. Edge Lifting
Cause: Insufficient edge pressing
Fix: Targeted edge re-heat pressing
3. Foam Flattening
Cause: Overheating or excessive pressure
Fix: Cannot fully recover; avoid over-press in future installation
4. Patch Tilted & Crooked
Cause: No pre-fix before pressing
Fix: Use tape positioning for all stereo 3D patches
Part 8: Best Backing Recommendation By 3D Foam Height
1mm Micro 3D → Iron-On (Slim & Clean)
2mm Standard 3D → Iron-On / Sew-On Dual Option
3mm Premium 3D → Sew-On Priority
4mm Extreme High 3D → Sew-On or Velcro Only
Final Summary Core Rule
Low-profile 1mm–2mm 3D patches support safe iron-on installation. High raised 3mm–4mm 3D patches must use sew-on or Velcro backing to protect foam stereo shape. Avoid overheating, sliding ironing and excessive pressure to keep 3D patches plump, bubble-free and long-lasting.
Frequently Asked Questions
Q1: Can all 3D patches be ironed on?
A: Only 1–2mm low foam 3D; high foam 3D will hollow and collapse after iron pressing.
Q2: Is sew-on better for 3D patches?
A: Yes, sewing preserves the original stereo effect without foam compression.
Q3: Will iron-on 3D patches fall off after washing?
A: Properly installed low 3D patches stay firm; high 3D iron-on easily lifts.
Q4: Can I install 3D patches on leather?
A: Only sew-on or Velcro; iron-on is forbidden for leather material.
