3D Embroidered Patch QC Standards | Factory Full Inspection, Defect Judgment & Acceptance Criteria
Many brand buyers only check patch appearance visually, but pure 3D embroidered patches require far stricter multi-dimensional quality control. Flat embroidery quality only depends on color and stitch neatness, while pure 3D quality involves stereo height accuracy, foam structural stability, stitch tension consistency, surface texture smoothness, edge sealing performance, and washing durability.
Without standardized factory QC processes, bulk 3D orders often suffer uneven height, fuzzy surfaces, hollow centers, edge warping, color deviation, and unstable stereo effects. These hidden defects do not appear immediately after production but expose after washing, friction, and long-term wearing.
This exclusive pure 3D QC quality inspection guide discloses complete factory acceptance standards, defect classification, inspection steps, and rework rules. It helps buyers accurately judge premium-grade 3D patches and avoid inferior batch products.

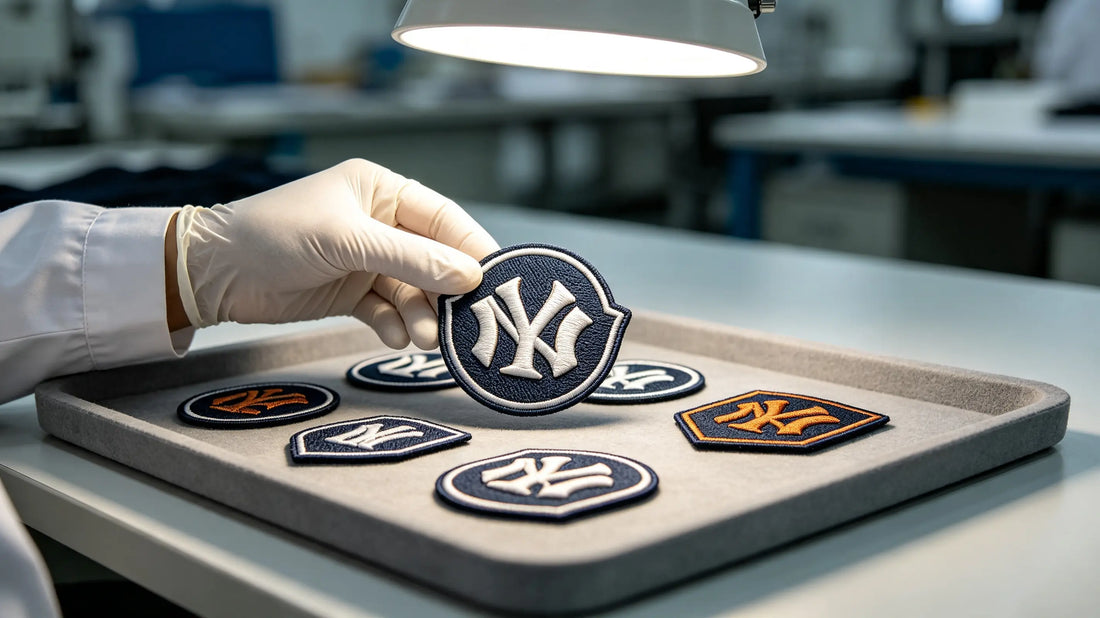

Custom 3D embroidered patches implements 100% full inspection for all pure 3D orders. Every patch passes height measurement, surface texture check, structural stability test, edge sealing inspection, and color calibration to ensure zero-defect batch delivery.
Part 1: Why Pure 3D Patches Need Independent QC Standards
Flat patches are planar and structurally stable, with low defect rate. Pure 3D embroidered patches have elastic foam core, raised stereo structure, and tension balance system, leading to unique quality risks:
- Foam rebound causes inconsistent stereo height in the same batch
- Stitch tension deviation leads to uneven surface texture
- Center and edge stress difference easily produces hollow defects
- Thermal shaping error causes local deformation
- Micro thread defects amplify on raised 3D surfaces
Visual inspection alone cannot detect hidden structural defects. Only systematic industrial QC standards can guarantee stable high-end 3D quality.
Part 2: 8 Core Full Inspection Items for Premium Pure 3D Patches
1. Stereo Height Uniformity Inspection
Qualified standard: Batch height error controlled within ±0.15mm
- 1mm/2mm standard 3D requires absolute flat height consistency
- 3mm/4mm high stereo 3D prohibits local height difference and uneven bulges
- No sunken center or raised edge abnormal height deviation
2. Surface Texture Zero-Defect Inspection
Qualified standard: Full smooth sculpted surface
- No fuzzy fibers, no floating threads, no bumpy stitching
- 100% full stitch coverage, zero exposed foam gaps
- Uniform density, consistent tightness across the entire patch
3. Stitch Tension & Density Inspection
Qualified standard: Balanced tension locking
- Stitches tightly fit foam surface without loosening
- No over-compressed flat areas or loose hollow areas
- Curved corners and detailed positions maintain uniform density
4. Color Consistency Inspection
Qualified standard: Zero batch chromatic aberration
- Uniform color saturation under professional lighting
- No color deviation between front, center and edge
- No fading, no color difference with confirmed sample
5. Edge Sealing & Border Inspection
Qualified standard: Fully locked stable edge
- Merrow border neat and symmetrical, no distortion
- Heat-cut edge smooth and burr-free
- Zero foam exposure, zero edge warping, zero curling
6. Structural Stability Squeeze Test
Qualified standard: Elastic rebound recovery
- After manual squeezing, foam rebounds instantly
- No permanent indentation, no stitch shifting
- No layer separation between embroidery and foam
7. Backing Adhesion Inspection
Qualified standard: Flat and firm fitting
- No backing bubbles, no hollow separation
- No edge peeling or uneven glue coating
- Hook & Loop and sew-on backing fully fixed without looseness
8. Washing & Rubbing Sampling Test
Qualified standard: Grade 4+ fastness performance
- No color transfer after friction test
- No deformation or loosening after simulated washing
- Stable texture and stereo layering after cycling test
Part 3: Defect Classification & Judgment Standards
Grade 1 Critical Defects (Reject Directly)
- Inconsistent stereo height and obvious sinking
- Exposed foam and unsealed edge
- Large fuzzy surface and missing stitches
- Color deviation and color bleeding
- Backing bubbles and layer separation
Grade 2 Minor Defects (Rework Required)
- Individual micro floating threads
- Slight uneven edge neatness
- Tiny local stitch density difference
- Minor trimming burrs
Grade 3 Qualified Premium (Pass All Standards)
- Uniform height, smooth texture, tight stitches
- Zero defects, perfect edge sealing
- Consistent color and stable structure
- Pass all durability sampling tests
Part 4: Height-Based QC Differentiated Standards
1mm Micro 3D QC Focus
Ultra-high precision surface smoothness, zero burrs, consistent micro stitch density. Strict color uniformity for delicate mini patterns.
2mm Standard 3D QC Focus (Most Strict Commercial Standard)
Balance of height, texture, tension and color. Full zero-defect requirement for bulk apparel and hat orders.
3mm Premium 3D QC Focus
Center structural stability, anti-sinking inspection, edge reinforcement tightness, and stereo layering clarity.
4mm Extreme 3D QC Focus
Overall structural firmness, anti-deformation ability, heavy-duty stitch locking, and rebound stability.
Part 5: Batch Production Consistency Control Rules
To ensure uniform quality for large orders:
- Lock all machine parameters before mass production
- Confirm sample height, color and texture as unified benchmark
- Inspect first 5 pieces to calibrate machine status
- Random sampling every 30 pieces during production
- Full inspection one by one after production completion
- Unified temperature shaping for whole batch final finishing
Part 6: Common Hidden Defects That Visual Inspection Misses
- Micro-loose stitches that loosen after washing
- Slight height difference invisible to naked eye
- Unbalanced edge tension causing later warping
- Inconsistent internal foam density
- Low fastness thread that fades after friction
Only professional multi-dimensional QC can eliminate hidden long-term defects.
Part 7: Premium Factory Finishing & Final Polishing
Before delivery, all qualified pure 3D patches go through three final processes:
- Full manual thread trimming
- Constant temperature secondary shaping
- Uniform batch color sorting
Guarantee every patch presents consistent high-end sculpted 3D effect.
Part 8: 2026 Updated Pure 3D QC Upgrade Standard
New industry standard adds 3D stereo light and shadow inspection:
Unified shadow layering under standard light source to ensure consistent three-dimensional visual effect of all patches in the batch, solving the problem of different stereo perception caused by subtle stitch differences.
Final Summary Core Rule
Pure 3D patch quality is determined by systematic QC inspection rather than simple visual viewing. Premium 3D patches require full inspection on height uniformity, surface texture, stitch tension, edge sealing, color consistency, and structural stability. Strict defect classification and batch consistency control ensure stable, durable, zero-defect commercial-grade 3D embroidery quality.
Frequently Asked Questions
Q1: Why do bulk 3D patches have different stereo heights?
A: Factory did not lock machine parameters and lacked height sampling inspection during production.
Q2: What is the most common hidden defect of low-grade 3D patches?
A: Unbalanced stitch tension, which causes foam sinking and loosening after washing.
Q3: Can minor fuzzy threads be repaired?
A: Yes, qualified factories complete full manual trimming and finishing before delivery.
Q4: How to judge high-quality pure 3D patches quickly?
A: Uniform height, smooth compact surface, firm rebound, clean edge sealing, and consistent color.
