3D Embroidered Patch Size & Proportion Guide | Standard Sizing Rules, Visual Balance & Scalable Design Standards
Most custom 3D patch failures are not caused by craft defects but by incorrect size and proportion matching. Many buyers simply set sizes based on personal preference without considering the unique stereo characteristics of pure 3D embroidery.
Flat patches tolerate arbitrary size changes because they lie flat and lightweight. Pure 3D patches have foam thickness, stereo volume, and physical bulging tension. An extra 1–2cm in size will cause obvious bulging, stiff fitting, and exaggerated visual volume. Conversely, an undersized patch cannot display 3D layering, resulting in flat, ineffective texture that wastes stereo craft.
This exclusive industrial 3D size and proportion guide establishes position-based standard sizing, visual correction rules, and scalable design principles. It helps brands customize perfectly balanced 3D patches with natural stereo presence, no awkward bulk, and professional visual hierarchy for every garment position.
Custom 3D embroidered patches provides professional size proportion calibration for all pure 3D orders. We adjust patch dimension, border width, internal pattern scaling, and stereo thickness according to installation position, ensuring the most harmonious, high-end visual balance for every customized 3D patch.
Part 1: Why 3D Patches Require Strict Size & Proportion Control
Flat embroidery is two-dimensional and lightweight, so size deviation only affects visual size. Pure 3D patches have three unique physical attributes that demand precise sizing:
First, 3D foam has volume expansion. Larger patches carry heavier foam volume, easily causing unnatural bulging and garment wrinkling.
Second, 3D stereo shadow changes with size. Improper proportion destroys shadow layering and three-dimensional sense.
Third, large-area 3D foam has uneven rebound tension, leading to warping and deformation if proportion is unbalanced.
Without professional scaling correction, even perfect craft patches will look low-grade and visually awkward.

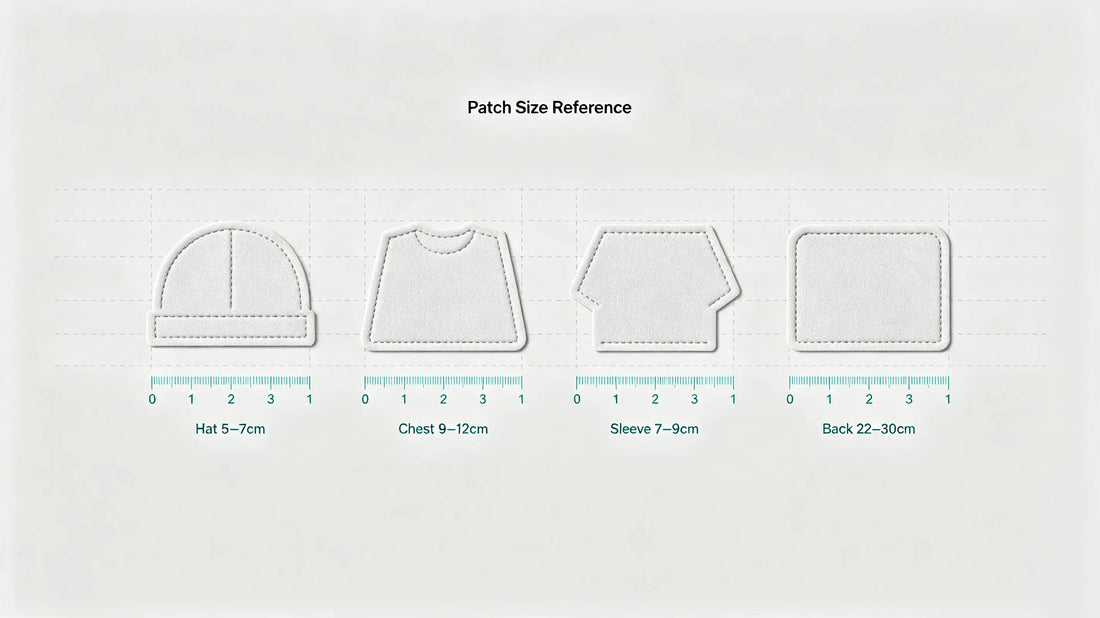

Part 2: Industry Standard 3D Patch Sizing By Wearing Position
1. Hat Front 3D Patches (Most Restricted Size)
Standard Size Range: 5cm–7cm
Core Rule: Never exceed 7.5cm width
Visual Standard: Fits hat panel proportion without edge extrusion
Feature: Small delicate stereo effect, no forehead compression, natural curved fitting
2. Chest Position 3D Patches
Standard Size Range: 8cm–11cm
Core Rule: Center balanced, moderate volume presence
Visual Standard: Visible but not overwhelming, suitable for logo and brand emblem display
Feature: Best stereo viewing distance, most commercial balanced proportion
3. Sleeve & Shoulder 3D Patches
Standard Size Range: 6cm–9cm
Core Rule: Avoid crossing seam lines, match arm curvature
Visual Standard: Neat and compact, no dragging or sagging
Feature: Flexible size adaptation according to sleeve width
4. Jacket Back Large 3D Patches
Standard Size Range: 15cm–25cm
Core Rule: Maintain proportional margin, avoid full coverage squeezing
Visual Standard: Grand layered stereo effect, strong visual impact
Feature: Requires reinforced center stitching to support large foam area
5. Collar & Cuff Mini 3D Patches
Standard Size Range: 2cm–4.5cm
Core Rule: Ultra-fine proportion control, no pattern distortion
Visual Standard: Delicate low-profile stereo texture
Feature: Strict micro-scaling to protect tiny details
Part 3: 3D Exclusive Visual Proportion Correction Rules
Flat design proportion cannot be directly used for 3D production. Pure 3D requires stereo visual correction:
1. Border Proportion Correction
Large 3D patches: Slightly widened border to balance bulk volume
Small mini 3D patches: Ultra-thin invisible border to avoid pattern squeezing
2. Internal Pattern Scaling Correction
3D stereo swelling visually enlarges patterns. Professional factories slightly shrink internal graphics and text by 3–5% to offset foam bulging visual error, ensuring consistent proportion with original design.
3. Blank Margin Balance Rule
3D patches require larger blank margins than flat patches. Sufficient empty space highlights stereo layering and prevents crowded, messy visual effects.
Part 4: Height & Size Matching Golden Rules
Small Size (2–5cm) – Max 1–2mm Foam
Oversized height on tiny patches causes balloon bulging and severe proportion imbalance. Low foam retains delicate precision.
Standard Size (5–12cm) – 2–3mm Foam
Most versatile matching, balanced volume and stereo sense, perfect for daily commercial customization.
Large Size (12cm+) – 3–4mm Reinforced Foam
Large area needs higher stereo height to avoid flat visual weakness, with reinforced structural stitching to prevent sagging.
Part 5: 4 Common Size & Proportion Defects & Fixes
1. Over-Bulky Awkward Volume
Cause: Excessive size + excessive foam height
Fix: Reduce overall dimension or lower foam thickness, balance visual volume
2. Weak Invisible Stereo Effect
Cause: Too small size + insufficient foam height
Fix: Moderate size enlargement or height upgrade to restore layering
3. Crowded Messy Pattern
Cause: No margin reserved, direct flat design scaling
Fix: Reserve 8–12% blank margin, shrink internal pattern appropriately
4. Unbalanced Left-Right Visual Weight
Cause: Asymmetric pattern without stereo correction
Fix: Manual visual balance calibration for 3D shadow offset
Part 6: Scalable 3D Design Standard for Bulk Orders
For multi-size matching orders (hat + chest + sleeve unified logo):
- Unified core pattern proportion
- Graded foam height according to patch size
- Adjust border thickness dynamically
- Fine-tune stitch density for different dimensions
- Ensure consistent stereo visual perception across all sizes
Part 7: Visual Hierarchy Design Principles for Premium 3D
High-end brand 3D patches follow strict visual hierarchy:
Large back patches: Strong impact, deep stereo layering
Chest main logos: Moderate presence, precise detail performance
Auxiliary mini logos: Low-profile delicate texture, unified brand tone
This layered sizing system improves overall apparel grade and brand recognition.
Part 8: 2026 Updated 3D Proportion Trend
Modern premium 3D customization adopts minimal volume proportion standard:
Slightly reduced overall size + optimized margin layout + precise height matching
Abandon exaggerated bulky 3D volume, pursue sophisticated, slim, high-texture stereo effect, more suitable for modern streetwear, tactical minimalism and high-end merch style.
Final Summary Core Rule
Pure 3D patch quality relies on scientific size and proportion matching rather than random dimension setting. Different wearing positions have fixed standard size ranges, and stereo foam height must scale with patch dimension. Professional visual correction eliminates bulky awkwardness and weak flat effects, achieving balanced, high-grade three-dimensional visual performance for all custom 3D patches.
Frequently Asked Questions
Q1: Can 3D patches be made in any random size?
A: No, 3D foam volume and tension restrict size range; random sizes cause bulging, deformation and proportion imbalance.
Q2: What is the best size for hat 3D patches?
A: 5–7cm is the most standard, natural and balanced proportion for hat front panels.
Q3: Why does the same logo look bigger in 3D than flat?
A: Foam bulging and shadow expansion produce visual enlargement, requiring 3–5% pattern shrink correction.
Q4: Can large back 3D patches use thin foam?
A: No, oversized area with low height will look flat and lack stereo hierarchy.
