3D Embroidered Patch Standard Size Guide | Industry Sizes, Placement Rules & Scene Matching Chart
Most customers ignore a critical fact: 3D embroidered patches visually look 15–20% larger than flat patches.
The raised foam structure creates thickness, shadow and stereo expansion effect. If you use traditional flat patch sizes for 3D designs, your patches will look oversized, bulky, crowded, and ruin garment proportions. Too small, and the 3D stereo texture disappears completely with no layering effect.
This exclusive 3D-specific size guide establishes official industry standard dimensions for every placement scenario. It solves awkward sizing problems and ensures your 3D patches always look high-end, proportional and well-fitted.
Custom 3D embroidered patches provides professional size suggestion for all 3D orders. We adjust dimensions according to foam height, patch shape and wearing position to avoid bloated or invisible stereo effects.
Part 1: Why 3D Patches Need Different Size Standards Than Flat Patches
1. Visual Expansion Effect
Foam thickness creates shadow gaps, making 3D patches visually larger than their actual measured size. Flat patch sizes are too big for 3D application.
2. Texture Occupies Space
Raised stitches and stereo layers occupy visual field, requiring cleaner margin space around the design.
3. Structural Bulk Restriction
Oversized 3D patches become heavy and easy to deform; undersized 3D cannot display foam layering.
4. Curved Surface Adaptation
Hats, sleeves and shoulders are curved surfaces. 3D patches have rigid thickness, requiring stricter size limits to avoid warping.

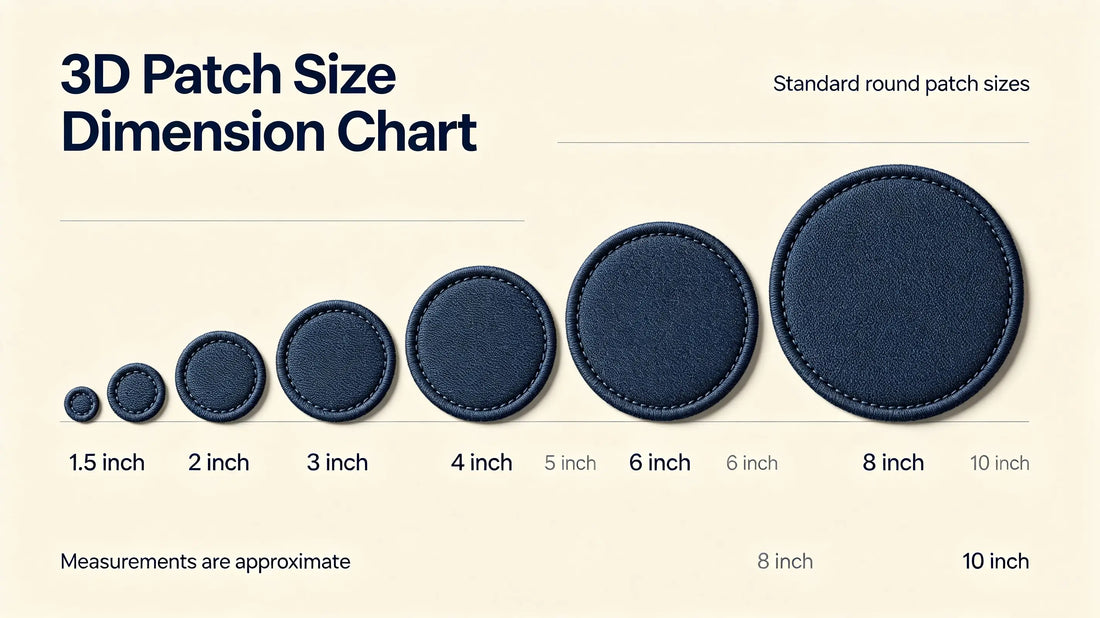

Part 2: Universal Industry Standard 3D Patch Size Library
Mini Size (1.5” – 2.0 inches)
- Best foam: 1mm micro 3D only
- Features: Delicate, low-profile, subtle stereo texture
- Suitable for: Tiny logos, brand icons, minimalist marks
- Restriction: Cannot use 2mm+ foam (easily collapses)
Standard Hat Size (1.75” – 2.25 inches)
- Industry universal hat standard
- Balanced curvature fit, no edge lifting
- Perfect for front hat panel display
- Most popular size for tactical & streetwear hat patches
Chest Standard Size (2.5” – 3.0 inches)
- Official uniform & casual jacket chest standard
- Neat, formal, not bloated
- Enough space to display 2mm standard 3D layering
Sleeve & Shoulder Size (3.0” – 4.0 inches)
- Wider layout for arm curvature
- Sufficient area for mascots, logos and icons
- Supports 2mm–3mm foam height
Large Decorative Size (4.0” – 6.0 inches)
- For front jacket large graphics, side chest artwork
- Full stereo layering performance
- Supports multi-layer 3D sculpting
Oversized Back Patch Size (7.0” – 10.0 inches)
- Exclusive for hoodie & jacket back panel
- Maximum stereo visual impact
- Supports 3mm–4mm extreme high foam
- Main decorative focal point of apparel
Part 3: Precise Placement Size Matching Rules
Hat 3D Patch Rule (Strict 1.75” Gold Size)
1.75 inches is the universal safest size for all curved hat panels.
- 1.5” = too small, 3D effect weak
- 2.0”+ = too large, edge warps on hat curve
- Best foam: 1mm–2mm
Left Chest 3D Patch Rule (2.75” Standard)
2.75 inches is the most balanced formal size for uniforms, corporate wear and daily jackets.
- Clean professional proportion
- No bulky feeling on thin fabric
- Fully displays standard 2mm 3D texture
Sleeve 3D Patch Rule (3.5” Average)
Sleeves have vertical and horizontal curvature, limiting patch width.
3.0–3.5 inches delivers perfect wrapping effect without corner lifting.
Shoulder Epaulet 3D Patch Rule (2.0”–2.5”)
Smaller size avoids shoulder folding extrusion, protects 3D foam from collapse.
Full Back 3D Patch Rule (8.0” Gold Standard)
8 inches is the most popular back patch size for streetwear.
- Large enough for full 3D layering
- Not too heavy or saggy
- Compatible with all hoodie & jacket sizes
Part 4: Size Limitations By 3D Foam Height
1mm Micro 3D
Minimum size: 1.5 inches
Maximum size: Unlimited
Full size flexibility, safest for mini logos and tiny details
2mm Standard 3D
Minimum size: 2.0 inches
Best range: 2.5”–6”
Most versatile size window for all daily patches
3mm Premium 3D
Minimum size: 3.0 inches
Cannot be used below 3 inches (easy hollow collapse)
Best for large icons, mascots and artwork
4mm Extreme 3D
Minimum size: 5.0 inches
Only for large-area solid patterns
Small sizes will lose all stereo definition
Part 5: Shape & Size Proportion Rules
Round 3D Patches
Require 0.25” larger than square patches to maintain visual balance.
Round shapes have less effective design area, needing slightly bigger dimensions.
Shield & Irregular 3D Patches
Must limit maximum size below 6 inches.
Oversized irregular 3D patches easily deform and warp.
Square & Rectangle 3D Patches
Most stable shape, supports all sizes up to 10 inches and maximum foam height.
Part 6: Common Size Mistakes & Visual Consequences
1. Oversized 3D on Hats
Result: Edge warping, corner lifting, foam extrusion, unnatural bulging
2. Undersized 3D Logo
Result: 3D texture invisible, looks flat and wasted upgrade cost
3. High Foam on Small Size
Result: Severe center collapse, hollow surface, unprofessional defects
4. Too Large Back 3D Patch
Result: Heavy sagging fabric, easy folding deformation after wearing
5. Mismatched Proportion Between Border & Design
Result: Too thick merrow border squeezes small design content
Part 7: Size Matching For Different Garment Types
Thin T-Shirt & Thin Fabric
Max size 3 inches, max foam 2mm
Avoid bulky foreign body feeling
Thick Jacket & Denim
3–6 inches, supports 3mm high 3D
Thick fabric bears stereo weight perfectly
Tactical Vest & Outdoor Gear
2.5–4 inches standard size
Balanced tactical visual style
Streetwear Hoodie Back
7–9 inches oversized 3D
Strong fashion stereo impact
Part 8: Bulk Order Uniform Size Consistency Standard
For team, school, company uniform orders:
- Strict unified inch size for every patch
- Unified foam height matching size
- Unified border width proportion
- Unified design zoom ratio
Inconsistent sizes cause uneven visual layering on team apparel.
Final Summary Core Rule
1.75” for hats, 2.75” for chest, 3.5” for sleeves, 8” for back patches are the gold standard for 3D embroidery. Always match larger foam height with larger patch sizes, and avoid oversized curved-surface patches. Correct size guarantees natural, high-end stereo effect without collapse, warping or awkward proportions.
Frequently Asked Questions
Q1: What is the most popular 3D patch size?
A: 2.75 inch chest size and 1.75 inch hat size are the best-selling standard sizes.
Q2: Can I make 3mm 3D patches under 3 inches?
A: Not recommended, small size + thick foam causes severe collapse.
Q3: Are 3D patch sizes different from flat patches?
A: Yes, 3D patches need slightly smaller dimensions due to visual expansion.
Q4: What size is best for 3D back patches?
A: 8 inches is the most balanced and fashionable standard back size.
