3D Embroidered Patch Thread Guide | Best Thread Grade, Twist Density, Color Fastness & Anti-Fuzz Standards
Most customers focus only on foam height and stitch style when customizing 3D embroidered patches, but thread quality is the hidden core that determines final patch grade. Foam creates thickness, while embroidery thread locks shape, smooths surface texture, and guarantees long-term durability.
Pure 3D embroidery is fundamentally different from flat embroidery. It wraps raised elastic foam that constantly generates rebound tension. Ordinary low-quality threads cannot sustain tight compression, resulting in fuzzy surfaces, loose stitches, foam sinking, and rapid color fading after washing. Only industrial-standard high-twist threads can maintain the plump, sculpted stereo effect that defines premium 3D patches.
This exclusive pure 3D thread guide breaks down official thread classifications, twist grading, color fastness standards, foam height matching rules, and common thread-caused defects. It helps you identify high-end 3D patches and avoid low-grade factory replacements.
Custom 3D embroidered patches adopts 1200+ twist grade-A polyester thread for all pure 3D orders. Every patch is produced with tension calibration and color fastness testing to ensure zero fuzz, zero fading, and stable stereo texture for years of use.
Part 1: Why Pure 3D Embroidery Requires Special Thread Standards
Flat embroidery threads only need softness and basic coloring performance, as they attach to fixed flat fabric without continuous pressure. Pure 3D threads must resist persistent foam rebound, friction, and repeated washing.
Qualified 3D embroidery thread must satisfy three non-negotiable industrial attributes:
1. Ultra-High Tension Resistance
Prevents stitch loosening, foam sinking, and surface deformation under long-term compression.
2. High Twist Compact Fiber Structure
Eliminates surface fluffing, ensures smooth sculpted texture, and improves stitch uniformity.
3. Grade-A Color Fastness
Resists washing fading, UV dulling, sweat discoloration, and fabric color transfer.
Low-grade threads will destroy 3D patch quality even with top-tier foam material.
Part 2: Valid Thread Types for Pure 3D Embroidered Patches
1. High-Twist Polyester Thread (Industry Standard #1)
This is the only mainstream qualified thread for all formal pure 3D embroidered patches.
- Compact 1200–1500 twist structure with zero loose fiber
- Strong tensile tension to lock foam shape firmly
- High temperature resistance for heat pressing finishing
- Level 4–5 color fastness for long-term wash durability
- Matte smooth finish that enhances 3D stereo layering
Best for: 2mm, 3mm, 4mm standard and premium pure 3D patches, uniforms, streetwear, outdoor gear, bulk long-term orders.
2. Rayon Thread (Only for 1mm Micro 3D)
Rayon thread has bright luster but weak tension and poor compression resistance. It cannot withstand foam rebound pressure on medium and high 3D foam. Only allowed for ultra-thin 1mm low-profile micro 3D patches with minimal structural pressure. Not recommended for commercial high-grade 3D production.
3. Metallic Thread (Border Accent Only)
Metallic thread features reflective highlight effects but lacks elasticity and toughness. It is strictly limited to outline borders and tiny decorative accents on pure 3D patches. Full-area metallic filling is forbidden, as it causes stitch breakage, uneven compression, and foam collapse.

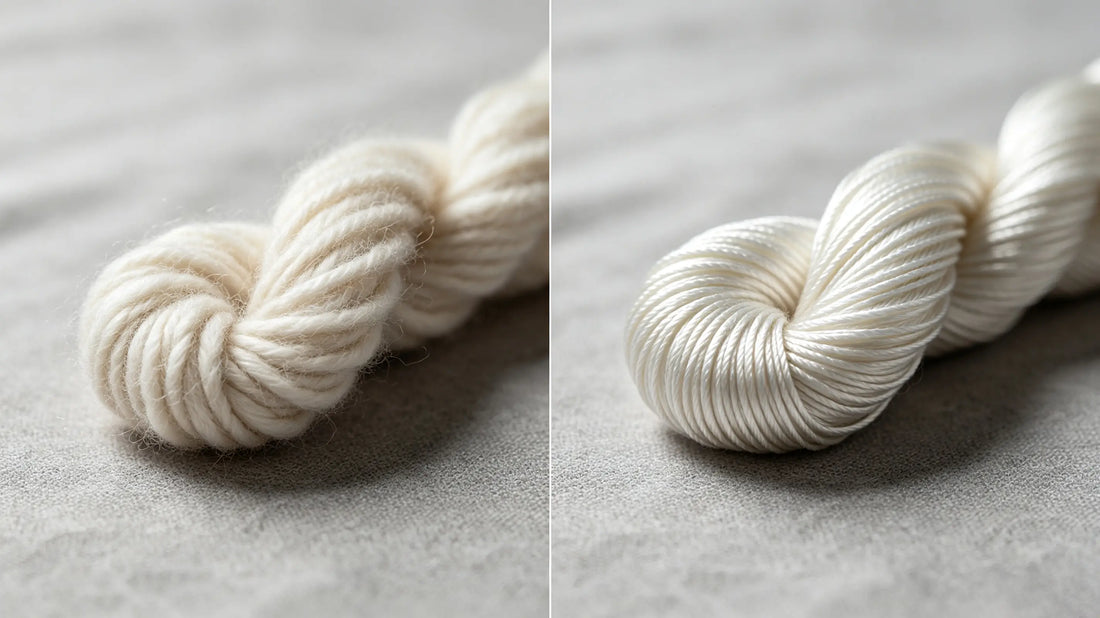

Part 3: Industrial Twist Grade Classification for 3D Threads
Thread twist grade is the key difference between premium and cheap 3D texture.
Low Twist (Below 800 Twist) – Inferior Grade
Loose fiber arrangement, easy surface fluffing, poor tension control. Patches appear fuzzy, bumpy, and unpolished after production and washing. Most low-cost 3D patches use this thread.
Medium Twist (800–1100 Twist) – Commercial Basic Grade
Stable for flat embroidery but insufficient for thick 3D foam. Slight loosening and texture dulling occurs after multiple washes.
High Twist (1200–1500 Twist) – Premium Pure 3D Gold Grade
Ultra-compact fiber structure, consistent stitch tightness, perfect anti-fuzz performance. Locks foam rebound completely and maintains sculpted texture permanently. This is the official standard for all high-end pure 3D embroidered patches.
Part 4: Color Fastness Standards for Premium 3D Patches
Top-grade pure 3D patches must pass four major level-4 professional fastness tests:
- Washing Fastness: No color loss or bleeding after repeated cold water cycles
- Rubbing Fastness: No color transfer under daily surface friction
- UV Fastness: Resists sunlight exposure and long-term dulling
- Sweat Fastness: Stable color tone after body contact and outdoor wearing
Inferior 3D patches only reach level 2–3 fastness, fading drastically within months.
Part 5: Thread Density & Tension Matching by 3D Foam Height
1mm Micro 3D
Medium standard density, calibrated mild tension. Focuses on delicate smoothness without bulky compression.
2mm Standard 3D (Most Versatile)
100% full coverage density + balanced max tension locking. Creates the smoothest, most wearable sculpted 3D texture for all scenarios.
3mm Premium 3D
Reinforced dense stitching and increased thread tension. Prevents thick foam rebound from forming hollow centers or uneven bulges.
4mm Extreme High 3D
Multi-layer reinforced stitching + heavy-duty high-twist thread. Stabilizes ultra-thick foam to avoid collapse and long-term deformation.
Part 6: Common Thread-Caused 3D Defects & Solutions
1. Fuzzy Patch Surface
Cause: Low-twist loose thread, insufficient manual trimming
Fix: Replace with 1200+ high-twist polyester thread and full post-production trimming
2. Foam Sinking & Hollow Center
Cause: Low thread tension unable to resist foam rebound
Fix: Increase machine tension and reinforce center stitching density
3. Uneven Patch Coloring
Cause: Mixed thread batches and inconsistent dyeing grade
Fix: Unified batch grade-A thread for full order production
4. Fast Fading & Dulling
Cause: Low color fastness thread material
Fix: Adopt level 4–5 UV and wash-resistant professional thread
5. Loose Floating Stitches
Cause: Poor thread tension calibration and incomplete trimming
Fix: Precision machine tension adjustment and manual finishing
Part 7: 3 Second Premium Thread Quality Inspection Method
- Visual Check: Close-up surface shows zero fluff, neat compact stitch arrangement
- Tactile Check: Firm solid texture, no loose fibers or bumpy stitching
- Stability Test: Squeeze foam firmly, stitches stay tight without shifting or lifting
Part 8: 2026 Updated Pure 3D Thread Trend Standard
Modern premium pure 3D embroidery has fully upgraded to matte high-twist polyester thread. Glossy reflective threads are gradually eliminated, as matte texture delivers deeper stereo layering, more sophisticated styling, and higher commercial grade for streetwear, tactical gear, and brand merch.
Final Summary Core Rule
Pure 3D embroidered patch quality depends primarily on high-twist grade-A polyester thread. High tension, compact twist structure, and industrial color fastness guarantee smooth texture, stable foam locking, and long service life. Foam height builds thickness, while premium thread builds true high-end 3D sculpted quality.
Frequently Asked Questions
Q1: What is the best thread for pure 3D embroidered patches?
A: 1200+ high-twist grade-A matte polyester thread is the exclusive industry standard for premium pure 3D patches.
Q2: Why do my 3D patches turn fuzzy after washing?
A: Factories use low-twist inferior thread with loose fiber structure that fluffs under friction and washing.
Q3: Can metallic thread be used for full 3D filling?
A: No, metallic thread lacks elasticity and will cause stitch breakage and foam collapse; only border accents are allowed.
Q4: Does thread quality affect 3D patch durability?
A: Yes, low-grade thread tension directly causes loosening, sinking, and permanent 3D deformation.
