Custom 3D Embroidered Patches for Military, Tactical Gear & Law Enforcement | Design Standards, Durability & Application Guide

Tactical, military and law enforcement environments demand reliable, functional insignia that can withstand long hours of field activity, variable weather and constant friction. Teams often choose direct flat embroidery, heat transfer prints, rigid PVC patches and metal badges. However, 3D Embroidered Patches have become a favoured high-performance option for tactical branding and morale wear.

The core craft of tactical-grade 3D Embroidered Patches relies on foam stereo construction: high-tensile polyester embroidery threads fully wrap closed-cell EVA foam bonded to polyester twill base fabric, creating stable three-dimensional raised texture. Flat embroidery lacks recognisable depth; hard PVC patches stiffen and crack after repeated bending; metal badges scratch equipment and create unwanted noise during movement. Foam-based 3D Embroidered Patches remain flexible, quiet and visually distinct, engineered for outdoor and field use.

Tactical equipment faces continuous abrasion, temperature changes, rain, UV radiation and heavy contact. Low-quality patches suffer crushed foam, loose threads, exposed foam borders and fading. This professional guide focuses entirely on foam-based 3D Embroidered Patches for tactical applications, clearly distinguishing them from flat embroidery, PVC rubber patches and metal insignia. It covers heavy-duty material selection, tactical graphic design standards, backing choices and field-ready production specifications.

Part 1: Why Tactical Users Choose 3D Embroidered Patches

1.1 Distinct Visual Recognition without Excessive Bulk

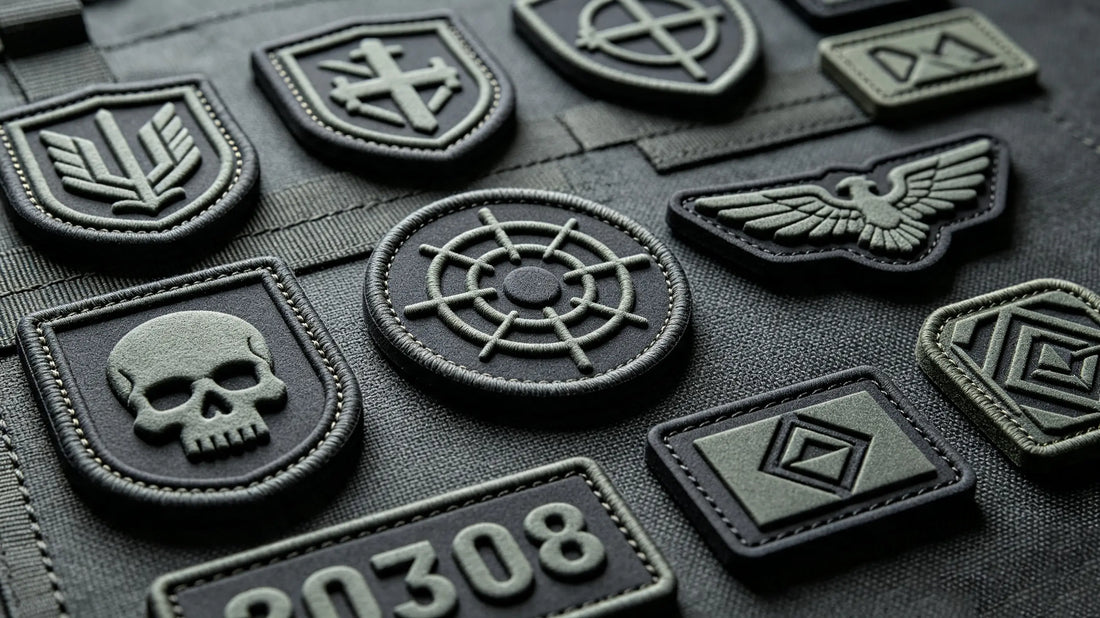

Flat embroidery easily blends into dark tactical fabrics. 3D Embroidered Patches deliver subtle but clear raised contours, making unit crests, tactical symbols and morale graphics easy to identify during team operations. Unlike thick rigid accessories, they maintain a low-profile fit on uniforms and plate carriers.

1.2 Quiet, Flexible & Field-Friendly

Metal insignia rattle during movement and can scratch protective gear. Hard PVC patches cannot flex naturally with tactical vests. Foam 3D embroidered patches bend freely with fabric, produce no noise and avoid surface abrasion on equipment.

1.3 Excellent Abrasion & UV Resistance

Premium 3D Embroidered Patches with full edge wrapping stitches and high colour fastness threads resist sunlight, light rain and continuous friction. They retain shape and colour far longer than peeling printed transfers and fraying flat embroidery.

1.4 Flexible Team Branding Solutions

Units can design layered patches for official insignia, rank markings and interchangeable morale graphics. When teams update logos or deploy new mission branding, members replace patches instead of purchasing new uniforms, cutting long-term operational costs.

1.5 Wide Compatibility with Tactical Equipment

3D Embroidered Patches attach securely to tactical uniforms, plate carriers, molle vests, backpacks, duffel bags and utility pouches. Teams can build unified visual branding sets across all personnel gear to strengthen unit identity.

Part 2: Core Design Guidelines for Tactical 3D Embroidered Patches

2.1 Simplify Overly Fine Details for Foam Embroidery

Tactical crests often contain intricate borders, small lettering and delicate symbols. Excessively thin lines cannot support stable foam wrapping embroidery.

• Minimum uppercase letter height: 6mm for 2mm foam 3D Embroidered Patches; 8mm for 3mm high-relief foam embroidery.
• Ultra-thin graphic outlines must be thickened during artwork revision to prevent incomplete stitching and foam exposure after long-term field abrasion.

2.2 Standard Sizing Reference for Tactical Patches

• Small uniform sleeve insignia patches: 4cm – 7cm
• Medium chest unit identification patches: 8cm – 12cm
• Large team banner and back panel patches: 13cm – 28cm

2.3 Color Matching Advice for Tactical Gear

Match thread colours to official unit specifications and camouflage tone requirements. Select Grade 4+ UV and wash-resistant polyester threads. Inferior threads fade rapidly under outdoor sunlight, reducing recognizability. Common tactical colour schemes include black, olive drab, coyote brown, dark grey and low-visibility muted tones.

2.4 Contour Processing Requirements

Common shapes include rectangles, rounded rectangles, shield crests, irregular custom silhouettes and flag patterns. All outer edges of 3D Embroidered Patches require continuous perimeter wrapping stitches to fully seal foam, blocking moisture and preventing foam exposure during field operations.

Part 3: Specialised Material Selection for Tactical 3D Embroidered Patches

All materials listed below are designed exclusively for foam-based 3D Embroidered Patches, not silicone patches, metal emblems or flat embroidery.

Embroidery Thread

High tenacity polyester thread with Grade 4+ UV and wash fastness. Cotton thread is not recommended for tactical gear; cotton threads fray quickly and absorb water, accelerating deterioration in damp environments.

Base Fabric

Medium-weight polyester twill. Stable twill prevents patch warping after repeated bending and abrasion, offering reliable support for dense foam wrapping stitches.

3D Relief Core: Closed-Cell EVA Foam

Medium-hardness closed-cell EVA foam is the standard material for tactical 3D Embroidered Patches. Overly soft foam compresses permanently under heavy friction; overly rigid foam reduces flexibility on tactical vests.

• 2mm foam: universal choice for sleeve insignia, chest unit patches and daily morale patches
• 3mm foam: suitable for large banner patches requiring prominent stereo depth for team branding

Backing Selection for Tactical 3D Embroidered Patches

✅ Hook & Loop Backing (Top Recommendation for Tactical Vests) Allows quick swapping of insignia and morale patches for different missions, training or deployments. Easy to remove and replace without damaging tactical fabric. The most widely used option for molle tactical gear.

✅ Sew-On Backing Maximum long-term durability for permanent uniform insignia. No adhesive failure risk, ideal for official markings that will not be frequently replaced.

⚠️ Iron-On Backing (Limited Application) Only suitable for temporary decorative patches on seldom-used textiles. Not recommended for field equipment; repeated bending and temperature variation cause adhesive separation.

Edge Finishing Options for 3D Embroidered Patches

1. Merrow Stitched Border Classic robust finish for regular-shaped tactical patches. Reinforced merrow edges resist thread fraying from constant field friction, delivering a neat professional appearance.
2. Laser Cut Edge Perfect for irregular custom silhouettes, tactical symbols and unique crest shapes. Precise laser trimming creates clean outlines. Manufacturers must add continuous foam wrapping stitches to seal all cut edges.
3. Hot Cut Edge Only fit tiny lightweight souvenir patches. Avoid hot cut edges for field tactical insignia; heat-sealed edges separate after long-term bending and outdoor exposure.

Part 4: Critical Production Requirements for Tactical 3D Embroidered Patches

Professional 3D Embroidery Digitizing

• Calibrate balanced stitch density to avoid over-compression flattening foam during friction and field use
• Mandatory full foam edge wrapping stitches to completely cover foam and block water intrusion
• Add surrounding stabilizing running stitches to minimise edge curling after long-term wear

Pre-Production Sample Confirmation

Tactical unit orders demand consistent visual identity for all personnel. Always approve physical pre-production samples before bulk manufacturing. Digital mockups cannot replicate real foam height, stitch tightness and colour accuracy. For large unit orders, complete simulated abrasion and weather testing on samples.

Batch Color Consistency Control

All 3D Embroidered Patches within one order use identical thread lots to eliminate colour variation, ensuring every team member’s gear carries matching unit insignia.

Part 5: Application & Care Tips for Tactical 3D Embroidered Patches

1. Use heavy-duty polyester sewing thread when attaching sew-on 3D Embroidered Patches to uniforms.
2. Avoid placing large rigid patches on high-flex joint areas such as shoulders and elbows.
3. Turn tactical gear inside out during cleaning to protect embroidery surfaces.
4. Adopt low-temperature air drying; high heat destroys the internal foam structure of 3D Embroidered Patches.
5. Never iron directly on raised foam embroidery surfaces.

Part 6: Common Defects of Tactical 3D Embroidered Patches & Solutions

1. Embroidery thread fades after prolonged outdoor field use

Cause: Low UV-resistant embroidery thread Solution: Specify Grade 4+ lightfast polyester thread for all tactical 3D Embroidered Patches

2. Raised foam surface becomes permanently flat

Cause: Overly soft EVA foam or over-dense stitch compression Solution: Select medium-hardness closed-cell foam and adopt balanced digitizing parameters for 3D Embroidered Patches

3. Foam exposed from patch edges after long-term use

Cause: Missing full perimeter wrapping stitches Solution: Include full foam edge wrapping requirements within formal production specifications for every 3D Embroidered Patch

4. Iron-on backed patches detach after repeated bending

Cause: Adhesive degraded by temperature changes and friction Solution: Switch to hook & loop or sew-on backing for field tactical gear

5. Patch edges curl after months of wear

Cause: Insufficient stabilizing stitches or thin base twill Solution: Upgrade to medium-weight twill and add reinforcing running stitches during digitizing

Part 7: Maintenance Guidance for Tactical Gear with 3D Embroidered Patches

• Clean uniforms and tactical vests inside out with mild detergent, use cold or lukewarm water cycles
• Avoid bleach and strong chemical cleaners that break down thread colour and foam structure
• Air dry away from direct sunlight; prohibit high-temperature tumble drying
• Do not scrub aggressively against raised embroidery areas during cleaning
• Prevent heavy stacking compression during storage to retain stereo shape

Part 8: 2026 Industry Trend for Tactical 3D Embroidered Patches

More tactical teams and law enforcement groups are replacing easily damaged printed decals and noisy metal emblems with foam-based 3D Embroidered Patches. Abrasion resistance, colour stability and interchangeable hook & loop backing become core purchasing priorities. Custom morale patches and unit identification insignia remain in high demand across global tactical communities. Small-batch custom services are widely accessible for small teams. Buyers focus on stable foam thickness and complete edge wrapping to reduce after-sales issues, and hook & loop backed patches dominate the market for molle tactical vests.

Final Summary Core Rule

Custom 3D Embroidered Patches constructed with thread-wrapped closed-cell foam deliver durable, recognisable three-dimensional insignia for tactical uniforms, plate carriers and outdoor gear, with clear advantages over flat embroidery, PVC patches and metal emblems. Hook & loop backing is the most versatile option for tactical field equipment, while sew-on backing suits permanent uniform markings. Design needs to balance detailed crest graphics and embroidery production feasibility, and production must enforce full foam edge wrapping and UV-resistant polyester thread. With standardized material selection and professional 3D embroidery digitizing, foam embroidered patches retain stereo shape and colour stability after long-term field activity and constant abrasion.

Frequently Asked Questions

Q1: Which backing is best for 3D Embroidered Patches on molle tactical vests? A: Hook & loop backing is strongly recommended for tactical vests to enable quick patch replacement; sew-on backing is suitable for permanent uniform insignia.

Q2: Can official unit crests and low-visibility tactical graphics be produced as 3D Embroidered Patches? A: Yes. Designers need to simplify ultra-thin lines and tiny text to meet foam embroidery production standards.

Q3: Are 3D Embroidered Patches suitable for humid field environments? A: Yes. With full edge wrapping stitching, quality foam 3D patches resist moisture infiltration and maintain stability under normal outdoor conditions.

Q4: What foam thickness is recommended for standard chest tactical patches? A: 2mm medium-hardness closed-cell foam offers balanced stereo texture and low profile for most chest unit patches, while 3mm foam works for large banner branding patches.
