Custom 3D Embroidered Patches for Military, Tactical Gear & Morale Insignia | Durability, Backing & Design Guide

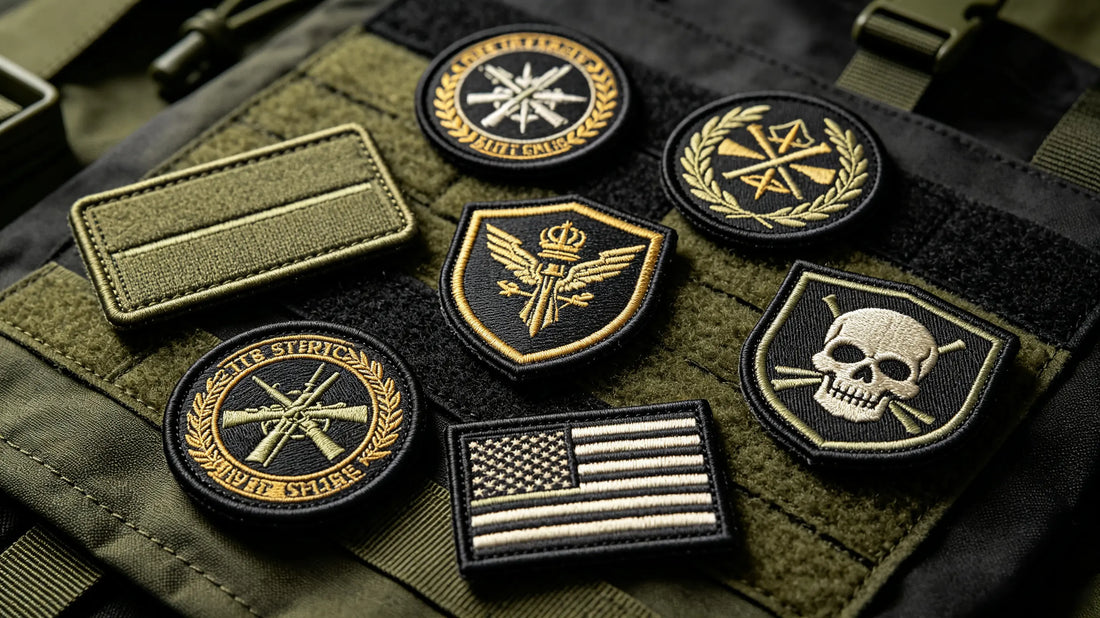

Tactical and military culture relies on visual insignia to identify units, teams, affiliations and personal morale. Tactical vests, combat uniforms, backpacks, gear pouches and range bags all serve as platforms for patches. Available options include flat embroidery, printed fabric patches, rigid PVC patches and metal emblems. Even so, 3D Embroidered Patches are growing rapidly within the tactical community, delivering striking dimensional graphics that stand out on nylon tactical textiles.

The core construction of tactical-grade 3D Embroidered Patches uses foam stereo technology: high-tensile polyester embroidery threads fully wrap closed-cell EVA foam bonded to polyester twill base fabric, forming stable three-dimensional raised texture. Flat embroidery lacks depth on dark nylon fabric; printed patches wear thin after repeated friction; hard PVC patches are stiff and produce noise during movement. Foam-based 3D Embroidered Patches remain quiet, flexible and weather-resistant, built for field use, hiking, shooting range activities and long-duration outdoor operations.

Tactical gear undergoes harsh operating conditions: continuous abrasion against equipment, UV sunlight, rain, mud and frequent packing movement. Low-quality patches suffer crushed foam, loose threads, exposed foam borders and fading after short-term field use. This professional guide focuses entirely on foam-based 3D Embroidered Patches for tactical applications, clearly distinguishing them from flat embroidery, PVC rubber patches and metal insignia. It covers outdoor-resistant material selection, tactical graphic design standards, backing choices and field-ready production specifications.

Part 1: Why Tactical Users Choose 3D Embroidered Patches

1.1 High-Visibility Dimensional Insignia

Flat embroidery often blends into dark coyote, black or olive tactical fabric. 3D Embroidered Patches create prominent raised contours, making unit crests, flags and morale graphics easily recognizable in all lighting conditions. The textured look delivers a premium tactical aesthetic popular among operators and enthusiasts.

1.2 Flexible, Low Noise for Field Operations

Metal badges clink and scratch gear surfaces. Hard PVC patches stiffen and rub loudly against nylon fabric. Foam 3D Embroidered Patches flex silently, conforming to curved vests, backpack straps and helmet padding without creating unwanted noise.

1.3 Strong Abrasion & UV Resistance

Premium 3D Embroidered Patches with full edge wrapping stitches and high lightfast threads resist fading from sunlight and withstand constant rubbing against other gear. They maintain shape and colour far longer than printed patches and lightweight flat embroidery used outdoors.

1.4 Interchangeable Design Flexibility

Most tactical users select hook & loop backing, allowing quick swapping of morale patches for training, competitions, range days or travel. Teams can maintain core unit insignia and rotate seasonal or event-specific graphics without replacing gear.

1.5 Universal Compatibility with Tactical Textiles

3D Embroidered Patches attach securely to plate carriers, backpacks, combat caps, range bags and uniform sleeves. Teams can build matching branding sets for all member equipment to strengthen unit identity.

Part 2: Core Design Guidelines for Tactical 3D Embroidered Patches

2.1 Simplify Overly Fine Details for Foam Embroidery

Tactical artwork often contains intricate crests, thin text, small symbols and delicate borders. Excessively thin lines cannot support stable foam wrapping embroidery.

• Minimum uppercase letter height: 6mm for 2mm foam 3D Embroidered Patches; 8mm for 3mm high-relief foam embroidery.
• Ultra-thin graphic outlines must be thickened during artwork revision to avoid incomplete stitching and foam exposure after long-term field abrasion.

2.2 Standard Sizing Reference for Tactical Patches

• Small pocket / cap morale patches: 3cm – 6cm
• Medium flag & sleeve insignia patches: 7cm – 12cm
• Large team crest vest patches: 13cm – 22cm

2.3 Color Matching Advice for Tactical Gear

Match thread colours to common tactical colour palettes: coyote brown, olive drab, ranger green, black, multicam tone matching, dark grey. Choose Grade 4+ UV-resistant polyester threads. Poor-quality threads fade rapidly under outdoor sunlight. Avoid overly bright colours for covert applications unless specified.

2.4 Contour Processing Requirements

Common shapes include rectangles, circles, shield crests, flag silhouettes and custom irregular tactical graphics. All outer edges of 3D Embroidered Patches require continuous perimeter wrapping stitches to fully seal foam, block moisture and prevent foam exposure in wet, muddy environments.

Part 3: Specialised Material Selection for Tactical 3D Embroidered Patches

All materials listed below are designed exclusively for foam-based 3D Embroidered Patches, not silicone patches, metal emblems or flat embroidery.

Embroidery Thread

High tenacity polyester thread with Grade 4+ UV fastness. Cotton thread is not suitable for tactical use; cotton absorbs moisture and dirt and frays quickly under field friction.

Base Fabric

Medium-weight polyester twill. Stable twill prevents patch warping after repeated bending and rubbing, offering reliable support for dense foam wrapping stitches.

3D Relief Core: Closed-Cell EVA Foam

Medium-hardness closed-cell EVA foam is standard for tactical 3D Embroidered Patches. Overly soft foam compresses permanently under gear friction; overly rigid foam reduces flexibility and creates noise.

• 2mm foam: universal choice for morale patches, sleeve insignia and cap patches
• 3mm foam: ideal for large vest crests requiring maximum stereo depth for visibility

Backing Selection for Tactical 3D Embroidered Patches

✅ Hook & Loop Backing (Top Recommendation for Tactical Gear) Allows quick interchange of patches on loop panels of vests, backpacks and helmets. Industrial-grade heat-pressed adhesive prevents delamination during field use.

✅ Sew-On Backing For permanent insignia on uniforms and gear that will not require frequent patch swapping. Highest long-term durability with no adhesive failure risk.

⚠️ Iron-On Backing (Not Recommended for Field Use) Heat, moisture and constant friction cause adhesive separation. Only acceptable for indoor display and casual non-tactical apparel.

Edge Finishing Options for 3D Embroidered Patches

1. Merrow Stitched Border Durable classic finish for regular rectangular and circular patches. Reinforced merrow edges resist thread fraying from mud and repeated abrasion, widely used for official unit insignia.
2. Laser Cut Edge Perfect for irregular custom silhouettes, flag shapes and unique morale graphics. Precise laser trimming creates sharp outlines. Manufacturers must add continuous foam wrapping stitches to seal all cut edges.
3. Hot Cut Edge Only suitable for tiny lightweight souvenir patches. Avoid hot cut edges for field tactical patches; heat-sealed edges split after prolonged friction and outdoor exposure.

Part 4: Critical Production Requirements for Tactical 3D Embroidered Patches

Professional 3D Embroidery Digitizing

• Calibrate balanced stitch density to avoid over-compression flattening foam during repeated contact with gear
• Mandatory full foam edge wrapping stitches to completely cover foam and block water intrusion
• Add surrounding stabilizing running stitches to minimise edge curling after long-term field use

Pre-Production Sample Confirmation

Unit and team orders require consistent visual identity across all gear. Always approve physical pre-production samples before bulk manufacturing. Digital mockups cannot replicate real foam height, stitch tightness and colour accuracy. For large orders, complete simulated abrasion and UV exposure testing on samples.

Batch Color Consistency Control

All 3D Embroidered Patches within one order use identical thread lots to eliminate colour variation, ensuring uniform appearance across all team equipment.

Part 5: Application & Care Tips for Tactical 3D Embroidered Patches

1. Select industrial-strength hook & loop backing for gear exposed to frequent movement and vibration.
2. Avoid placing large rigid patches on high-flex areas such as shoulder straps that undergo constant bending.
3. When cleaning tactical gear, use mild detergent and avoid harsh chemical cleaners that damage embroidery threads and foam.
4. Keep patches away from sustained high heat such as vehicle dashboard sunlight; extreme heat breaks down internal foam structure.
5. Never iron directly onto raised foam embroidery surfaces.

Part 6: Common Defects of Tactical 3D Embroidered Patches & Solutions

1. Embroidery thread fades after outdoor field use

Cause: Low UV-resistant embroidery thread Solution: Specify Grade 4+ lightfast polyester thread for all tactical 3D Embroidered Patches

2. Raised foam surface becomes permanently flat

Cause: Overly soft EVA foam or over-dense stitch compression Solution: Select medium-hardness closed-cell foam and adopt balanced digitizing parameters for 3D Embroidered Patches

3. Foam exposed from patch edges after long-term use

Cause: Missing full perimeter wrapping stitches Solution: Include full foam edge wrapping requirements within formal production specifications for every 3D Embroidered Patch

4. Hook & loop backing peels off during activity

Cause: Low-quality adhesive layer Solution: Use industrial heat-pressed hook backing, reject lightweight budget backing options

5. Patch edges curl after repeated rubbing

Cause: Insufficient stabilizing stitches or thin base twill Solution: Upgrade to medium-weight twill and add reinforcing running stitches during digitizing

Part 7: Maintenance Guidance for Tactical Gear with 3D Embroidered Patches

• Remove surface dirt and mud gently with a soft damp cloth, do not scrub aggressively on raised embroidery
• Avoid bleach, strong solvents and heavy degreasers that discolour stitching
• Store tactical gear in cool, dry locations away from continuous direct sunlight to prevent fading
• Do not stack heavy loads directly on patches during storage to preserve stereo foam shape
• Air dry naturally after exposure to rain or mud; never use high-temperature heat blowers

Part 8: 2026 Industry Trend for Tactical 3D Embroidered Patches

Tactical enthusiasts and professional teams are increasingly upgrading from flat embroidery and PVC patches to foam-based 3D Embroidered Patches. Abrasion resistance, stable hook & loop backing and uniform foam thickness become core purchasing criteria. Custom unit crests, subdued flag patches and creative morale graphics remain top sellers. Small-batch custom production is widely available for shooting teams, security groups and outdoor clubs. Hook & loop backed laser cut 3D Embroidered Patches dominate morale patch orders, while sew-on merrow styles are preferred for permanent uniform insignia. Buyers reject low-quality products with incomplete edge wrapping and easily compressed thin foam.

Final Summary Core Rule

Custom 3D Embroidered Patches constructed with thread-wrapped closed-cell foam deliver quiet, rugged three-dimensional insignia for tactical vests, backpacks and field gear, with clear advantages over flat embroidery, PVC patches and metal emblems. Hook & loop backing is ideal for interchangeable morale patches, while sew-on backing works best for permanent uniform insignia. Design must balance detailed tactical graphics and embroidery production feasibility, and production must enforce full foam edge wrapping and UV-resistant polyester thread. With standardized material selection and professional 3D embroidery digitizing, foam embroidered patches retain stereo shape and colour stability through countless training sessions, range days and outdoor field operations.

Frequently Asked Questions

Q1: Which backing is best for tactical morale 3D Embroidered Patches on plate carriers? A: Industrial-grade hook & loop backing is strongly recommended for quick interchange; sew-on backing is used for permanent unit insignia.

Q2: Can subdued low-visibility tactical graphics be manufactured as 3D Embroidered Patches? A: Yes. Designers need to thicken thin lettering and symbols to meet foam embroidery minimum dimension requirements.

Q3: Are 3D Embroidered Patches suitable for humid, muddy outdoor environments? A: Yes. Quality patches with full edge wrapping stitches prevent moisture penetration and foam degradation under typical field conditions.

Q4: What foam thickness is recommended for standard sized morale patches? A: 2mm medium-hardness closed-cell foam provides balanced lightweight depth for most morale patches; 3mm foam is selected for larger vest crest patches.
