3D Embroidered Patch Edge Craft Guide | Merrow Border, Heat Laser Cut, Sealed Edge & Anti-Fray Standards

Most customers focus on 3D stereo height and surface detail while ignoring the most critical durability component: edge finishing. For flat patches, edge craft only affects appearance neatness. For pure 3D embroidered patches, edges determine structural stability, water resistance, anti-aging performance and service life.

Pure 3D patches have exposed foam cross-sections. Unlocked edges lead to five fatal defects: thread fraying, foam exposure, moisture penetration, edge warping and local yellowing. Many low-grade 3D patches look perfect at first but fail quickly after washing and wearing simply due to incorrect edge processing.

Unlike flat patches that only have one universal edge style, pure 3D embroidery has four exclusive industrial edge systems: merrow border, laser heat cut, full sealed edge, and clean raw edge. Each edge type corresponds to specific shapes, thicknesses and usage scenarios. This professional guide standardizes all 3D edge rules, helping brands select the most stable, high-grade edge finish for every custom patch.

Custom 3D embroidered patches applies scenario-matched edge locking for all pure 3D orders. We use merrow borders for standard shapes, laser precision cutting for irregular contours, and full foam sealing for outdoor-grade patches, ensuring zero fraying, zero foam exposure and long-term edge stability.

Part 1: Why 3D Patch Edges Require Strict Industrial Locking

Flat embroidery edge is compact fabric with no internal gap. Pure 3D edge is a layered cross-section of thread + foam + backing, with three hidden risks:

1. Open foam cross-section absorbs water and air, causing oxidation yellowing
2. Unlocked boundary stitches loosen under friction, leading to edge fraying
3. Unbalanced edge tension causes curling and warping after washing and shaping

Edge craft is not decorative; it is the core structural protection of pure 3D stereo layers.

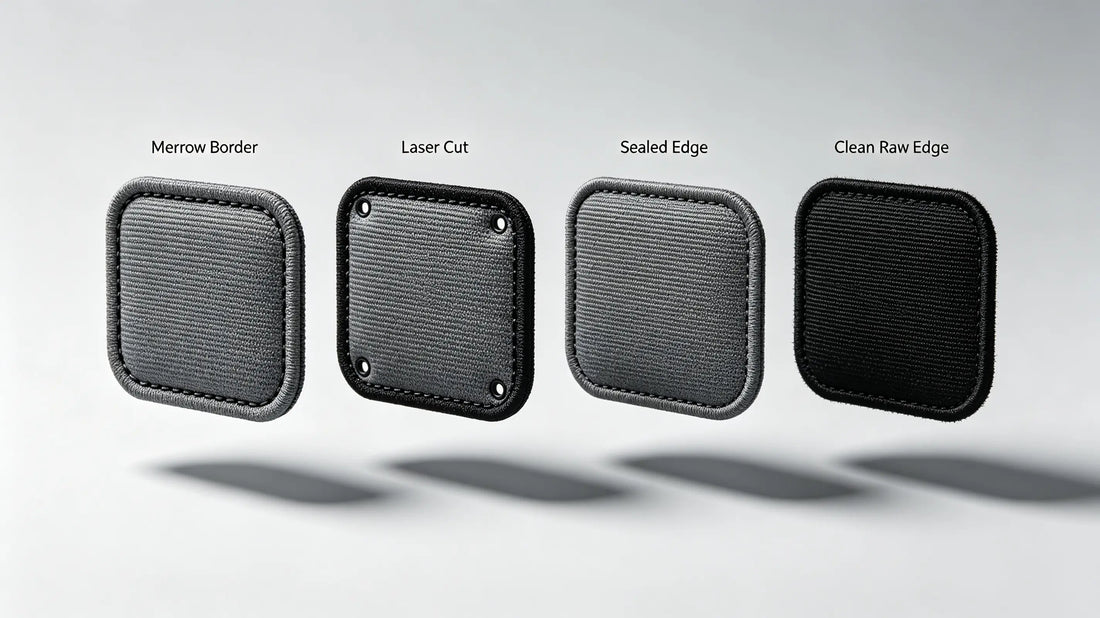

Part 2: Four Industrial 3D Patch Edge Finishing Systems

1. Merrow Border Edge (Standard Commercial Grade)

Craft Feature: Continuous overlock stitching wrapping the entire patch perimeter Advantages: Ultra-tight locking, anti-fray, strongest structural stability, wash-resistant Visual Effect: Classic thick border texture, neat and layered Best For: Square, round, regular symmetrical 3D patches, uniform apparel, daily wear patches Limit: Cannot fit complex irregular curves or tiny mini logos

2. Laser Heat Cut Edge (Precision Custom Grade)

Craft Feature: High-temperature laser instant cutting and thread melting sealing Advantages: Zero burrs, ultra-smooth contour, no shape extrusion, perfect for complex outlines Visual Effect: Slim invisible edge, high-end minimalist texture Best For: Irregular shapes, multi-curve designs, hollow logos, mini 3D patches Limit: Lower physical toughness than merrow border, not for heavy friction gear

3. Full Foam Sealed Edge (Outdoor Anti-Aging Grade)

Craft Feature: Thermal compression sealing of foam cross-section + thread double locking Advantages: Completely waterproof, airtight, anti-yellowing, anti-oxidation Visual Effect: Flat sealed edge without foam gap Best For: Outdoor exposure, tactical gear, long-term storage merch, high-grade outdoor 3D patches Limit: Extra process cost, not required for daily indoor patches

4. Clean Raw Edge (Minimalist Decorative Grade)

Craft Feature: Trimmed clean thread edge without overlock or heat melting Advantages: Ultra-thin, no border sense, highly fitted Visual Effect: Super flat minimalist fashion texture Best For: Low-profile fashion patches, inner clothing decoration Limit: Must use high-twist anti-fuzz thread, not washable for heavy cycles

Part 3: 3D Edge Selection Golden Rules By Shape

Regular Shapes (Square / Round / Oval)

Priority: Merrow border edge Reason: Stable tension, anti-warping, strongest washing durability, most commercial mature effect

Irregular & Freeform Shapes

Priority: Laser heat cut edge Reason: Merrow border will squeeze curves, distort outline and destroy custom shape; laser cutting perfectly restores original contour

Mini 2–5cm Logos

Priority: Ultra-thin laser cut edge Reason: Merrow border occupies too much proportion, squeezes tiny patterns and ruins detail clarity

Large Back 3D Patches

Priority: Merrow border + local sealed reinforcement Reason: Large area easily warps; thick merrow locking balances overall tension

Part 4: Foam Thickness & Edge Craft Matching Standards

1mm Micro 3D

Recommended: Laser cut clean edge Thin foam requires slim edge to avoid bulky border imbalance, retaining delicate low-profile texture

2mm Standard 3D

Recommended: Merrow / Laser dual optional Most flexible matching, compatible with all edge styles according to design shape

3mm Premium 3D

Recommended: Merrow border + foam sealing Thick foam cross-section needs full protection to prevent water absorption and edge aging

4mm Extreme High 3D

Recommended: Reinforced thick merrow + full perimeter sealing Super thick stereo structure has strong tension, requiring maximum edge locking stability

Part 5: 6 Common 3D Edge Defects & Professional Solutions

1. Edge Fraying & Loose Threads

Cause: No overlock locking + low-twist thread Fix: Merrow border or laser heat melting sealing

2. Foam Exposure & Edge Hollow

Cause: Untrimmed uneven foam cross-section Fix: Precise laser flat cutting + full section sealing

3. Edge Warping & Curling

Cause: Unbalanced edge tension without perimeter locking Fix: Full-loop merrow tension balancing + constant temperature shaping

4. Outline Distortion

Cause: Improper merrow border on complex curves Fix: Replace with flexible laser cutting edge

5. Edge Yellowing & Moldy

Cause: Unsealed foam absorbing moisture Fix: Industrial foam cross-section sealing treatment

6. Rough Burr Edge

Cause: Low-temperature incomplete laser cutting Fix: Secondary precision trimming and high-temperature melting finishing

Part 6: Washing & Friction Durability Comparison

• Merrow Border: 50+ wash cycles, strongest anti-friction, heavy-duty grade
• Laser Cut Edge: 20–30 wash cycles, precise but softer structure
• Sealed Edge: 40+ wash cycles + anti-aging outdoor durability
• Raw Edge: Limited hand wash only, not for machine washing

Part 7: High-End Edge Finishing Premium Process

Top-tier 3D patch orders adopt double protection edge system:

1. Laser precise shaping to ensure zero-distortion outline
2. Cross-section thermal sealing to block oxidation and moisture
3. Local micro-merrow reinforcement on stress points This triple process achieves perfect precision appearance + outdoor-grade durability.

Part 8: 2026 Updated 3D Edge Craft Trend

Current premium 3D customization mainstream is slim high-sealed edge: Abandon bulky thick merrow borders that affect stereo layering, adopt thin laser invisible edge + foam cross-section sealing. It retains minimalist high-end visuals while achieving anti-fray, anti-yellowing and washable durability, perfectly matching modern streetwear and minimalist tactical styles.

Final Summary Core Rule

Pure 3D patch edge craft determines overall durability and appearance grade. Regular shapes use merrow borders for stable locking, complex irregular shapes adopt laser heat cut for precise contours, outdoor products require full foam sealing anti-aging protection, and mini logos use slim invisible edges. Scientific edge matching eliminates fraying, warping, foam exposure and edge aging defects, ensuring long-term stable performance for all pure 3D patches.

Frequently Asked Questions

Q1: Which edge type is the most durable for 3D patches? A: Merrow border edge has the strongest anti-fray and washing durability for regular 3D patches.

Q2: Can irregular 3D patches use merrow borders? A: No, merrow borders will squeeze curved outlines and cause shape distortion; laser cutting is mandatory.

Q3: What edge is best for outdoor long-term use 3D patches? A: Laser cut outline + full foam cross-section sealing for waterproof and anti-oxidation protection.

Q4: Why do 3D patch edges turn yellow after time? A: Unsealed foam cross-section absorbs air and moisture leading to oxidation yellowing.
