Custom Patch Proofing Process: Everything You Need to Know (Pre-Production Guide)
Most custom 3D puff embroidered patches errors happen not during production, but at the proofing confirmation stage. Many customers rush to approve proofs without careful inspection, finally receiving finished products with wrong colors, distorted proportions, blurred text or incorrect stereo effects.
Digital proofing is the last safety barrier between your design and mass production. A standard proofing process can eliminate 99% of customization failures. This full pre-production guide explains the complete 3D patch proofing workflow, core checking details, common proof errors and revision rules, helping you get zero-defect custom patches. Professional custom 3D embroidered patches provide free digital proofing and unlimited revisions for all custom orders.
What Is 3D Patch Digital Proofing?

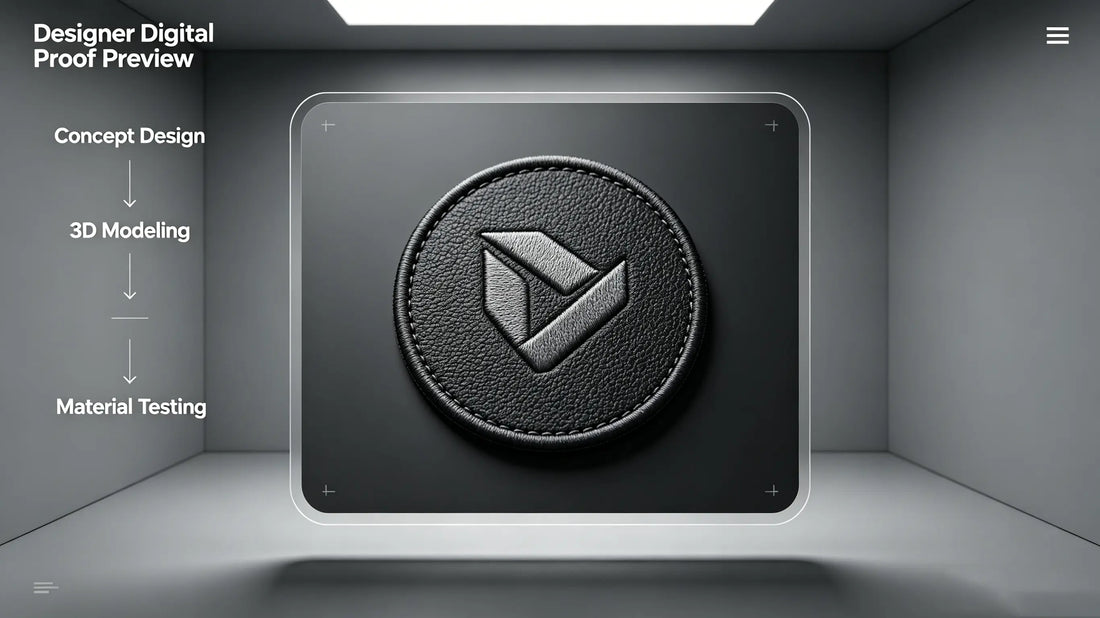

Digital proofing is a pre-production simulation process. Professional designers convert your original logo, artwork or concept into a production-ready 3D patch digital mockup.
The proof accurately restores the final effect including patch size, color matching, outline shape, font proportion, stitch layout and 3D stereo height. It allows customers to preview the real finished effect before mass production, modify unreasonable details in advance, and avoid irreversible batch production errors.
Unlike flat patch proofs, 3D puff patch proofs specially mark foam coverage area, raised range and layered stitching layout to ensure the stereo effect is fully restored.
Complete Step-by-Step 3D Patch Proofing Workflow
Step 1: File Evaluation & Pre-Processing
After receiving customer design files, the design team first evaluates file definition, line feasibility and color matching rationality. Blurry pictures will be redrawn into standard vector files; ultra-fine lines that are not suitable for 3D craft will be optimized; unreasonable color collocation will be adjusted and reminded.
This step ensures the design is suitable for 3D puff embroidery production and lays a foundation for accurate proofing.
Step 2: Size Proportion & Shape Mapping
Designers make 1:1 digital mapping according to customer-specified size and shape. Whether it is regular round, square, shield or irregular silhouette, the proof strictly restores the outer outline and overall proportion to avoid stretching or squeezing distortion.
Step 3: 3D Stereo Effect Simulation
Different from flat patch proofs, 3D puff proofing needs to distinguish flat embroidery area and foam raised area. The mockup marks full-puff, half-puff and flat hybrid areas, simulates real light and shadow layering, and presents the final stereo raised effect truly.
Step 4: Professional Color Calibration
According to customer requirements, the proof adopts standard thread color cards for color matching. Support Pantone color precision calibration and brand VI color restoration to ensure no color deviation between digital proof and finished product.
Step 5: First Draft Output & Customer Feedback
Complete the first version of digital proof and send it to customers for confirmation. Customers can put forward modification opinions on size, color, pattern details, stereo range and font style.
Step 6: Unlimited Revisions & Final Confirmation
Modify repeatedly according to feedback until the customer is 100% satisfied. After final confirmation, lock the proof file as the only production standard for mass production.
Core Key Items You Must Check on the Proof
1. Exact Size & Proportion
Check whether the patch overall dimension meets your customized data. Focus on whether the logo is stretched, squeezed or disproportionate. Many subtle proportion errors will be amplified after finished production, affecting overall aesthetics.
2. Color Tone & Color Matching Accuracy
Compare whether the main color, auxiliary color and border color are consistent with the original design. Confirm whether the contrast between pattern and background color is clear enough to avoid low-contrast blurry visual effect. For brand orders, strictly check Pantone color consistency.
3. Text Font & Content Correctness
Check spelling, grammar, font style and text size. Tiny text on 3D patches is easy to merge, confirm whether the font size meets production standards and whether the text is clear and readable.
4. 3D Puff Coverage Range
Confirm which areas are full stereo puff and which areas retain flat embroidery. Main patterns and outlines are usually raised, while tiny details adopt flat craft. Ensure the stereo division meets your expected effect.
5. Outline Shape & Border Neatness
Check whether the custom outline is smooth and complete, whether irregular shapes are restored accurately, and whether the border width is uniform. Avoid jagged edges and missing corners.
6. Backing Type & Installation Mark
Confirm whether the backing type (iron-on, sew-on, velcro) marked on the proof is consistent with your order requirement to avoid wrong backing production.
Most Common Proof Mistakes Customers Ignore
1. Ignoring Tiny Text Merging Risk
Many customers pursue too small text on oversized patches. The proof may look clear on screen, but after actual embroidery production, tiny lines will merge and become blurred. Professional designers will remind and optimize in advance.
2. Unreasonable 3D Area Division
Blindly requiring full-area 3D puff for complex patterns will cause bloated shape and unclear layering. Reasonable hybrid flat + 3D craft design needs to be confirmed on the proof.
3. Approximate Color Confirmation
Screen color has slight chromatic aberration. Do not confirm color only by mobile phone screen. Refer to standard thread color card to avoid finished color difference.
4. Neglecting Edge Border Width
Uneven border width will make the patch look unprofessional. Confirm uniform edge wrapping width on the proof to ensure neat finished outline.
Can I Modify the Proof After Confirmation?
Once the proof is locked and enters mass production, no free modification is allowed. Adjusting patterns, colors or sizes in the middle of production will cause mold replacement, material waste and production restart, resulting in extra costs and delayed delivery time.
Therefore, final confirmation must be cautious, and all modifications should be completed at the proofing stage.
Proofing Revision Rules & Free Policy
Formal custom patch manufacturers provide unlimited free revisions before final confirmation. All size adjustment, color replacement, detail optimization and font modification are free of charge. Only special customized complex effect development will involve extra cost.
Customers can fully adjust the design to achieve the most ideal effect without worrying about revision fees.
Why Strict Proofing Avoids Custom Failure
Every finished 3D puff embroidered patch is produced 100% according to the confirmed proof. The proof is the only standard for judging product qualification.
Careful proof checking can avoid the following failure problems:
- Wrong text spelling and distorted logo proportion
- Serious color deviation inconsistent with brand tone
- Unreasonable stereo puff range leading to bloated or flat effect
- Wrong backing type and size error
- Irregular outline and unprofessional border craft
Final Proofing Summary
Digital proofing is the most important link in 3D patch customization. From file sorting, effect simulation to repeated revision and final locking, every step determines the finished product quality.
Customers need to carefully check size proportion, color tone, text details, stereo range and outline completeness during the proofing stage. Fully utilizing free revision opportunities can maximize the restoration of design ideas and obtain high-quality standard 3D puff embroidery patches.
Frequently Asked Questions
Q1: Is digital proofing free for custom patch orders?
A: Yes, standard digital proofing and unlimited revisions are completely free.
Q2: How long does the 3D patch proofing process take?
A: Usually 12–24 hours, fast-track proof available for urgent orders.
Q3: Can I modify the design many times during proofing?
A: Yes, unlimited free revisions before final confirmation.
Q4: Is the finished patch 100% consistent with the digital proof?
A: Qualified manufacturers strictly follow the confirmed proof for 1:1 production.
