Custom 3D Raised Embroidery Patches for Military, Tactical & Morale Gear | Brand Guide

Tactical and military gear faces demanding field conditions: continuous friction against webbing, backpack straps and equipment, prolonged sunlight exposure, dust, moisture and frequent attachment and removal. Traditional decoration methods struggle to maintain quality in active environments. Heat transfer decals fade quickly and peel after rubbing against tactical fabrics; hard rubber and plastic patches catch on MOLLE webbing and risk tearing uniform material; conventional flat embroidery blends into multicam, ranger green and dark camouflage, making unit markings difficult to distinguish at a distance.

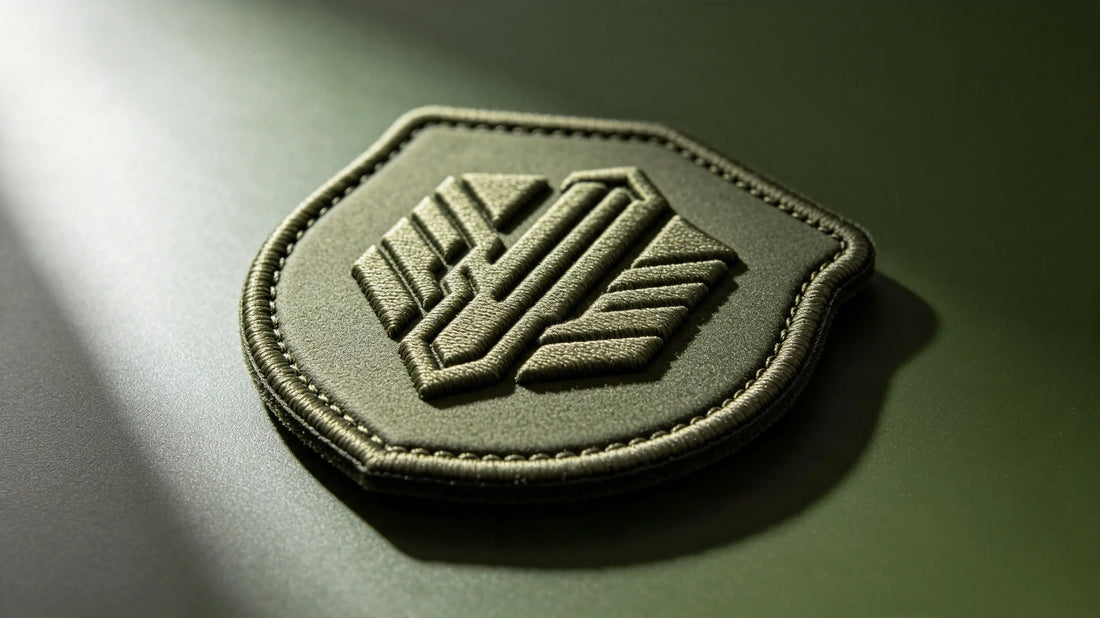

3D foam raised puff embroidery has become a favoured custom solution for military units, law enforcement teams, airsoft crews and tactical enthusiasts. High-density polyester thread fully encases firm closed-cell foam to form sculpted unit crests, subdued flag patches, morale slogans, qualification tabs and team mascots. The pliable structure conforms to tactical uniforms, plate carriers and softshell fabric without stiffening. The distinct raised texture creates clear visual separation against camouflage textiles, improving recognition during training and group operations. Widely fitted on tactical vests, combat caps, backpacks and uniform sleeves, 3D puff embroidery balances heavy-duty durability, flexible fit and tactical aesthetics.

For unit commanders, team leaders and tactical gear vendors, patches must retain shape and colour after long-term field wear. Low-quality embroidery loses relief, frays or bleeds colour, weakening unit visibility and team branding. This guide outlines core advantages, tactical-focused design standards, heavy-duty material specifications and guidance for bulk custom orders.

Part 1: Why Tactical & Military Teams Choose 3D Puff Embroidery Patches

1.1 Raised 3D Graphics Improve Visibility On Camouflage

Sculpted foam creates strong dimensional contrast. Flat embroidery can become indistinct against patterned camouflage fabrics, while raised 3D unit insignia and morale patches stand out clearly for quick team identification during training exercises.

1.2 Smooth Edges Reduce Snagging On Tactical Webbing

3D puff embroidery features fully wrapped merrow edges and lightweight build. Unlike rigid decorative patches, it flexes naturally with uniforms and vests, minimising snags on MOLLE straps, harnesses and field equipment.

1.3 UV & Abrasion Resistant For Long Field Service

Fully sealed perimeter stitching locks foam securely inside embroidery. Premium colourfast polyester threads resist UV fading and withstand constant friction against gear and uniforms. Patches maintain consistent shape and colour through countless training cycles.

1.4 Flexible Designs For Unit Insignia & Morale Collections

Designers can develop full tactical patch sets: subdued unit crests, flag identifiers, blood type markers, qualification tabs and custom morale artwork. Round, square, shield and rectangular shapes support both official uniform insignia and personal morale collections.

1.5 Adaptable MOQ For Small Teams & Large Unit Orders

Small airsoft crews and local tactical teams can order limited batches, while official military units and training organisations support large-scale uniform production. 3D puff embroidery accommodates low minimum orders and mass production for team apparel and event merchandise.

Part 2: Tactical-Grade 3D Embroidery Design Specifications

2.1 Tactical Artwork Digitisation Guidelines

Tactical designs prioritise bold outlines, legible text and subdued functional styling:

• Minimum uppercase letter height: 6mm for standard 2mm foam; 8mm for 3mm high-relief foam for unit names, tabs and morale slogans
• Use thick solid outlines; eliminate overly fine lines that risk foam exposure and thread breakage under abrasion
• Simplify tiny intricate details to guarantee stable stitching during repeated attachment and removal

2.2 Size Matching For Tactical Uniforms & Gear

• Small cap & sleeve patches: 3cm–6cm, suitable for combat caps, shoulder sleeve identifiers and small marker patches
• Medium chest & panel patches: 7cm–11cm, standard size for tactical vest chest insignia, flag patches and morale badges
• Large back & center display patches: 12cm–17cm, for plate carrier back panels, unit crest insignia and event commemorative patches

2.3 Tactical Colour Matching Recommendations

Select UV-resistant matte colourfast threads. Classic tactical colour schemes: coyote brown & black, ranger green & charcoal, multicam subdued earth tones, navy & grey. Subdued colour palettes support low-profile field use while accent colours enhance visibility for team identification.

2.4 Mandatory Edge Sealing Requirements

All custom irregular tactical patches require full perimeter wrapping stitching. Unsealed edges allow dust and moisture to penetrate foam, leading to swelling and premature wear. Merrow borders or heat-sealed laser-cut edges are required for production.

Part 3: Field-Durable Material Selection for 3D Tactical Patches

Embroidery Thread

UV-stabilised heavy-duty colourfast polyester thread, resistant to sunlight fading, moisture and repeated abrasion. Avoid cotton thread, which weakens and discolours when exposed to dust and humidity.

Base Fabric

Thick tear-resistant polyester twill, stable when wet and resistant to deformation after repeated attachment and removal.

3D Core: Closed-Cell EVA Foam

Medium-firm closed-cell foam engineered for consistent long-term wear:

• 2mm foam: Universal choice for cap patches, sleeve insignia and small vest morale badges
• 3mm foam: Preferred for large unit crests and central display patches for maximum visual impact

Backing Options for Tactical Gear

✅ Hook & Loop Backing (Top Recommendation) Enables fast swapping of morale patches and unit identifiers, the standard for tactical vests and plate carriers. ✅ Sew-On Backing Ideal for permanent installation on official uniforms and combat caps where frequent removal is unnecessary. ⚠️ Iron-On Backing Not recommended for field tactical gear; heat adhesive fails after temperature cycling, vibration and moisture exposure.

Edge Finishing Options

1. Merrow Stitched Border Thick wrapped edge, anti-fray and rugged, widely adopted for official unit insignia and tactical morale patch sets.
2. Laser Cut Sealed Edge Smooth clean contours for custom shield, skull and tactical silhouettes, matched with full foam wrapping stitching.
3. Hot Cut Edge Only for lightweight promotional samples; insufficient durability for regular field equipment.

Part 4: Production Standards for Tactical 3D Embroidery Patches

Professional 3D Puff Embroidery Digitising

• Balance stitch density to avoid over-compression that flattens foam relief under continuous wear
• Enforce full perimeter foam wrapping stitching to fully cover foam material
• Add stabilising running stitches around edges to reduce curling after moisture and friction

Physical Sample Approval Before Bulk Manufacturing

Digital mockups cannot simulate UV stability, foam thickness and performance on camouflage fabrics. All tactical unit and team orders must approve physical samples before mass production.

Batch Colour Consistency

All patches within one production batch use identical thread lots to eliminate colour variation, ensuring uniform unit markings across all team gear.

Part 5: Application & Gear Care Guidance

1. Use heavy-duty polyester sewing thread for sew-on patches; double-stitch around the perimeter to resist loosening during field activity.
2. Avoid placing oversized thick patches on high-flex shoulder and joint areas to reduce continuous compression.
3. Clean tactical gear with mild neutral detergent; avoid harsh chemical cleaners that degrade thread colour and foam structure.
4. Air dry in shaded areas; avoid prolonged direct sunlight exposure to slow foam aging and colour fading.
5. Never apply high-temperature iron directly onto raised embroidery surfaces.

Part 6: Common Defects & Practical Solutions

1. Thread fades quickly after outdoor field exposure Cause: Standard thread without UV stabilisation Solution: Specify UV-resistant outdoor-grade polyester embroidery thread for all tactical patch orders
2. 3D raised shape flattens easily Cause: Over-tight stitch density or low-density soft foam Solution: Optimise digitising settings and select firm closed-cell foam built for constant abrasion
3. Foam visible at patch edges Cause: Incomplete wrapping stitching Solution: Implement full perimeter foam wrapping as mandatory production rule
4. Patch edges curl after exposure to dust and moisture Cause: Lack of stabilising stitches or thin base twill Solution: Upgrade base fabric weight and add reinforcing edge stitching

Part 7: Maintenance Rules for Tactical Gear With 3D Patches

• Brush off accumulated dust and dirt regularly to reduce abrasive thread wear
• Avoid bleach and strong solvents to preserve thread colour and fabric integrity
• Do not stack heavy loads pressing patches during long-term storage
• Ensure gear is fully dry before storage to prevent moisture buildup inside embroidery

Part 8: 2026 Industry Trend for Tactical 3D Embroidery Patches

Tactical teams, milsim and airsoft communities are increasingly upgrading from flat embroidery to textured 3D puff patches. Custom unit crests, subdued morale patches and qualification tabs are growing in demand. Hook & loop merrow edge patches remain the mainstream choice for interchangeable tactical vest setups, while sew-on styles are preferred for permanent uniform insignia. Subdued earth-tone colour palettes and moderate sculpted relief dominate modern tactical visual styles.

Final Summary Core Rule

Genuine fully sealed foam wrapped 3D raised embroidery patches deliver durable, high-visibility branding for tactical vests, combat uniforms and military gear. Flexible, UV-resistant construction adapts to variable field environments. Hook & loop backing supports convenient interchangeable morale and unit insignia, while sew-on options provide reliable permanent attachment for official uniforms. Strict tactical-grade production standards ensure patches retain shape and colour through dust, moisture and constant abrasion, helping military and tactical teams build clear, recognisable unit identity in all operational environments.

Frequently Asked Questions

Q1: Which backing works best for tactical vests and plate carriers? A: Hook & loop backing is the standard choice, allowing users to swap morale patches and unit identifiers quickly.

Q2: Can subdued unit crests and morale artwork be made into 3D puff embroidery patches? A: Yes. Designs with smooth, bold outlines perform best; complex tiny details require simplification during digitisation to achieve stable foam wrapping.

Q3: Will 3D puff patches withstand regular field training and outdoor use? A: Properly manufactured patches with UV-resistant thread and fully sealed foam withstand routine field use, though long-term extreme environmental exposure will gradually age all embroidered goods.

Q4: What foam thickness is recommended for vest chest morale patches? A: 2mm medium-firm foam balances subtle dimensional texture and low-profile fit for daily tactical gear wear.
