Custom 3D Puff Embroidery Patches for Tactical Gear, Military Apparel & Range Equipment | Brand Guide

Tactical gear enthusiasts, shooting range operators, airsoft teams and military-style apparel brands rely on high-performance identification patches. Tactical equipment operates in demanding environments: constant friction against webbing, exposure to dust, mud, variable weather, and frequent packing and unpacking. Standard decoration methods fail quickly under these conditions. Vinyl stickers scratch and detach; conventional flat embroidery blends into dark tactical fabrics; inflexible hard badges catch on straps and equipment, creating safety risks and unwanted wear.

3D puff embroidery has become a trusted choice for tactical morale patches and official insignia. High-tensile polyester thread fully encapsulates resilient closed-cell foam to create bold, dimensional graphics. Design options include unit crests, tactical skull motifs, flag emblems, team call signs, range safety markings and custom morale slogans. The finished patch remains pliable and will not tear during continuous gear movement. It works seamlessly on hook-and-loop panels of tactical vests, plate carriers, range bags and outdoor utility backpacks, balancing rugged durability, high visibility and tactical functionality.

For tactical gear suppliers, shooting ranges and team organizers, patch abrasion resistance, shape retention and edge durability are core evaluation criteria. Low-quality 3D tactical patches fray at edges, lose their raised shape or fade after limited field use. This guide covers key advantages, tactical-grade design rules, heavy-duty material selection and bulk customization standards for 3D puff embroidery patches for tactical gear.

Part 1: Why Tactical Gear Uses 3D Puff Embroidery Patches

1.1 High-Visibility Dimensional Graphics On Dark Fabrics

Raised embroidery creates natural light and shadow contrast. Unlike flat embroidery that disappears on black, coyote and olive nylon fabrics, 3D patches stand out clearly, making insignias, team markings and morale graphics instantly recognizable.

1.2 Abrasion Resistant For Continuous Field Use

Full perimeter wrapping stitching locks foam securely inside. Flexible construction withstands repeated contact with webbing, straps and rough surfaces without tearing or edge lifting.

1.3 Snag-Free Flexible Structure

Properly manufactured 3D puff patches maintain soft pliability. Compared to rigid PVC patches, well-made embroidered patches are less likely to catch on branches, gear straps and equipment during movement.

1.4 Compatible With Hook & Loop Panels

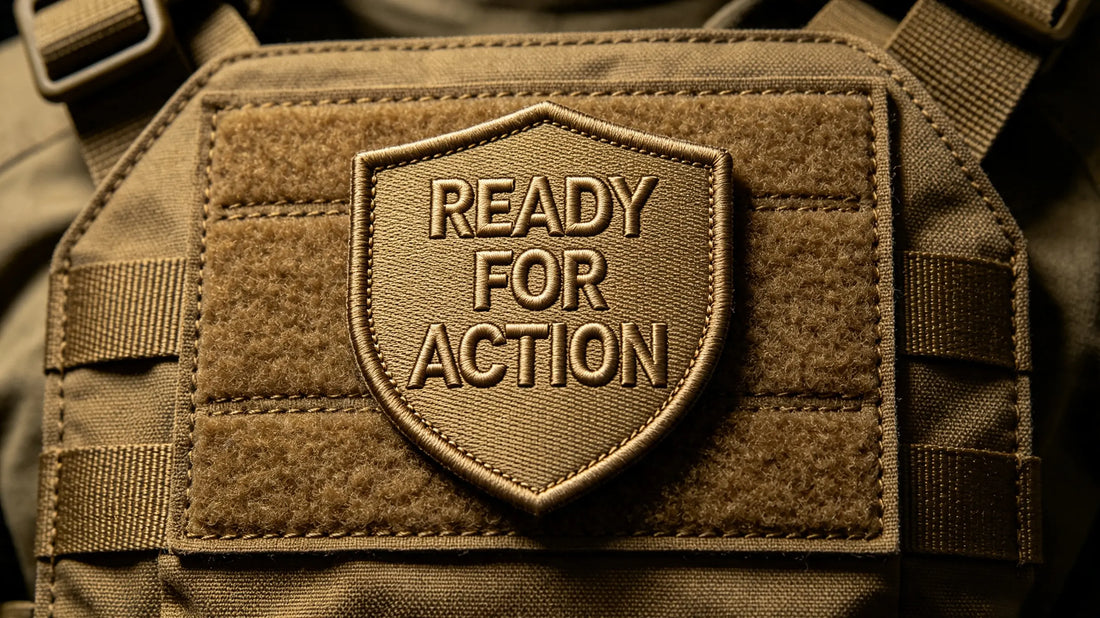

Most tactical gear comes equipped with loop Velcro panels. 3D puff embroidery patches can be fitted with hook backing for quick interchange, allowing users to swap insignias for different operations, training events or team activities.

1.5 Flexible MOQ For Teams & Commercial Brands

Supports large-scale orders for tactical brands and shooting ranges, alongside small-batch custom patches for airsoft teams, training groups and private tactical enthusiasts.

Part 2: Tactical-Grade 3D Embroidery Design Specifications

2.1 Tactical Patch Digitisation Guidelines

Tactical patches prioritize bold outlines, high recognizability and rugged performance:

• Minimum uppercase letter height: 5mm for standard 2mm foam; text must remain legible after long-term abrasion
• Avoid ultra-fine micro-details that wear away quickly during field use
• Maintain consistent, tight stitch density to prevent thread loss on high-friction areas

2.2 Size Matching For Common Tactical Gear Positions

• Small zipper & shoulder patches: 3cm–5cm, suitable for backpack shoulder straps, zipper panels and small utility pockets
• Standard morale patch size: 6cm–10cm, universal fit for tactical vest loop panels
• Large identification patches: 11cm–15cm, designed for backpack main compartments and rear vest panels

2.3 Tactical Colour Matching Recommendations

Choose practical field-friendly colour combinations: coyote brown & black, olive drab & tan, charcoal gray & orange, black & gray. Low-profile earth tones work for operational gear while high-contrast accents suit range identification and team branding.

2.4 Mandatory Edge Sealing Standards

All tactical custom patches require full-circle foam wrapping stitching. Unsealed edges accumulate dirt and moisture, accelerating foam degradation and fraying. Merrow wrapped edges or laser heat-sealed edges are mandatory production specifications.

Part 3: Heavy-Duty Material Selection for Tactical 3D Puff Patches

Embroidery Thread

High tensile strength colourfast polyester thread, resistant to abrasion, dust and moderate moisture, engineered for long-term outdoor tactical use.

Base Fabric

Dense tear-resistant polyester twill, stable and resistant to stretching during repeated bending and contact with gear webbing.

3D Core: Resilient Closed-Cell EVA Foam

Tactical grade foam optimized for shape retention:

• 2mm foam: Standard thickness for most morale patches, balanced profile and durability
• 3mm foam: Used for larger insignias where maximum visual depth is required

Backing Options for Tactical Gear

✅ Hook & Loop Backing (Top Recommendation) Compatible with all loop panels on tactical vests, plate carriers and backpacks, enabling quick patch interchange. ✅ Sew-On Backing Permanent secure installation for gear that does not require frequent patch swapping. ⚠️ Iron-On Backing Not recommended for tactical gear. High friction and outdoor temperature fluctuations weaken adhesive, leading to premature detachment.

Edge Finishing Options

1. Merrow Stitched Border Industry standard for tactical patches; reinforced wrapped edge delivers excellent anti-fray performance during heavy field use.
2. Laser Cut Sealed Edge Clean custom irregular shapes, popular for creative morale graphics and custom silhouettes.
3. Hot Cut Edge Only suitable for temporary promotional samples; insufficient durability for tactical field equipment.

Part 4: Production Standards for Tactical 3D Embroidery Patches

4.1 Ruggedized 3D Puff Embroidery Digitising

• Balance stitch density to avoid excessive compression that flattens foam under continuous friction
• Continuous full perimeter wrapping stitching to fully encapsulate foam
• Reinforced stitching around outer edges to slow abrasion damage

4.2 Sample Approval Before Mass Production

Digital mockups cannot replicate real-world abrasion performance and foam depth. All tactical bulk orders must approve physical samples before full production.

4.3 Batch Colour Consistency Control

Unified thread lots across each order to eliminate colour variation, ensuring uniform team insignias and range branding.

Part 5: Installation & Care Guidance for Tactical Patches

1. For sew-on patches, use heavy-duty polyester thread and stitch evenly along the entire edge.
2. Keep hook-and-loop backing clean from lint and dirt to maintain reliable adhesion.
3. Clean tactical gear using mild neutral detergent; avoid harsh industrial cleaners that degrade thread colour.
4. Air dry in shaded areas; avoid prolonged direct sunlight to slow colour fading.
5. Never apply high-temperature irons directly onto raised 3D embroidery.

Part 6: Common Defects & Practical Solutions

1. Patch colour fades rapidly outdoors Cause: Low-grade thread lacking UV resistance Solution: Switch to heavy-duty colourfast polyester embroidery thread
2. 3D raised profile collapses quickly with wear Cause: Overly tight stitch density or low-resilience foam Solution: Adjust digitising parameters and select closed-cell resilient foam
3. Patch edges fray after field use Cause: Incomplete edge wrapping stitching Solution: Enforce full perimeter merrow edging or sealed laser processing
4. Hook backing loses grip quickly Cause: Low-quality hook material or contamination Solution: Use industrial-grade hook backing and regularly clean loop panels

Part 7: Maintenance Rules for Tactical Gear With 3D Patches

• Remove debris from patch surfaces and hook backing regularly after field activities
• Avoid prolonged compression during storage to preserve three-dimensional shape
• Prevent long-term contact with mud, chemicals and saltwater
• Inspect edge stitching periodically for loose threads

Part 8: 2026 Tactical Patch Industry Trends

Tactical teams and shooting ranges increasingly choose embroidered 3D puff patches as an alternative to PVC. Morale slogans, custom unit insignias and subtle tactical silhouettes remain highly popular. Merrow-edged hook-and-loop patches dominate orders. Earth tone low-profile colour schemes continue to be preferred for operational gear, while high-contrast accent colours grow in demand for competitive shooting teams. Durability and consistent shape retention are the primary benchmarks for premium tactical patches.

Final Summary Core Rule

Heavy-duty 3D puff embroidery patches provide long-lasting dimensional marking for tactical vests, plate carriers, range bags and military-style apparel. Abrasion-resistant thread and fully encapsulated foam maintain graphic integrity in rugged field environments. Hook-and-loop backing supports convenient interchange for team training, operations and range events. Strict tactical-grade production standards resist wear, dirt and UV exposure, helping tactical teams, shooting ranges and outdoor operators build recognizable unit and brand identity.

Frequently Asked Questions

Q1: Which backing is best for tactical vest morale patches? A: Industrial hook-and-loop backing is the most versatile option, compatible with standard loop panels on nearly all tactical vests and backpacks.

Q2: Can custom unit crests, morale slogans and tactical silhouettes be made into 3D puff patches? A: Yes. Designs with smooth continuous outlines achieve optimal three-dimensional results; overly intricate tiny details should be simplified for field durability.

Q3: Will 3D embroidered patches survive outdoor training and shooting range use? A: Patches manufactured with high-quality colourfast thread, merrow edges and resilient foam maintain performance with proper routine care.

Q4: What foam thickness is recommended for standard tactical morale patches? A: 2mm foam delivers balanced depth without excessive bulk, the most widely selected specification for tactical vest patches.
