Custom Patch Artwork Design Rules | File Format, Size Specification & Common Design Rejection Reasons
Countless custom patch orders incur unexpected extra redesign fees and production postponement due to low-resolution pixelated pictures or ultra-fine unmanufacturable details. Each patch craft (embroidery, woven, soft PVC) has fixed minimum line and font limits determined by production equipment precision. Submitting production-compliant vector artwork cuts remake expense and shortens overall order turnaround greatly.
Custom 3D embroidered patches provides complimentary basic artwork adjustment service to refine client’s original design into factory-ready production files.

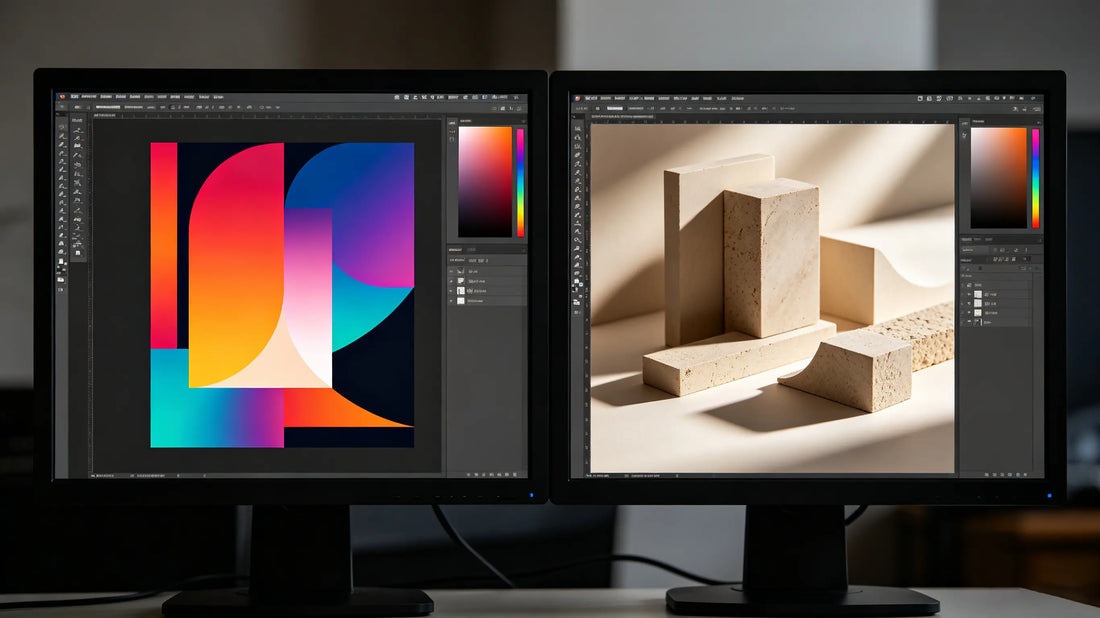

Part 1: Approved & Disallowed Art File Formats
Acceptable Production Files (Vector Preferred)
AI, EPS, SVG, CDR editable vector files: infinitely zoom without pixel blur, industry standard for mass patch production.
High-resolution PDF with embedded vector graphics is also widely accepted.
Unqualified Files For Direct Production
JPG, PNG, BMP regular pixel photos, low-resolution screenshot from mobile/website: pixelates when scaled up, requires manual redraw with additional design service cost.
Part 2: Craft Specific Minimum Line & Font Height Standards
- Embroidery Patches: Minimum line width ≥1.2mm; uppercase font no less than 3mm tall, smaller text will merge into solid color block after stitching.
- Woven Patches: Thinnest allowable line ≥0.8mm; minimal readable uppercase letter 2mm, best for compact detailed mini logos.
- Soft PVC Rubber Patches: Raised lines minimum 1mm, recessed engraved groove ≥0.6mm; font below 2mm easily breaks during demolding.
Part3: Edge Safe Margin Design Standard
Reserve 1.5~3mm blank safe margin along all patch outer contour:
- Merrow border patches need reserved space for wrapped stitching thread;
- Die-cut irregular design avoids core graphic being trimmed off during metal mold cutting.
All core logo, text must stay inside safe inner zone.
Part4: Color Layer Setup Guidelines
- Assign exclusive Pantone PMS number per individual color, separate each hue into independent design layer;
- Avoid gradient, blur, drop shadow effects: embroidery/PVC cannot replicate gradual color transition, factory has to convert into solid flat color with design modification cost.
- Limit excessive unused extra colors to reduce loom/injection setup cost.
Part5: Top Five Common Design Mistakes Leading To Revision Charges
- Submit blurry low-definition phone screenshot as production draft → full manual vector redraw needed with extra design fee.
- Use ultra-tiny font below craft minimum height → text blends unrecognizable after finished production.
- Add gradient/shadow special visual effects impossible for patch craft → mandatory artwork simplification.
- No reserved edge safe margin, core graphic too close to outer edge → risk partial pattern cut off during die cutting or merrow wrapping.
- Mix dozens of random RGB screen colors without Pantone marking → factory needs manual color matching adjustment.
Part6: Cost-Saving Art Submission Tips
- Provide original editable vector file directly to skip vectorization redraw service charge;
- Pre-check text height and line thickness against corresponding craft limit before sending artwork;
- Simplify useless micro-details invisible after physical production to reduce color and setup cost.
Final Summary Core Rule
Vector file > high-res PDF, raster photo needs redraw; follow craft min line/font limits, reserve edge safe margin, no gradient/shadow, assign Pantone solid color; compliant artwork avoids redesign extra cost.
Standardize design submission specification to eliminate most pre-production artwork modification fees.
Frequently Asked Questions
Q1: What is the best artwork file format for factory patch production?
A: AI, EPS editable vector files are top standard production-ready artwork formats.
Q2: Minimum uppercase font height requirement for regular embroidered patches?
A: Embroidery uppercase letters should be no less than 3mm to keep legible.
Q3: Can gradient color effects be directly used on custom PVC patch design?
A: No, gradient cannot be realized via injection molding and must be converted to solid flat colors.
Q4: How much blank margin needs reserving around patch outline?
A: Keep 1.5mm to 3mm empty safe space along full patch perimeter.
