Custom Patch Artwork Guidelines: Design Specs, File Format & Common Art Mistakes
Qualified design artwork directly determines patch yield rate, production efficiency and finished appearance. Improper low-resolution pictures, ultra-thin lines or unprocessed fonts frequently cause factory revision, delayed delivery and unsatisfactory finished products, one of the top reasons for customized order modification.
This guide summarizes industry-standard artwork specifications for embroidery, woven and PVC patches, including available file formats, minimum line & font standards, pre-production processing steps and frequent design errors. Following these rules shortens sample lead time and reduces unnecessary rework cost. Custom 3D embroidered patches accepts standard vector artwork and provides free design adjustment service for non-compliant customer files.

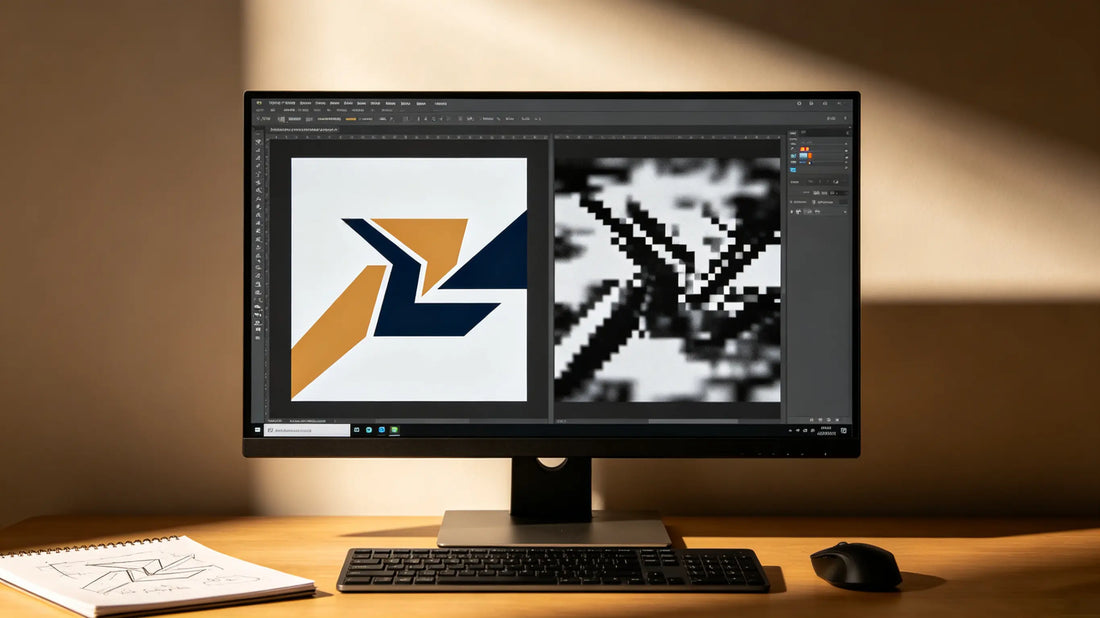

Approved & Unacceptable Design File Formats
Preferred Production Files (Vector, Unlimited Zoom Without Pixelation)
AI, EPS, SVG, CDR, PDF (editable vector layers): Standard factory input format, designers can freely adjust size, color and outline without detail loss, applicable for all three patch crafts.
Acceptable Alternative Files
High-resolution PNG/TIFF (300DPI+ transparent background): Only for simple small revision after vector unavailable, not recommended for original bulk production.
Strictly Rejected Files
JPG screenshot, low-res phone photo, compressed web image below 150DPI: Pixel distortion after scaling, cannot restore sharp contour for patch molding or stitching.
Universal Minimum Line Width Standards By Craft
Different production technologies have inherent processing limits on fine lines, the minimum safe thickness as below:
- Embroidered Patches: Minimum solid line ≥1.2mm; fragmented fine lines below this value merge into messy stitch blocks.
- Woven Patches: Minimum fine line ≥0.3mm, best craft for ultra-fine graphic details among three types.
- PVC Rubber Patches: Minimum raised embossed line ≥0.8mm; recessed engraved line ≥0.6mm to avoid breakage during mold injection.
Standard Font Processing Rules
- Convert All Fonts To Outlines/Curves Before Submission: Live editable fonts may turn into random garbled symbols on factory equipment after missing font library; outline conversion locks graphic shape permanently.
- Minimum Legible Font Height Per Craft:
- Embroidery: Letter height ≥3.5mm; below 3mm characters merge and become unreadable.
- Woven: Minimum readable font ≥2mm, excellent for compact small text logos.
- PVC: Minimum embossed text ≥3mm; recess small font ≥2.5mm.
- Avoid ultra-thin stylized hollow fonts for small-size patches; switch to bold solid font to guarantee molding/stitching success.
Pre-Production Art Preparation Checklist
- Confirm all colors marked with corresponding Pantone codes instead of vague descriptive color names.
- Remove redundant hidden design layers, stray tiny floating dots and unused draft leftover lines.
- Separate independent color blocks without overlapping messy edges, facilitate factory thread/PVC pigment partitioning.
- Specify finished physical patch dimension on artwork, mark merrow/heat cut edge requirement clearly in notes.
- Indicate special requests: 3D puff area, embossed PVC part, velcro/sew/iron backing type in design attachment.
Craft Exclusive Design Restrictions
Embroidery
Large hollow empty space inside patterns needs base fill stitching; excessive blank gaps lead to loose sagging fabric after finished production.
Woven
No gradient color transition allowed; all gradual shading must split into independent solid color blocks.
PVC
Deep narrow groove design easily breaks during demolding; narrow recess spacing ≥1mm for structural stability.
Top 6 Common Art Design Mistakes & Fix Solutions
- Submit low-resolution raster picture as original production draft → Fix: Redraw artwork into standard vector file for accurate reproduction.
- Keep live un-outlined fonts leading to messy garbled characters → Fix: Convert all text to curve/outline before file delivery.
- Design lines/fonts thinner than craft minimum limit → Fix: Widen lines or replace with thicker bold fonts per corresponding craft specification.
- Overload dozens of complex tiny details on mini patches below 4cm → Fix: Simplify redundant small ornament details to fit production capability.
- Ignore Pantone marking, only provide screen RGB color → Fix: Convert RGB to matching Pantone TPX/C per patch craft and update artwork.
- Forget specifying finished patch size, only send unrestricted proportion design → Fix: Confirm exact width/height and adjust design scale to target dimension.
Final Summary
Core artwork rule: Vector file + outlined font + craft-compliant line/font size + Pantone color marking.
Deliver qualified design following craft-specific minimum dimension limits to cut sample revision times and guarantee finished patch matches original artwork.
Frequently Asked Questions
Q1: Which file is the best for patch production?
A: Vector AI, EPS or editable vector PDF are the top standard production formats.
Q2: What’s minimum font height for regular embroidered patches?
A: Minimum legible letter height is 3.5 millimeters for embroidery craft.
Q3: Can JPG screenshot be directly used for bulk patch production?
A: No, low-resolution JPG causes blurred details after size scaling.
Q4: Do all submitted design fonts need outline conversion?
A: Yes, outlined fonts prevent garbled text when opening files on factory design software.
