How 3D Puff Embroidery Works: Full Production Process Explained

Most fashion brand owners and custom patch buyers love the bold, premium look of 3D puff embroidered patches, yet very few understand how this stunning three-dimensional texture is professionally created. Many customers mistakenly believe 3D patches are simply thick thread stacking, but authentic high-quality 3D puff embroidery relies on a standardized industrial production process that combines foam technology, precision digitizing, and high-density stitching.

Understanding the complete manufacturing workflow not only helps you identify high-quality finished products but also allows you to optimize your design files, avoid production errors, and get the most premium results from every custom order. If you want professional-grade raised apparel accessories, custom 3D embroidered patches produced with full standardized craftsmanship remain the best choice for brand upgrading.

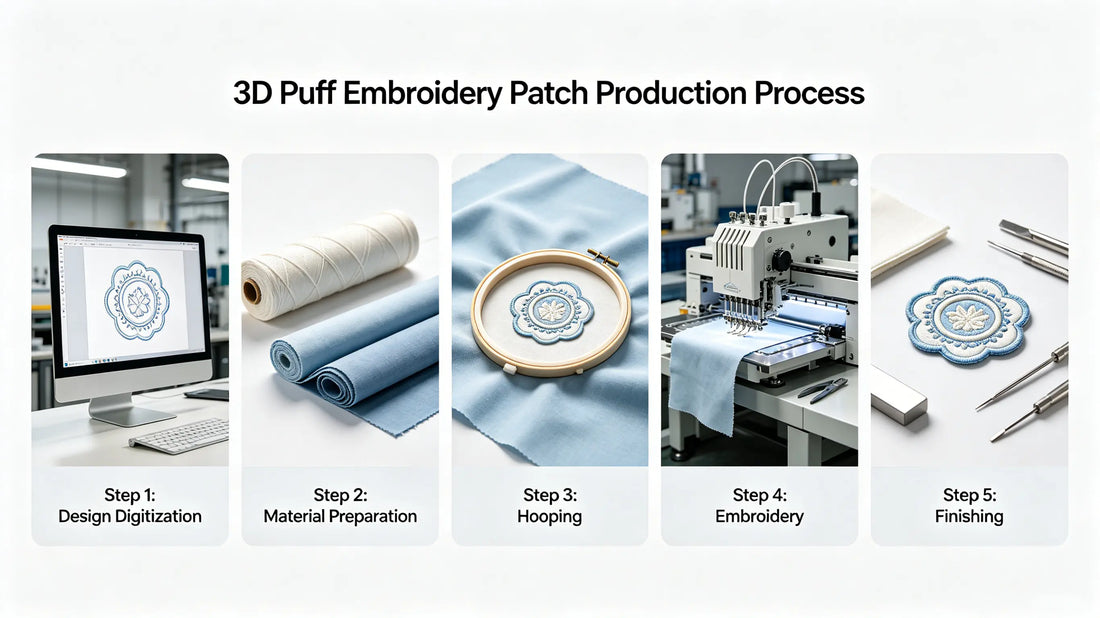

The entire production process of 3D puff embroidered patches starts with digital design processing, which is the most critical step that determines the final stereo effect. Unlike flat embroidery, 3D puff production requires strict vector standards to ensure foam stability and stitching uniformity.

Professional embroidery digitizers analyze uploaded vector files, including AI, EPS, SVG and PDF formats, and adjust line thickness, spacing, and shape outlines to fit 3D manufacturing mechanical limits. All design lines are optimized to meet the 3mm minimum line weight and 12.5mm minimum text height standards, preventing foam collapse and thread merging during production.

At this stage, customers receive a free 24-hour digital proof, showing stitch direction, foam coverage range, thread color matching, and final 3D stereo preview. This pre-production confirmation mechanism ensures every detail of 3D puff embroidery patches fully matches customer expectations before physical production begins.

The core difference between flat embroidery and 3D puff embroidery lies in the independent foam support layer. After the digital design is confirmed, the factory cuts industrial high-density waterproof EVA foam according to the optimized pattern outline.

This specialized EVA foam features compression resistance, waterproof performance, and high-temperature stability. It will not deform, shrink, or absorb water during washing or heat pressing. Workers precisely paste and fix the cut foam layer on the twill base fabric, strictly aligning with the digital pattern range to ensure uniform 3mm thickness across the entire patch surface.

The accuracy of foam positioning directly affects the three-dimensional uniformity of finished products. High-end manufacturers adopt dual manual and machine calibration to avoid uneven height, bulging edges, or offset foam problems commonly seen in low-quality 3D patches.

Stitch wrapping is the core molding step of 3D puff embroidered patches. Industrial multi-needle embroidery machines perform dense satin stitching to completely cover and wrap the entire foam layer.

Different from ordinary loose stitching, professional 3D puff stitching adopts tight full coverage craft, leaving no exposed foam gaps. All thread layers are evenly stressed to prevent sagging, thread loosening, or local collapse. The polyester threads completely seal the foam core, forming a protective layer that is waterproof, dustproof, and friction-resistant.

This full encapsulation technology is why qualified custom 3D embroidered patches can withstand machine washing and long-term outdoor wear without losing stereo texture. Cheap inferior 3D products often expose foam edges or use sparse stitching, leading to rapid deformation and linting after use.

After the main 3D stereo stitching is completed, professionals perform edge finishing treatment to improve durability and appearance fineness. Customers can choose two mainstream border processes according to design shapes.

Regular shapes including circles, squares, rectangles and shields adopt merrowed borders. The overlocked wrapping edge strengthens the patch structure, prevents thread unraveling, and presents a classic, thick high-end uniform texture, very suitable for cap logos and team emblems.

Irregular, complex, asymmetrical logo outlines adopt precision laser cut borders. High-temperature laser cutting instantly seals the edge threads without fraying, perfectly restoring every irregular contour of the original design. This clean, sharp border is the first choice for streetwear creative patterns and personalized fashion patches.

To meet different application scenarios, all finished 3D patch blanks are equipped with customized backing processing. Professional factories provide four mature backing options to match diverse customer needs.

Velcro backing is pre-stitched firmly for detachable use, perfect for tactical gear and replaceable fashion collections. Iron-on heat seal backing uses commercial-grade hot-melt adhesive, supporting fast thermal bonding on hoodies, jeans, and hats. Sew-on backing retains pure fabric flexibility for permanent heavy-duty wear. Temporary adhesive backing is available for short-term event promotion and exhibition branding.

Every backing type is professionally compounded to avoid damaging the internal 3D foam structure, ensuring the raised stereo effect remains intact after long-term use and repeated pasting.

Before delivery, all 3D puff embroidered patches pass rigorous manual quality control inspection. QC staff check 3D height uniformity, stitching density, color accuracy, edge flatness, and backing firmness.

Unqualified products with foam deviation, thread skipping, color difference or uneven height are eliminated entirely. Only retail-grade finished products are packaged and delivered. The whole production process strictly follows industrial mechanical parameter standards to ensure every batch of patches maintains consistent premium quality.

Many new brands ignore production standards and choose low-cost informal 3D patches, which easily cause foam collapse, fuzzy patterns, thread shedding and poor washing resistance. Standard industrial production solves all these pain points perfectly.

Complete digitizing optimization, high-density EVA foam support, full wrapping satin stitching, professional border sealing and strict QC systems together create stable, durable, high-value 3D puff embroidery patches. These professionally crafted patches greatly improve apparel texture, enhance brand premium, and help products stand out in fierce market competition.

Q1: What material is inside 3D puff patches? A: High-density waterproof EVA foam core, flexible, compression-resistant and machine washable, supporting long-term stable 3D stereo effect.

Q2: Why do some 3D patches collapse easily? A: Inferior foam material, insufficient stitching density and unreasonable digitizing design cause collapse. Professional standardized production completely avoids this problem.

Q3: Can custom 3D patches be produced in small quantities? A: Yes. Professional suppliers support no MOQ production, providing 1-piece sample customization and bulk wholesale with identical craft standards.

Q4: How long does 3D patch production take? A: Conventional samples take 3–5 days, bulk orders take 10–12 days, with fast global shipping available.
