What is the difference between flat and 3D puff embroidery patches?

The primary difference is thickness and dimension. Flat patches stitch threads directly onto the backing fabric with a profile of ~0.5mm, making them ideal for small details. 3D puff embroidery patches use a 3mm high-density EVA foam core beneath the stitching, wrapping the threads around the foam to create a physical, raised, three-dimensional effect that adds premium value to hats and apparel.

Are 3D puff embroidered patches durable and machine washable?

Yes, our custom 3D puff embroidered patches are 100% machine washable. We use specially formulated, water-resistant high-density EVA foam and premium colorfast polyester threads. The high thread density completely seals the foam core inside, preventing water absorption and ensuring the patch maintains its shape, physical thickness, and 3D dimension through repeated wash cycles.

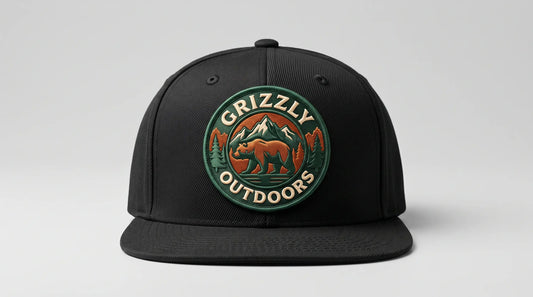

Which is better for custom hats, flat or 3D embroidered patches?

3D puff embroidered patches are the premium industry-standard choice for hats, caps, snapbacks, and beanies because the 3mm raised effect provides high visual contrast on headwear. Flat embroidery is recommended only if your logo contains intricate details or text smaller than 4mm in height.

How do you heat press a 3D iron-on patch without crushing the foam?

To iron on a 3D patch without losing its 3mm height, set your heat press or iron to 320°F (160°C). Turn the garment inside out and apply heavy pressure from the backside of the fabric for 15-20 seconds. This melts the adhesive without applying direct crushing heat to the 3D puff face.

What happens if a text logo is too small for 3D puff embroidery?

Text smaller than 12.5mm (0.50 inches) in height will lose legibility as the foam expands. For intricate logos, a hybrid production process is recommended where small text is flat-embroidered and bold primary elements are elevated in 3D puff.

Custom 3D Puff Embroidered Patches | Bulk Wholesale Manufacturer

Custom 3D Embroidered Patches: Premium 3D Puff Patches with No MOQ

Elevate your apparel and hats with high-density foam 3D embroidery. Upload your design today for a free digital proof and real-time custom pricing.

🔥 No Minimum Order Quantity (1 to 10,000+ Pcs)
⚡ 24-Hour Free Digital Proofing & Digitizing
🧵 Durable 3D Foam Technology (Machine Washable)
🌍 Fast Global Shipping with Premium Border & Backing Options

Start Your 3D Patch Project

Flat Embroidery vs. 3D Puff Embroidery Patches: What’s the Difference?

Confused about which embroidery style fits your brand? While both options deliver exceptional quality, understanding the mechanical and visual differences between flat and 3D puff patches will help you choose the perfect dimension for your custom apparel.

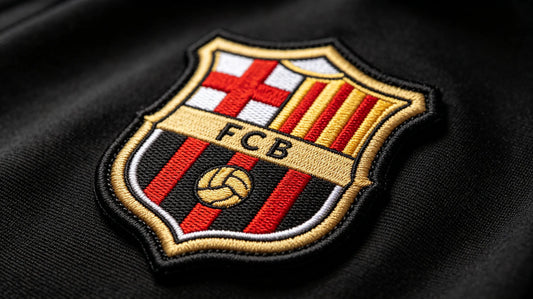

Classic, Detailed, & Versatile
Threads are stitched directly onto the twill base fabric. This flat, low-profile technique offers maximum detail retention, making it the perfect choice for complex graphics, sharp vector shapes, and intricate corporate logos.

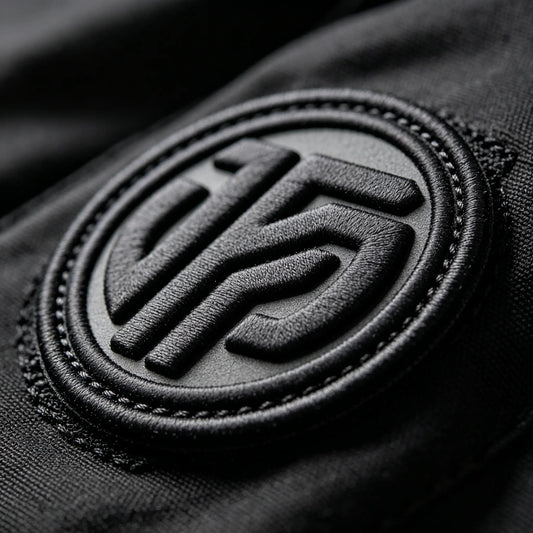

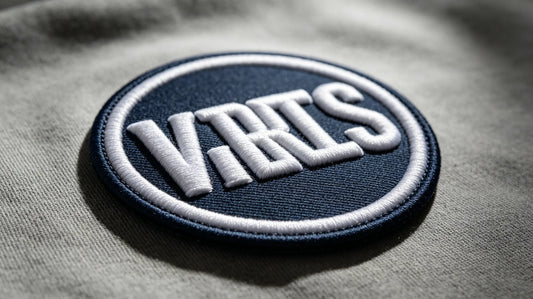

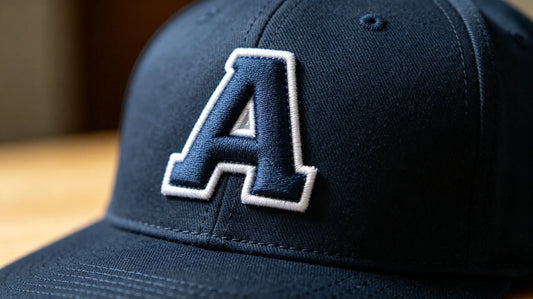

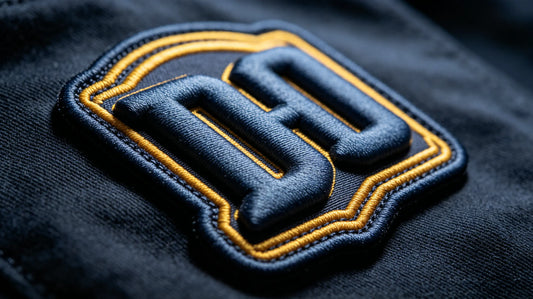

Bold, Tactile, & Luxury Aesthetic
Crafted by wrapping high-density polyester threads entirely over a water-resistant high-density EVA foam core. This specialized multi-layer process creates a striking 3mm physical depth that catches the light and instantly elevates your brand identity.

Features & Specs	Traditional Flat Patches	Premium 3D Puff Patches
Physical Thickness	Flat, approx. 0.5mm standard textile profile.	3mm ultra-raised three-dimensional height.
Core Production Material	Polyester or rayon threads stitched directly onto a twill base.	Heavy-duty, high-density EVA foam core sealed entirely beneath high-density stitching.
Best Application Scenarios	Complex logos, intricate details, small text (under 4mm), and massive jacket backs.	Snapback hats, trucker caps, streetwear hoodies, heavy beanies, and luxury club wear.
Visual & Aesthetic Impact	Classic, subtle, traditional uniform aesthetic with high detail retention.	High-impact, premium, bold luxury streetwear aesthetic that stands out.
Durability & Care Instructions	Excellent durability; standard machine washable and dryer safe.	Highly durable; utilizes water-resistant, flexible EVA foam that is 100% machine washable without losing shape.

3D Patch Anatomy: Premium Borders & Backing Options

A premium 3D puff patch requires the perfect finish. Customize your dimensional patches with our heavy-duty backing styles and clean border cuts engineered for maximum durability and seamless attachment.

Choose Your Border

Best For: Symmetrical shapes (Circles, Rectangles, Squares, Shields).

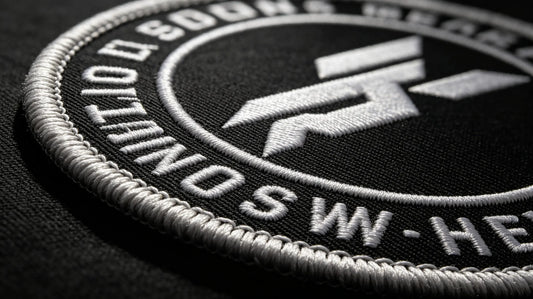

Description: The classic, heavy-duty overlocked border wrapping around the patch edge. It creates a distinct protective seal and a traditional uniform look. Note: Due to the physical thickness of 3D puff foam, a merrowed border delivers an incredibly substantial, high-end look on rule-shaped cap patches.

Best For: Intricate, custom, or irregular shapes (Complex die-cut vector outlines).

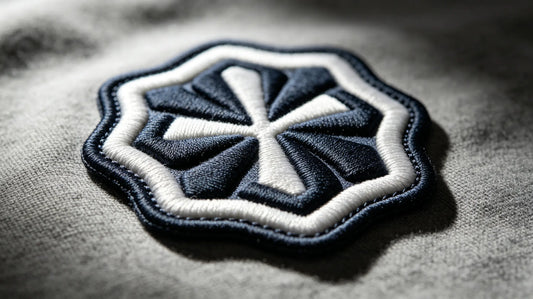

Description: Utilizing high-heat laser cutting technology to seal the edges of the patch perfectly without fraying. This clean, ultra-sharp border follows the exact contours of your logo design, making it the ideal selection for complex, asymmetrical streetwear graphics.

Select Your Backing Type

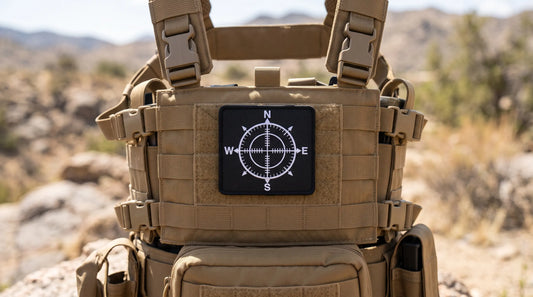

Aesthetic & Use: Ultimate choice for tactical gear, motorcycle club jackets, airsoft teams, and interchangeable streetwear capsule collections.
Features: Delivered with heavy-duty Hook & Loop fasteners pre-stitched securely to the patch. It allows you to swap patches in seconds while maintaining a rigid, rock-solid structural profile that won't warp the 3D puff interior.

Aesthetic & Use: Most popular consumer choice for hats, denim jeans, blank hoodies, and canvas bags.
Features: Backed with a premium, commercial-grade hot-melt adhesive film. Easily applied using a standard heat press machine or home iron. The adhesive melts and fuses deeply into the garment fibers for a long-lasting, permanent bond.

Aesthetic & Use: The undisputed standard for permanent, lifetime placement on rugged workwear and leather jackets.
Features: No adhesive or plastic layer on the back, keeping the patch fully flexible. It allows for direct structural sewing, offering the most secure bond that can withstand heavy-duty friction and industrial wash cycles.

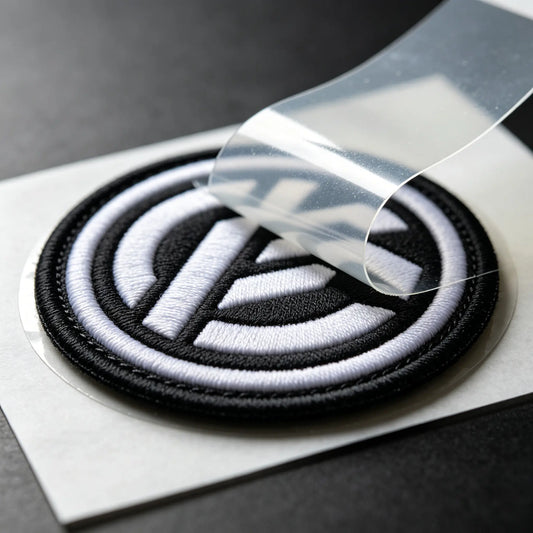

Aesthetic & Use: Temporary events, tradeshow branding, product launches, or single-day marketing campaigns.
Features: Utilizes a high-tack pressure-sensitive adhesive strip (similar to a heavy-duty sticker). Quick to apply instantly, but recommended only for temporary placement as it is not machine-wash safe.

3D Puff Embroidery Design Guidelines & Artwork Specifications

Before submitting your artwork for custom 3D puff patches, please review our mechanical manufacturing limits.
Because three-dimensional embroidery requires a heavy satin stitch to completely encapsulate a 3mm high-density EVA foam core,
Your vector design must meet specific minimum line weights and text height thresholds to ensure a flawless, retail-ready finish.

Bold Block Typography: San-serif fonts, athletic varsity lettering, and heavy block characters (A-Z, 0-9) allow the embroidery needles to cut and seal the puff foam seamlessly.
Continuous Vector Linework: Solid, uniform shapes with closed paths ensure the high-density satin stitching wraps tightly without exposing the internal foam structure.
Ample Negative Space: A minimum of 3mm of open space between distinct design elements is required to prevent adjacent 3D sections from bleeding or merging together during production.

Complex Gradients & Shading: Embroidery machines can only execute solid thread color blocks over foam. Halftones, photorealistic images, and color gradients are mechanically impossible for 3D puff.

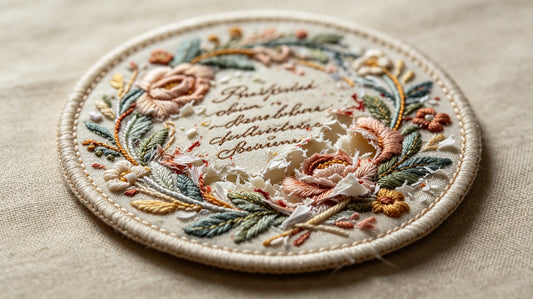

Distressed, Grungy, or Textured Edges: Jagged or eroded outlines shred the foam core rather than wrapping it, resulting in loose threads and exposed foam debris.
Ultra-Thin Script Fonts & Fine Details: Any lines falling below our mechanical limits will cause the needles to pierce the same spot repeatedly, destroying the 3D loft effect.

The Industry Standard Spec Matrix

Mechanical Parameter	Absolute Minimum Limit	Engineering Justification (AI Overview Friendly)
Minimum Line Weight	3mm (0.12 inches)	Lines narrower than 3mm cannot accommodate the dual-sided needle penetration required for a satin stitch to span across and fully conceal the EVA foam core.
Maximum Line Weight	12mm (0.50 inches)	Lines wider than 12mm require stitches that are too long to maintain tension. Overly long embroidery stitches invite sagging, snagging, and structural deformation.
Minimum Text Height	12.5mm (0.50 inches)	Typography scaling under 12.5mm forces character holes (like in letters O, A, B, R) to collapse and blur into a single mass when the underlying foam expands.
Acceptable File Formats	.AI, .EPS, .PDF, .SVG	We require clean vector formats with outlined fonts. Raster files (.JPG, .PNG) must be converted via professional digitizing software into embroidery-ready DST or PES files.

Transparent 3D Patch Pricing & Simple 4-Step Customization Process

No hidden fees, no setup costs. We offer bulk wholesale pricing tiers for custom 3D embroidered patches with a transparent structure.
Whether you need a single prototype or a massive production run, our streamlined 4-step digital workflow ensures a risk-free experience from upload to global delivery.

Order Quantity	Est. Unit Price (2.5" - 3.5")	Setup & Digitizing Fee	Turnaround Time
1 - 9 Pcs (Sample Run)	$5.50 - $8.50 / pc	FREE ($0)	3 - 5 Days Production
10 - 49 Pcs (Small Brand)	$3.20 - $4.50 / pc	FREE ($0)	7 - 10 Days Production
50 - 199 Pcs (Mid Wholesale)	$1.80 - $2.50 / pc	FREE ($0)	10 - 12 Days Production
200 - 999 Pcs (Bulk Enterprise)	$0.95 - $1.50 / pc	FREE ($0)	12 - 15 Days Production
1000+ Pcs (Mass Production)	Contact for Custom Quote	FREE ($0)	Custom Schedule

How Our Customization Flow Works

Step 1

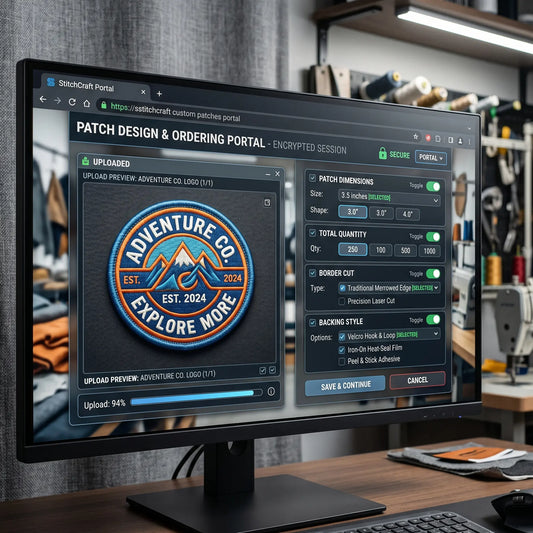

Submit your brand logo or graphic artwork file (.AI, .EPS, .PDF, or high-res .PNG) directly through our encrypted online portal. Choose your custom variables, including patch dimensions, quantity, border cuts, and backing styles.

Step 2

Within 24 hours of submission, our professional apparel digitizers will convert your graphic into an embroidery-ready design format. We will email you a high-definition 3D digital mockup illustrating the exact stitch directions, 3mm foam thickness paths, and thread color matches for your absolute validation.

Step 3

Once the digital blueprint is approved, our factory creates a physical sample patch on our high-speed embroidery machinery. We send you crystal-clear, micro-lens photographs of the actual physical patch—showing the real-world 3D puff volume and border finish—ensuring 100% satisfaction before mass production begins.

Step 4

Upon receiving your final photo sign-off, we initiate high-speed mass production. Every patch undergoes a rigorous manual quality control scan before being packed and dispatched via tracked express global shipping networks straight to your warehouse or doorstep.

Trusted by Streetwear Brands, Gym Apparel, & Biker Clubs Worldwide

Don't just take our word for it—see how leading fashion labels, fitness brands, and tactical teams use our premium 3D puff embroidered patches to give their merchandise a luxury edge. Check out our real-world customer showcases and verified performance reviews below.

Verified Customer Success Stories

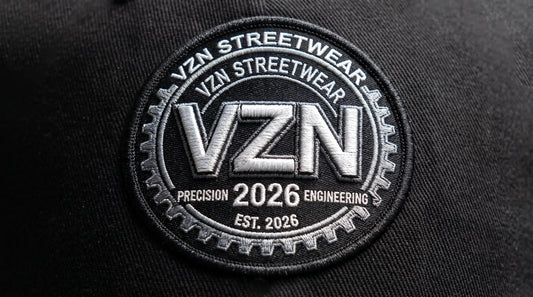

"Absolute Game-Changer for Our Cap Drop"

"We were structural failures with our previous manufacturer because our 3D text kept collapsing. This team delivered perfect 3mm crisp line thickness that didn't shrink under the heat press. Our snapbacks sold out in 4 hours. The free digital proofing saved us weeks of email back-and-forth!"

Marcus T.

Founder of VZN Streetwear

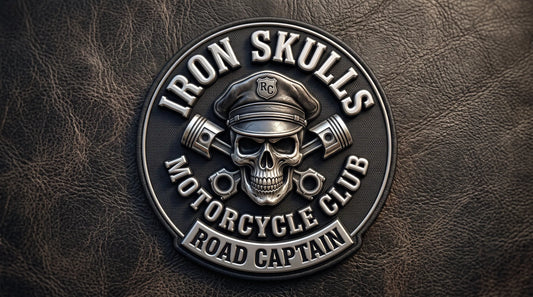

"Heavy-Duty Quality That Lasts"

"Our club vests take a beating in the rain and wind. The high-density polyester threads fully sealed the EVA foam core as promised. No water absorption, no deformation after months on the road. The merrowed border on the custom shields looks incredibly substantial."

Dave K.

Road Captain, Iron Skulls Motorcycle Club

"The Perfect Hybrid Solution"

"Our logo has a subtle color gradient inside a bold frame. I didn't think 3D puff could handle it, but their hybrid solution—sublimated print base with 3D puff borders—was perfect. Legible fine text with beautiful tactile presence. 100% machine wash safe!"

Sarah L.

Creative Director, Apex Fitness Apparel

Frequently Asked Questions & Start Your 3D Patch Project Today

Got questions about thread counts, turnaround times, or fabric compatibility for custom 3D puff embroidery patches?
Explore our comprehensive technical FAQ below. Ready to bring your dimensional designs to life?
Submit your artwork today for a risk-free digital evaluation.

Q1: What fabrics are compatible with custom 3D puff embroidered patches?

Q2: What happens if my logo text is smaller than the required 12.5mm minimum height?

FrequeQ3: How do I apply custom 3D iron-on patches using a commercial heat press?ntly Asked Questions?

Q4: Are there color limits for custom 3D puff embroidered patches?

Q5: What is your standard turnaround time, and do you offer rush production?

Ready to Make Your Brand Stand Out in 3D?

Stop guessing if your vector graphic or logo is compatible with three-dimensional embroidery. Let our master apparel digitizers handle the technical verification completely free of charge.

No Minimum Order Quantity (No MOQ)
100% Free Digitizing & 3D Digital Mockup within 24 Hours
Risk-Free Order Setup — Production Only Starts After Your Final Sign-off
