3D Embroidered Badge Adhesive Backing Guide | Heat Seal Glue, Cold Peel, Hot Peel & Permanent Bond Standards

Most customers assume patch glue backing is a universal simple process. However, 3D embroidered badges have completely different adhesive requirements compared with flat embroidery.

Flat patches are thin, flat and tension-free, so ordinary glue can bond firmly. Pure 3D embroidery badges have thick foam interlayers, uneven stereo tension, and continuous upward rebound force. Low-quality or flat-patch glue will fail quickly: bubble hollowing, edge warping, local separation, and complete peeling after machine washing.

3D-specific adhesive backing is not simple glue spraying, but a complete industrial lamination system including full-coverage hot melt coating, vacuum exhaust, constant-temperature fusion, and edge reinforcement sealing. Different stereo thicknesses, badge sizes and usage scenarios require different glue types and pressing parameters.

This industrial guide fully standardizes 3D badge adhesive backing craft, including permanent heat seal glue, cold peel, hot peel, and temporary glue rules. It solves all common glue failure defects and establishes long-term washable, anti-peel, bubble-free bonding standards for custom 3D embroidered badges.

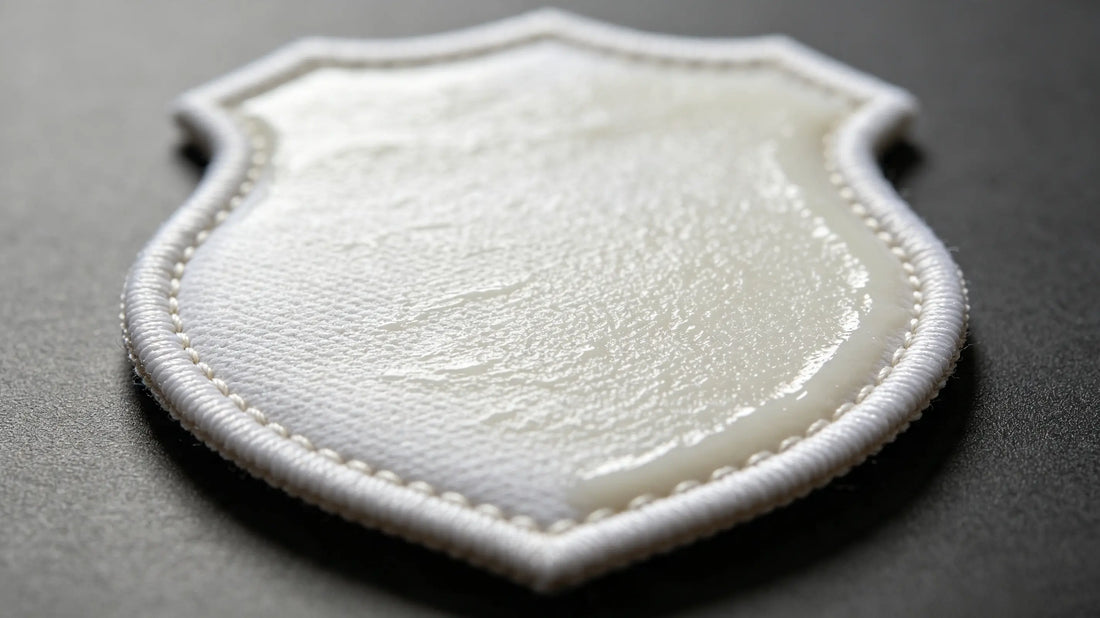

Custom 3D embroidered badges adopts exclusive 3D stereo full heat-seal lamination for all glue-back orders. We match glue thickness and hot-press parameters according to badge stereo height to ensure zero bubbles, zero hollow gaps, firm edge adhesion and industrial-grade washing durability.

Part 1: Why 3D Embroidery Badges Need Special Glue Standards

Three physical characteristics make 3D badges impossible to use ordinary flat patch glue:

1. Foam rebound tension continuously pushes the glue layer upward, causing slow separation
2. Uneven stereo thickness leads to uneven stress, easily forming hidden bubbles
3. Thick badge weight creates stronger vertical pulling force, requiring higher adhesive toughness

Ordinary glue only sticks the surface; professional 3D glue fuses with the badge base fabric to form an integrated structural layer.

Part 2: Four Industrial 3D Badge Adhesive Backing Types

1. Full Heat Seal Permanent Glue (Top Industrial Standard)

Feature: Thick hot melt full coating, completely waterproof, high fusion toughness Advantages: No bubbles, no edge lifting, resistant to machine washing and high friction Best for: All formal uniforms, outdoor badges, daily wearable 3D embroidery patches Durability: 40+ machine wash cycles, permanent non-peel effect

2. Hot Peel Glue (Production Process Grade)

Feature: Soft melting under heat, peel off while hot after pressing Advantages: Smooth backing, no residual glue on fabric Best for: Mass garment factory batch iron-on production Limitation: Lower long-term washing durability than full heat seal glue

3. Cold Peel Glue (Fashion Custom Grade)

Feature: Solid glue film after cooling, peel off after full cooling Advantages: Flat neat backing surface, no warping, delicate texture Best for: Fashion apparel, high-end merch, thin 1–2mm light 3D badges

4. Temporary Removable Glue (Disposable Decorative Grade)

Feature: Weak viscosity, removable and repositionable Advantages: No residue, easy reattachment Limitation: Not washable, low friction resistance Best for: Temporary display, event decoration, non-washable custom badges

Part 3: 3D Stereo Height & Glue Thickness Matching Rules

1mm–2mm Micro & Light 3D Badges

Matching: Standard thin heat-seal glue Reason: Light weight requires moderate viscosity, keep soft hand feel without stiffness

2mm–3mm Standard Commercial 3D Badges

Matching: Medium thickness full heat-seal glue (most popular) Reason: Balanced toughness and softness, perfect for daily washing and wearing

3mm–4mm Thick High Stereo 3D Badges

Matching: Reinforced thick heat-seal glue + edge full sealing Reason: Heavy badge weight and strong foam rebound require maximum bonding strength

Part 4: Professional 3D Glue Lamination Craft Process

Qualified 3D embroidered badge glue backing strictly follows four-step industrial process:

Step 1 Full Plane Glue Coating

Cover the entire badge base without missing corners or thin spots, avoid partial weak adhesion

Step 2 Vacuum Bubble Exhaust

Remove all hidden air gaps between base fabric and glue layer, eliminate future hollow separation

Step 3 Constant-Temperature Hot Fusion

Use 125℃ fixed industrial temperature to melt glue and penetrate base fabric weave, forming integrated bonding

Step 4 Edge Reinforcement Pressing

Strengthen perimeter compression to lock edges, prevent the most common edge-lifting defect

This full process ensures the glue layer becomes part of the 3D badge structure, not just surface sticking.

Part 5: 6 Common 3D Glue Defects & Professional Fixes

1. Back Bubble Hollowing

Cause: No vacuum exhaust, air trapped during gluing Fix: Full vacuum lamination process

2. Edge Lifting & Curling

Cause: Unsealed edge + insufficient edge pressure Fix: Full perimeter edge sealing and reinforcement pressing

3. Whole Piece Peeling After Washing

Cause: Low-temperature weak fusion, glue not integrated with fabric Fix: Standard high-temperature hot melt fusion

4. Uneven Glue Surface & Hard Spots

Cause: Manual uneven gluing Fix: Machine full uniform rolling coating

5. Residual Glue on Fabric

Cause: Improper hot peel operation temperature Fix: Standard cold peel process for fashion custom orders

6. Stiff Hard Hand Feel

Cause: Over-thick glue on thin micro 3D badges Fix: Match thin glue for low-height stereo badges

Part 6: Iron-On Application Rules for 3D Badges

Unlike flat patches, 3D stereo badges require gentler scientific ironing:

1. Temperature controlled at 130℃–140℃
2. Press 15–20 seconds evenly, avoid over-heating melting foam
3. Press flat by hand after heating, wait full cooling to lock adhesion
4. Do not pull or test immediately after ironing

Correct ironing prevents stereo collapse and glue separation.

Part 7: Scenario-Based Glue Selection Standard

• Uniforms / Workwear: Permanent full heat seal glue (highest wash resistance)
• Fashion Streetwear: Cold peel glue (neat soft backing)
• Factory Batch Garments: Hot peel glue (clean production efficiency)
• Temporary Decoration: Removable weak glue (no residue)
• Outdoor / Tactical 3D Badges: Reinforced thick heat seal glue

Part 8: 2026 Updated 3D Badge Glue Craft Trend

The latest premium standard is soft integrated heat-seal glue technology: Upgrade traditional hard thick glue layer to flexible high-toughness glue film. It maintains strong washing resistance, while retaining soft fabric hand feel, avoiding rigid board-like texture. It is now the mainstream glue standard for high-end custom 3D embroidered badges.

Final Summary Core Rule

3D embroidered stereo badges cannot adopt flat patch glue technology. Thick foam rebound tension and badge weight require full-coverage vacuum heat-seal lamination. Match thin glue for light 3D, thick reinforced glue for high stereo badges, and select cold/hot peel glue according to usage scenarios. Professional integrated glue craft completely eliminates bubbles, hollow gaps, edge lifting and washing peeling defects.

Frequently Asked Questions

Q1: Are glued 3D embroidered badges washable? A: Yes, industrial full heat-seal permanent glue supports repeated machine washing.

Q2: Why do 3D patches peel easily after ironing? A: Most are caused by incomplete hot melt fusion or lack of edge sealing.

Q3: Which is better, hot peel or cold peel for 3D badges? A: Cold peel has flatter backing and better texture for fashion; hot peel is faster for mass production.

Q4: Can thick 4mm high stereo 3D badges use self-adhesive glue? A: Yes, but must use reinforced thick heat-seal glue and full edge sealing to prevent peeling.
