3D Embroidered Badge QC Defect Guide | Full Inspection Standards, Scoring Rules & Finishing Defect Fixes

Most custom patch quality standards are formulated for flat embroidery, which cannot adapt to stereo 3D embroidered badges. 3D patches integrate base fabric, EVA foam interlayer, dense stereo stitching, heat shaping and glue backing, resulting in a large number of unique defect types that do not exist in flat patches, such as height deviation, foam collapse, layered dislocation, shaping indentation and stereo unbalance.

Without exclusive 3D QC standards, defective products with unbalanced stereo, blurred layers and hidden structural flaws will flow into finished products. Different from flat patch simple appearance inspection, 3D embroidered badge final inspection covers four core dimensions: appearance stitching quality, stereo shaping uniformity, structural stability and finishing precision. Factories classify defects into major defects and minor defects with clear scoring deduction rules to ensure batch consistency and high pass rate of custom orders.

This industrial full inspection manual systematically sorts out all common 3D badge defects, classification standards, deduction rules and feasible repair schemes. It covers the whole production inspection process from semi-finished product inspection to final finished product full inspection, providing unified quality benchmark for high-end custom 3D embroidery badges.

Custom 3D embroidered badges implements strict classified QC inspection for all stereo badge orders. We eliminate all major defective products, repair minor finishing flaws, and strictly control batch height difference, stitching uniformity and shaping finish to ensure every delivered 3D badge reaches commercial premium grade.

Part 1: Core Differences Between 3D Badge QC and Flat Patch QC

Flat patch inspection only focuses on plane problems: missing stitches, wrong colors, burrs and stains. 3D embroidered badge inspection adds three exclusive stereo inspection items, which are the key to distinguishing high and low quality:

1. Stereo height uniformity: No height deviation, no local high and low fluctuation
2. Foam structural integrity: No collapse, no hollowing, no layered dislocation
3. Heat shaping flatness: No indentation, no warping, no rigid step traces

Flat quality determines surface fineness, while 3D stereo quality determines product grade and service life.

Part 2: Industrial Defect Classification Standard (Major / Minor)

Major Defects (Direct Reject, Unqualified)

All flaws that affect stereo structure, use function and overall visual effect, must be scrapped directly with no repair value:

1. Local foam collapse, overall flat stereo, unable to rebound
2. Obvious height difference, uneven stereo fluctuation, distorted layered structure
3. Large area missing stitches, hollow stitching, exposed foam gap
4. Serious edge warping, overall twisting and deformation of badge outline
5. Glue bubbling, delamination and peeling on the back
6. Serious color deviation, color bleeding and cross-color contamination

Minor Defects (Repairable, Qualified After Finishing)

Tiny finishing flaws that do not affect stereo structure and overall vision, can be repaired manually:

1. Individual tiny thread burrs and floating threads
2. Slight transition traces of layered stitching (no obvious steps)
3. Micro individual sparse stitch points without hollow gaps
4. Slight uneven hand feel in local tiny areas
5. Minimal color difference under non-direct light source

Part 3: Official QC Scoring & Pass Standard (Full Score 100)

1. Appearance stitching (40 points): Complete pattern, no missing stitches, clean thread surface, no burrs
2. Stereo uniformity (30 points): Consistent height, balanced layering, no collapse or hollowing
3. Shaping finish (20 points): Flat edge, no warping, smooth surface, no indentation
4. Back glue & fabric (10 points): Complete glue layer, clean base fabric, no stains

Pass Standard: ≥90 points 80–89 points: Secondary finished product, suitable for ordinary daily orders ＜80 points: Unqualified, rejected directly

Part 4: 8 Most Common 3D Badge Defects & Professional Fixes

1. Local Stereo Collapse

Cause: Insufficient local stitching density, insufficient foam resilience, excessive partial pressure Fix: Local supplementary dense stitching + secondary fine shaping to restore stereo fullness

2. Overall Height Unevenness

Cause: Unbalanced machine pressure, inconsistent foam thickness zoning Fix: Whole-piece unified pressure calibration, local height compensation shaping

3. Stitch Hollow Gap & Sparse Texture

Cause: Unreasonable stitch spacing, incomplete foam coverage Fix: Manual supplementary micro-stitch filling to eliminate hollow traces

4. Edge Warping & Curling

Cause: Unbalanced edge tension, insufficient edge locking pressure Fix: Edge tension shaping + perimeter reinforcement pressing, cooling and shaping fixation

5. Layered Step Trace (Rigid Transition)

Cause: No gradient transition treatment for multi-layer height difference Fix: Micro smoothing shaping to eliminate rigid step boundary

6. Surface Thread Burrs & Floating Threads

Cause: Unclean post-production trimming Fix: Fine manual trimming and finishing, clean surface texture

7. Back Glue Bubble & Hollowing

Cause: Incomplete exhaust during glue lamination Fix: Local reheating and pressing to discharge air bubbles and fit tightly

8. Fuzzy Outline & Blurred Details

Cause: Low precision stitching on tiny patterns and text Fix: Local detail reinforcement stitching to sharpen outline boundary

Part 5: Batch Consistency Inspection Standard (Core Factory Standard)

For bulk custom 3D embroidered badge orders, batch consistency is the top inspection priority:

1. Stereo height error of the whole batch ≤ ±0.1mm, no obvious height difference by visual observation
2. Unified thread color tone, no color difference between front and back batches
3. Consistent stitching density and texture fineness of all finished products
4. Unified shaping flatness, no individual warped or deformed products
5. Consistent edge finishing and glue backing effect of the whole batch

Batch consistency directly reflects the formal production level of 3D embroidered badges.

Part 6: Semi-Finished & Finished Double Inspection Mechanism

Semi-Finished Product Inspection (Before Shaping)

Check stitching integrity, foam positioning accuracy, tension balance, eliminate hidden dangers before heat shaping, avoid batch scrapping after finalization

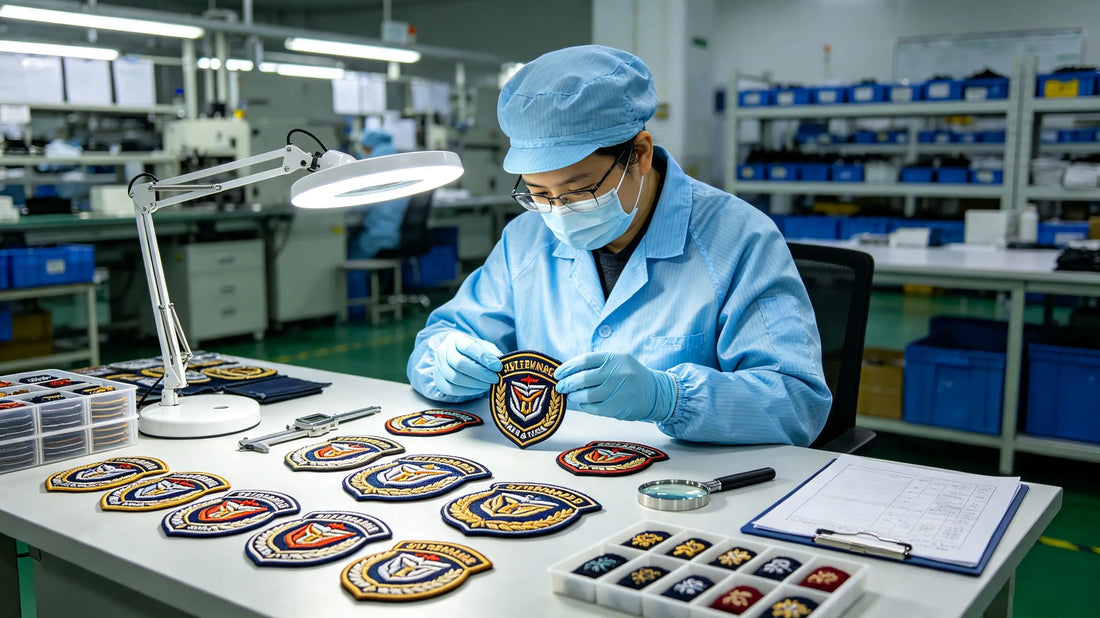

Finished Product Full Inspection (After Glue Backing)

Full inspection of stereo effect, appearance, flatness, adhesion, color and details, screen out all defective products, repair minor flaws, and grade finished products

Part 7: Defect Rate Control Standard for Premium Orders

Ordinary commercial orders: Defect rate ≤ 3% Brand high-end custom orders: Defect rate ≤ 1% Display-level sample orders: Zero defect standard, 100% full manual inspection

Strict defect rate control ensures stable and unified quality of large-batch 3D badge customization.

Part 8: 2026 Latest 3D Badge QC Trend

The latest industrial quality control standard adopts visual stereo intelligent detection system: Intelligent equipment automatically identifies height difference, collapse defects, stitching gaps and color deviation of 3D badges, realizes unified quantitative scoring, eliminates manual inspection errors, and greatly improves batch qualification rate and quality stability.

Final Summary Core Rule

3D embroidered badge quality inspection is divided into appearance stitching, stereo shaping, structural stability and finishing details. Defects are classified into major rejected defects and repairable minor defects with unified scoring pass standards. Strict semi-finished and finished double inspection, batch consistency control and targeted defect repair technology are the core of high-quality 3D badge production. Standardized QC process completely eliminates collapse, uneven height, deformation and blurred detail problems, ensuring stable and premium finished product effect of custom 3D embroidery badges.

Frequently Asked Questions

Q1: What defects will cause 3D badges to be directly rejected? A: Foam collapse, serious height unevenness, large-area missing stitches, overall deformation and glue peeling are major unqualified defects and must be scrapped.

Q2: Can minor burrs and floating threads be delivered normally? A: Yes, after professional manual trimming and finishing, it can reach full qualified standard without affecting appearance and use.

Q3: What is the qualified height error for batch 3D badges? A: The industrial standard batch height error is controlled within ±0.1mm, ensuring no visual difference.

Q4: Why do high-end orders need double inspection? A: Semi-finished inspection avoids batch hidden dangers, and finished full inspection ensures zero defective delivery, meeting brand high-quality customization requirements.
