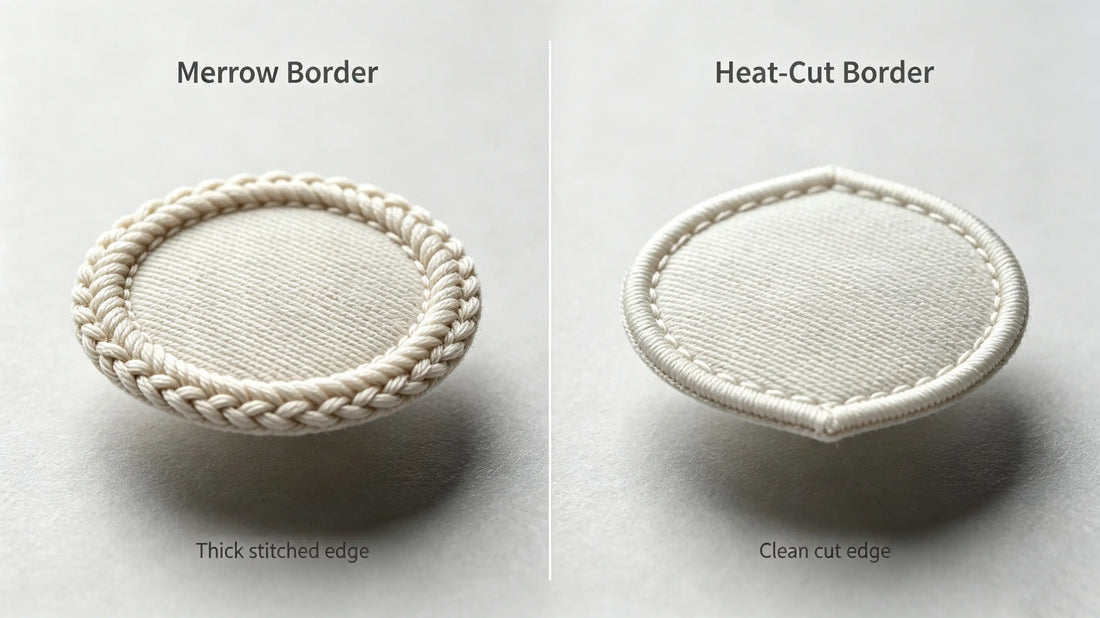

Merrow edge vs heat cut edge on 3D embroidered patches

3D Embroidered Patch Border Guide | Merrow vs Heat-Cut 3D Borders, Elevation Rules & Pro Finishing Tips

xijun cao Jul 12 20260 comments

Most customers only focus on 3D foam height and stitch density but overlook 3D patch border matching. For flat embroidered patches, heat-cut and merrow edges are interchangeable; for 3D raised patches, the border style directly determines foam stability, edge durability and overall premium texture.

Improper border selection will cause exposed foam, edge collapse, thread fraying, and uneven raised layers after washing. Unlike flat patches, 3D embroidery has unique edge wrapping logic and finishing standards. This professional guide breaks down all 3D border rules, suitable scenarios, defect causes and pro styling techniques.

Custom 3D embroidered patches applies exclusive border matching standards for all 3D orders. We use merrow edges for standard raised 3D patches and precision heat-cut edges for minimalist low-profile 3D designs to ensure perfect long-term stereo shaping.

Thick wrapped merrow edge perfectly enclosing 3D foam embroidery

Part 1: Why 3D Patch Borders Are Different From Flat Patches

Flat embroidery borders only need anti-fray sealing.

3D embroidery borders have three core missions:

Fully wrap and lock foam edges to prevent exposure
Support raised height to avoid edge collapse
Reinforce stereo layering for uniform thickness

Ordinary flat edge processing cannot bear the raised foam tension, resulting in gradual edge sinking and deformation after use. Only border-specific craft can maintain permanent 3D shaping.

Part 2: Two Mainstream 3D Patch Border Types

1. Merrow Edge (Default Best for 3D Patches)

Merrow edge is the industry standard border for 90% of 3D embroidered patches. It uses thick continuous overlock stitching to wrap the entire patch edge.

Unique 3D Merrow Edge Features

Thick three-dimensional wrapping fits perfectly with raised foam
Strong tension locks foam firmly, no edge sinking
Enhances overall stereo layering of 3D patches
Completely anti-fray, anti-collapse and wash-resistant

Advantages for 3D Embroidery

Supports 2mm–4mm high foam thickness
Reinforces uneven multi-layer 3D structures
Long-term washing without deformation
Classic high-end patch texture

Limitations

Only fits regular shapes (square, circle, shield, rectangle)
Slightly thick border, not suitable for ultra-minimal slim styles

2. Heat-Cut Edge (Low-Profile 3D Special Use)

Heat-cut edge adopts high-temperature sealing to form ultra-flat thin borders, suitable for low-height micro 3D designs.

Unique 3D Heat-Cut Edge Features

Slim flat edge without bulky stitching
Neat minimalist surface, no protruding border
Fits closely with thin fabric

Advantages for 3D Embroidery

Perfect for 1mm micro raised 3D patches
Maintains smooth and clean appearance
Lightweight without foreign body feeling

Limitations

Cannot support high foam thickness (over 2mm easily causes foam exposure)
Poor edge support for multi-layer 3D structures
Easy edge warping after repeated washing

Part 3: 3D Border Suitability By Foam Thickness

1mm Micro 3D

Best match: Heat-cut edge
Reason: Low raised height requires slim flat border for delicate effect

2mm Standard 3D

Best match: Merrow edge (universal)
Reason: Balanced thickness, merrow wrapping locks foam perfectly

3mm Premium 3D

Best match: Thickened merrow edge
Reason: High foam needs strong tension wrapping to prevent collapse

4mm Extreme 3D

Best match: Reinforced heavy merrow edge
Reason: Super thick foam requires full surrounding reinforcement

Part 4: Shape Matching Rules for 3D Borders

Regular Shapes (Circle, Square, Shield, Oval)

Priority: Merrow edge
Effect: Symmetrical wrapping, uniform stereo layering, stable shaping

Irregular Special Shapes

Priority: Precision heat-cut edge
Restriction: Only allow 1mm–2mm low foam height
Note: Irregular 3D patches cannot use thick merrow edges, easily cause stitching distortion

Part 5: Multi-Layer 3D Border Reinforcement Rules

For complex staggered-height 3D patches, ordinary single-layer borders are insufficient. Premium factories adopt staggered edge reinforcement craft:

Reinforce low-concave areas with dense short stitches
Wrap high-raised areas with thick merrow threads
Transition stitching at height joints to avoid step gaps
Fully seal all foam gaps to prevent water penetration

This craft ensures no edge cracking or local sinking of complex 3D mascot and portrait patches.

Part 6: Style & Scenario Matching Standards

Merrow Edge 3D Patches Best For

Streetwear jackets, denim vests, biker outfits
Bold mascot patterns and thick letter 3D patches
Outdoor high-wear frequent washing clothing
Fashion decorative patches pursuing stereo texture

Heat-Cut Edge 3D Patches Best For

Minimalist brand logo low-profile 3D upgrades
Thin casual hoodies and daily apparel
Small chest micro-raised logo patches
Clean style formal low-key 3D designs

Part 7: Common 3D Border Defects & Causes

1. Foam Exposure at Patch Edge

Cause: Heat-cut edge used for over 2mm thick foam; insufficient edge sealing

2. Edge Sinking & Collapse

Cause: No merrow reinforcement for high 3D foam; loose border stitching

3. Border Warping After Washing

Cause: Mismatched flat edge for raised 3D structure, poor tension resistance

4. Uneven Border Height

Cause: Irregular shape forced merrow processing, distorted wrapping stitches

5. Fuzzy Edge Layering

Cause: Low-density border stitching unable to support 3D stereo tension

Part 8: Pro Tips for Perfect 3D Border Finishing

All 2mm+ standard 3D patches prioritize merrow edge for stability
Irregular custom 3D shapes control foam height within 2mm to avoid defects
Multi-layer complex 3D designs must add edge reinforcement stitching
Minimal brand micro-3D logos choose heat-cut edge for slim premium look
Outdoor durable 3D patches use thickened merrow thread for anti-wear protection

Final Summary Core Rule

Merrow edge is the gold standard for most 3D embroidered patches, ideal for 2mm+ thick foam and regular shapes with stable stereo shaping. Heat-cut edge suits only 1mm–2mm low-height micro 3D and minimalist irregular designs. Correct border matching eliminates edge collapse, foam exposure and warping defects.
