3D Embroidered Patches Foam Guide | Foam Thickness, Layer Height, Collapse Prevention & Premium Craft Secrets
Most failed 3D embroidered patches are not ruined by poor stitching, but by unqualified foam materials and incorrect foam craftsmanship. Many factory low-grade foam flattens after one wash, collapses under slight extrusion, or produces uneven bumpy surfaces that destroy the entire patch texture.
High-end 3D embroidery is not simply “thick embroidery”, it is a scientific combination of high-elastic foam thickness control, layered height matching, tight edge wrapping and pressure-resistant stitching. This exclusive industry foam guide reveals the core premium standards that most customers cannot distinguish, helping you avoid defective flat 3D patches.
Custom 3D embroidered patches uses imported high-elastic EVA foam for all 3D orders, with strict layered height standards and anti-collapse stitching technology to ensure every 3D patch remains plump and three-dimensional long-term.
Part 1: What Is 3D Embroidery Foam?
3D embroidery foam is a special high-elastic closed-cell EVA foam material customized for garment embroidery. Unlike ordinary craft foam, embroidery foam is lightweight, pressure-resistant, washable and high-temperature resistant.
Ordinary foam is soft and easy to flatten; premium embroidery foam has memory elasticity, which can rebound automatically after extrusion and maintain fixed raised height permanently.
Core Foam Material Features
- Closed-cell structure, no water absorption
- High elasticity memory rebound
- High temperature resistance, no melting during embroidery
- Lightweight, no heavy wearing feeling
- Tightly lock stitch structure to prevent collapse

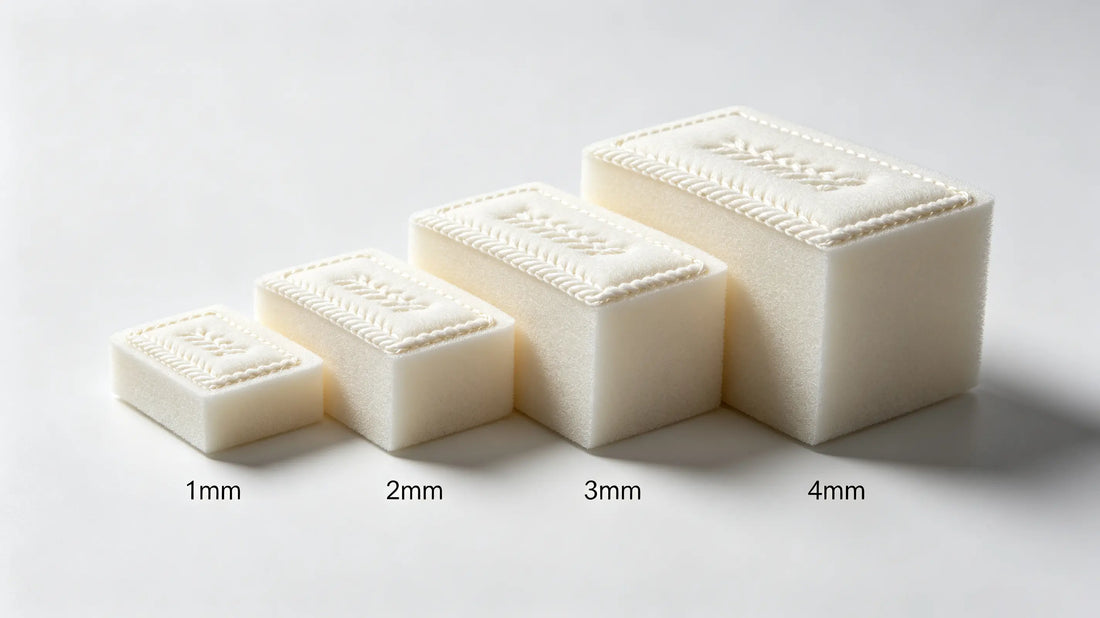

Part 2: Four Standard 3D Foam Thickness Grades
1. Low Profile 1mm Foam (Slight 3D)
- Effect: Micro raised, subtle stereo sense
- Feature: Almost no foreign body feeling, ultra-fit
- Best for: Logo borders, letter outlines, subtle texture upgrades
- Advantage: Zero collapse risk, super durable
2. Standard 2mm Foam (Most Popular)
- Effect: Moderate three-dimensional sense, balanced plumpness
- Feature: Classic 3D texture, not bloated, not flat
- Best for: Most mascots, icons, letter patches, daily fashion patches
- Advantage: Universal size, stable washing resistance
3. Premium 3mm Foam (Obvious Stereo Effect)
- Effect: Strong raised layering, obvious shadow texture
- Feature: High-end plump surface, strong visual impact
- Best for: Jacket back large patches, decorative fashion patches
- Note: Requires bold design to avoid hollow collapse
4. Extreme 4mm Foam (Super High 3D)
- Effect: Ultra-thick stereo, prominent embossed effect
- Feature: Maximum layering and high-grade texture
- Best for: Display patches, collection patches, stage decoration
- Limitation: Not suitable for thin fabric clothing
Part 3: Single-Layer vs Multi-Layer 3D Foam Craft
Single-Layer 3D Embroidery
Single foam thickness for the whole patch, unified raised height.
- Clean and neat surface
- Stable and not easy to deform
- Suitable for simple logos, single-color patterns
Multi-Layer Staggered 3D Embroidery
Different parts use different foam thicknesses to form uneven height layering.
- Simulates real 3D sculpting effect
- Strong shadow depth
- Super high-end custom texture
- Suitable for complex mascots, animal patterns, portrait designs
Part 4: Why Ordinary 3D Patches Collapse Easily
1. Low-Quality Open-Cell Foam
Cheap foam absorbs water, loses elasticity after washing, and cannot rebound, resulting in permanent flattening.
2. Insufficient Stitch Density
Loose stitches cannot lock the foam tightly. The foam shifts and collapses under extrusion.
3. Improper Foam Cutting
Rough foam cutting leaves gaps, causing local sinking and uneven surface.
4. Overly Thin Design Lines
Fine lines cannot wrap foam completely, leading to partial collapse and hollow spots.
Part 5: Premium Anti-Collapse Craft Standards
1. Full Coverage Tight Stitching
100% stitch coverage on foam areas, no blank gaps, firmly lock foam position.
2. Edge Reinforcement Wrapping
All foam edges adopt dense wrapping stitches to prevent edge warping and layer separation.
3. Reasonable Thickness Matching
Thick foam only for bold solid areas; thin foam for transition details to balance overall flatness.
4. High-elastic Memory Foam Material
Imported closed-cell foam ensures rebound performance after repeated washing and squeezing.
Part 6: Design Rules By Foam Thickness
1mm Micro 3D Design Rule
Suitable for all designs, even fine text, no collapse risk, safest upgrade from flat embroidery.
2mm Standard 3D Design Rule
Lines ≥2mm, solid color blocks, regular shapes, most versatile and error-free.
3mm Premium 3D Design Rule
Only for bold patterns, large color blocks, avoid isolated thin lines and small dots.
4mm Extreme 3D Design Rule
Only for large-area solid patterns, full coverage designs, purely decorative patches.
Part 7: Washing & Extrusion Resistance By Grade
- 1mm Foam: 100% wash-proof, extrusion-proof, zero deformation
- 2mm Foam: Excellent durability, suitable for daily repeated washing
- 3mm Foam: Good durability, avoid long-term heavy pressure stacking
- 4mm Foam: Strong stereo effect, need natural flat storage
Part 8: Common 3D Foam Customization Mistakes
- Use 3mm+ thick foam for tiny text → serious collapse and blurring
- Choose low-grade ordinary foam for daily wear → flatten after first wash
- Single thin line with thick foam → hollow and uneven surface
- Overusing multi-layer foam for simple logos → messy and exaggerated layering
- Stacking heavy objects on 3D patches → permanent foam deformation
Part 9: How To Identify High-Quality 3D Foam Patches
- Surface plump and uniform, no sunken spots
- Edges tight and neat, no foam exposure
- Consistent raised height, no uneven bump
- Hard squeeze can rebound quickly
- No deformation after soaking and drying
Final Summary Core Rule
1mm for subtle upgrades, 2mm for standard fashion 3D, 3mm for high-impact decoration, 4mm for extreme display effects. Premium closed-cell elastic foam + dense wrapping stitches = zero-collapse long-term 3D patches. Match foam thickness according to design boldness to avoid defects.
Frequently Asked Questions
Q1: Will 3D foam patches flatten after washing?
A: Premium closed-cell foam maintains full elasticity; only low-grade foam flattens.
Q2: What is the best foam thickness for custom patches?
A: 2mm foam is the most balanced and universal choice for most designs.
Q3: Can tiny letters be made into 3D embroidery?
A: Only 1mm micro 3D is available; thick foam will cause text collapse.
Q4: Is multi-layer 3D foam better than single-layer?
A: Multi-layer is more high-end for complex patterns; single-layer is neater for simple logos.
