Custom 3D Embroidered Patches for Military Units, Tactical Teams & Veteran Organizations | Durability, Backing & Camouflage Compatibility Guide

Unit morale and visual identification are critical for tactical teams, veteran associations and airsoft communities. Tactical uniforms, plate carriers, backpacks and headwear are common platforms for displaying unit crests, mission patches and morale artwork. While flat embroidery, woven patches and PVC insignia are widely used, 3D Embroidered Patches deliver striking dimensional detail that stands out against camouflage and dark tactical fabrics.

The core construction of tactical-grade 3D Embroidered Patches uses foam stereo technology: high-tensile polyester embroidery threads fully wrap closed-cell EVA foam bonded to polyester twill base fabric, forming stable three-dimensional raised texture. Flat embroidery lacks definition on busy camouflage textiles; printed patches wear thin quickly under field friction; rigid PVC patches can snag on branches and webbing during outdoor movement. Foam-based 3D Embroidered Patches remain pliable, snag-resistant and abrasion-tolerant, suitable for long-duration field activities, training exercises and all-season outdoor use.

Tactical gear undergoes harsh field conditions: constant friction against equipment, mud, dust, variable temperature and frequent cleaning. Low-quality patches suffer crushed foam, loose threads, exposed foam borders and premature colour fading after limited field use. This professional guide focuses entirely on foam-based 3D Embroidered Patches for tactical and veteran applications, clearly distinguishing them from flat embroidery, PVC rubber patches and metal insignia. It covers abrasion-resistant material selection, tactical graphic layout standards, backing choices and uniform/gear compatible production specifications.

Part 1: Why Tactical Teams & Veteran Groups Choose 3D Embroidered Patches

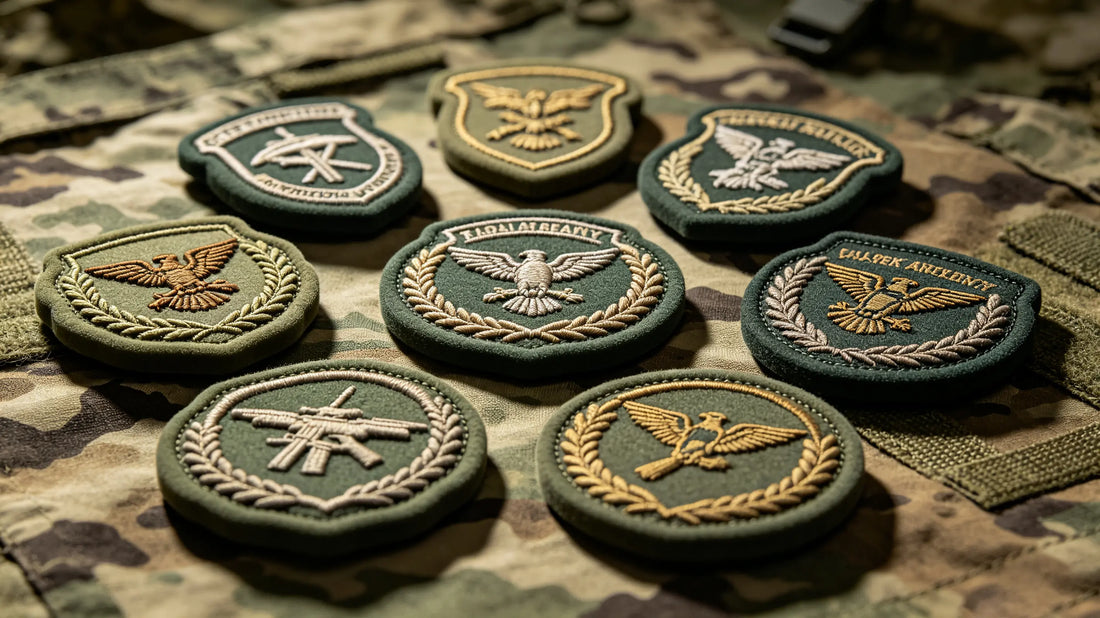

1.1 High-Visibility Unit Insignia on Camouflage

Flat embroidery can visually blend into camouflage patterns. 3D Embroidered Patches create distinct raised contours, ensuring unit crests and morale graphics remain recognizable on multicam, woodland and solid tactical fabrics. The textured surface improves identification during team activities and gatherings.

1.2 Flexible, Low-Snag Design for Field Operations

Hard rigid patches easily catch on vegetation, webbing and equipment. Foam 3D Embroidered Patches maintain soft flexibility, conforming to curved vests and backpack surfaces while minimizing snag hazards during movement.

1.3 Strong Abrasion & Fade Resistance

Premium 3D Embroidered Patches built with full edge wrapping stitches and lightfast polyester threads resist thread fraying and colour fading under continuous outdoor exposure and gear scrubbing. They outlast cheap printed decals and thin woven patches.

1.4 Flexible Limited-Run Commemorative Production

Groups can maintain permanent standard unit patches, alongside limited-edition designs for training deployments, unit anniversaries, veteran memorial events and team competitions. Communities refresh gear visuals without fully replacing uniforms.

1.5 Universal Compatibility with Tactical Equipment

3D Embroidered Patches can be applied to tactical vests, field caps, combat shirts, backpacks and duffle bags. Teams build consistent visual branding across all personal gear.

Part 2: Core Design Guidelines for Tactical & Veteran 3D Embroidered Patches

2.1 Simplify Overly Fine Details for Foam Embroidery

Unit crests, motto text, veteran emblems and morale graphics often contain thin outlines, small lettering and delicate decorative elements. Excessively thin lines cannot support stable foam wrapping embroidery.

• Minimum uppercase letter height: 6mm for 2mm foam 3D Embroidered Patches; 8mm for 3mm high-relief foam embroidery.
• Ultra-thin graphic outlines must be thickened during artwork revision to avoid incomplete stitching and foam exposure after long-term field abrasion.

2.2 Standard Sizing Reference for Tactical Patches

• Small cap insignia patches: 3cm – 6cm
• Medium shoulder unit & chest crest patches: 7cm – 12cm
• Large morale graphic backpack patches: 13cm – 25cm

2.3 Color Matching Advice for Tactical Gear

Match thread colours to official unit colour schemes or low-visibility tactical requirements. Choose Grade 4+ UV-resistant polyester threads. Inferior threads fade rapidly under sunlight, breaking uniform visual consistency. Common selections include subdued low-visibility tones, high-contrast unit colours and classic black-grey monochrome designs.

2.4 Contour Processing Requirements

Common shapes include rectangles, ovals, shield crests, custom irregular morale silhouettes and circular unit emblems. All outer edges of 3D Embroidered Patches require continuous perimeter wrapping stitches to fully seal foam, block moisture and prevent foam exposure during field exposure and cleaning.

Part 3: Specialised Material Selection for Tactical & Veteran 3D Embroidered Patches

All materials listed below are designed exclusively for foam-based 3D Embroidered Patches, not silicone patches, metal emblems or flat embroidery.

Embroidery Thread

High tenacity polyester thread with Grade 4+ UV light fastness and abrasion resistance. Cotton thread is not suitable for field gear; cotton absorbs moisture and wears rapidly under friction.

Base Fabric

Medium-weight polyester twill. Stable twill prevents patch warping after repeated bending and temperature shifts, offering reliable support for dense foam wrapping stitches.

3D Relief Core: Closed-Cell EVA Foam

Medium-hardness closed-cell EVA foam is the standard material for tactical 3D Embroidered Patches. Overly soft foam compresses permanently under backpack and vest pressure; overly rigid foam increases snag risk in field environments.

• 2mm foam: universal choice for shoulder insignia, cap logos and most uniform applications
• 3mm foam: ideal for large morale graphics requiring prominent visual depth for team recognition

Backing Selection for Tactical 3D Embroidered Patches

✅ Hook & Loop Backing (Top Recommendation for Tactical Vests) Allows quick interchange of patches on MOLLE vests, backpacks and plate carriers. Most popular for airsoft, tactical training teams and mobile field groups.

✅ Sew-On Backing Best for permanent application on uniforms, caps and veteran commemorative apparel, delivering maximum long-term durability.

⚠️ Iron-On Backing (Limited Application) Only for stationary non-field merchandise; high heat can damage nylon tactical fabrics, and adhesive fails under repeated cleaning.

Edge Finishing Options for 3D Embroidered Patches

1. Merrow Stitched Border Heavy-duty reinforced edge finish for standard unit crests and rectangular morale patches. Resists fraying from constant friction, widely used by veteran organizations and formal tactical teams.
2. Laser Cut Edge Perfect for custom irregular morale silhouettes and unique memorial artwork. Precise laser trimming creates clean organic outlines. Manufacturers must add continuous foam wrapping stitches to seal all cut edges.
3. Hot Cut Edge Only suitable for tiny lightweight souvenir patches. Avoid hot cut edges for field gear; heat-sealed edges fray quickly under abrasion.

Part 4: Critical Production Requirements for Tactical 3D Embroidered Patches

Professional 3D Embroidery Digitizing

• Calibrate balanced stitch density to avoid over-compression flattening foam after long-term friction and gear folding
• Mandatory full foam edge wrapping stitches to completely cover foam and block water intrusion
• Add surrounding stabilizing running stitches to minimise edge curling in variable field temperatures and humidity

Pre-Production Sample Confirmation

Unit and veteran group orders require consistent colour, size and texture across all gear patches. Always approve physical pre-production samples before bulk manufacturing. Digital mockups cannot replicate real foam height, stitch tightness and colour accuracy. For large orders, complete simulated abrasion and UV exposure testing on samples.

Batch Color Consistency Control

All 3D Embroidered Patches within one order use identical thread lots to eliminate colour variation, ensuring uniform insignia across all team members’ equipment.

Part 5: Application & Care Tips for Tactical Gear with 3D Embroidered Patches

1. Use heavy-duty polyester sewing thread when attaching sew-on 3D Embroidered Patches to nylon uniforms and backpack fabrics.
2. Avoid placing oversized patches on high-contact shoulder areas to reduce continuous foam compression during long missions.
3. Clean tactical gear using mild neutral detergent; avoid harsh chemical solvents that degrade embroidery threads.
4. Air dry gear naturally; high-temperature machine drying will damage internal foam structure.
5. Never iron directly onto raised foam embroidery surfaces.

Part 6: Common Defects of Tactical 3D Embroidered Patches & Solutions

1. Embroidery thread fades after long outdoor field use

Cause: Low UV-resistant embroidery thread Solution: Specify Grade 4+ lightfast polyester thread for all tactical and veteran 3D Embroidered Patches

2. Raised foam surface becomes permanently flat

Cause: Overly soft EVA foam or over-dense stitch compression Solution: Select medium-hardness closed-cell foam and adopt balanced digitizing parameters for 3D Embroidered Patches

3. Foam exposed from patch edges after field wear

Cause: Missing full perimeter wrapping stitches Solution: Include full foam edge wrapping requirements within formal production specifications for every 3D Embroidered Patch

4. Hook & Loop backing separates from patch

Cause: Weak thermal bonding Solution: Require industrial heat press bonding for hook and loop backing during production

5. Patch edges curl after repeated gear cleaning

Cause: Insufficient stabilizing stitches or thin base twill Solution: Upgrade to medium-weight twill and add reinforcing running stitches during digitizing

Part 7: Maintenance Guidance for Gear with 3D Embroidered Patches

• Brush off surface dirt gently before washing, avoid vigorous scrubbing directly on embroidered surfaces
• Avoid bleach and strong alkaline cleaners that discolour threads
• Air dry in shaded space, avoid prolonged direct sunlight exposure
• Do not stack heavy equipment pressing onto patches during storage to preserve stereo foam shape
• Avoid frequent high-temperature machine washing

Part 8: 2026 Industry Trend for Tactical & Veteran 3D Embroidered Patches

Tactical teams, airsoft communities and veteran associations are increasingly adopting foam-based 3D Embroidered Patches as an upgrade from flat embroidery and PVC patches. Reliable abrasion resistance, uniform foam thickness and sturdy edge construction become core purchasing standards. Custom unit insignia, subdued morale patches and veteran memorial designs maintain steady demand. Small-batch custom orders support local training teams and annual veteran gatherings. Hook & loop backed patches dominate tactical vest orders, while sew-on laser-cut designs are preferred for commemorative veteran merchandise. Buyers reject low-quality patches with thin foam, incomplete edge wrapping and poor outdoor colour fastness.

Final Summary Core Rule

Custom 3D Embroidered Patches constructed with thread-wrapped closed-cell foam deliver high-visibility, abrasion-resistant three-dimensional insignia for tactical vests, uniforms, backpacks and veteran apparel, with clear advantages over flat embroidery, PVC patches and metal emblems. Hook & loop backing is the top choice for interchangeable field gear patches, while sew-on backing suits permanent uniform and commemorative use. Design needs to balance detailed unit artwork and embroidery production feasibility, and production must enforce full foam edge wrapping and UV-resistant polyester thread. With standardized material selection and professional 3D embroidery digitizing, foam embroidered patches retain stereo shape and colour stability through training activities, field deployments and years of outdoor use.

Frequently Asked Questions

Q1: Which backing is best for morale patches on tactical MOLLE vests? A: Industrial bonded hook & loop backing is strongly recommended, enabling quick patch swapping for different missions and events.

Q2: Can subdued low-visibility unit crests be manufactured as 3D Embroidered Patches? A: Yes. Adjust colour palette to muted tactical tones and thicken thin lettering to meet foam embroidery minimum dimension standards.

Q3: Are 3D Embroidered Patches suitable for lightweight nylon combat shirts? A: Yes. Select 2mm foam variants to keep patches flexible and avoid adding unnecessary bulk to thin uniform fabrics.

Q4: What foam thickness works best for standard shoulder unit patches? A: 2mm medium-hardness closed-cell foam provides balanced lightweight depth; 3mm foam is reserved for large backpack morale graphics.
