3D Embroidery Compression & Shaping Guide | Heat Setting, Pressure Calibration & Anti-Deformation Industrial Standards

Many people believe that 3D patch stereo effect is completely created by foam thickness. In fact, foam only provides raw height support. The final stereo neatness, flatness, height uniformity, texture compactness and long-term shape stability all depend on industrial compression and heat shaping technology.

Without professional heat setting, newly embroidered 3D patches have loose foam structure, uneven surface height, tiny internal air bubbles, and unstable rebound tension. After simple wearing or washing, they will gradually bulge, sink, warp, or lose stereo layering. Low-grade factories skip fine shaping steps, resulting in patches that look qualified out of production but deform rapidly in daily use.

Pure 3D shaping is a precise physical calibration process including graded pressure compression, constant temperature setting, regional tension balancing, and slow cooling fixing. This professional guide standardizes all 3D shaping parameters, solves bubble, warping, uneven height and loose texture defects, and establishes industrial stable shaping standards for all pure 3D patches.

Custom 3D embroidered patches adopts strict three-stage heat compression shaping for all pure 3D orders. We match pressure and temperature according to foam thickness, patch size and pattern structure, ensuring zero bubbles, zero height deviation, zero post-production deformation, and permanently fixed sculpted stereo texture.

Part 1: Why 3D Patches Must Have Professional Heat Shaping

Flat embroidery only needs simple ironing flat finishing, while pure 3D stereo structure requires professional shaping for three core reasons:

1. Newly stacked foam and stitching contain random internal air gaps, causing uneven surface floating
2. Embroidery tension distribution is unbalanced during stitching, leading to natural warping tendency
3. Foam molecular structure is unstable before heat setting, easy to shrink, bulge or fatigue

Heat shaping is the final process to lock stereo shape, fix molecular structure, and unify overall tension. Without this step, 3D patches are semi-finished unstable products.

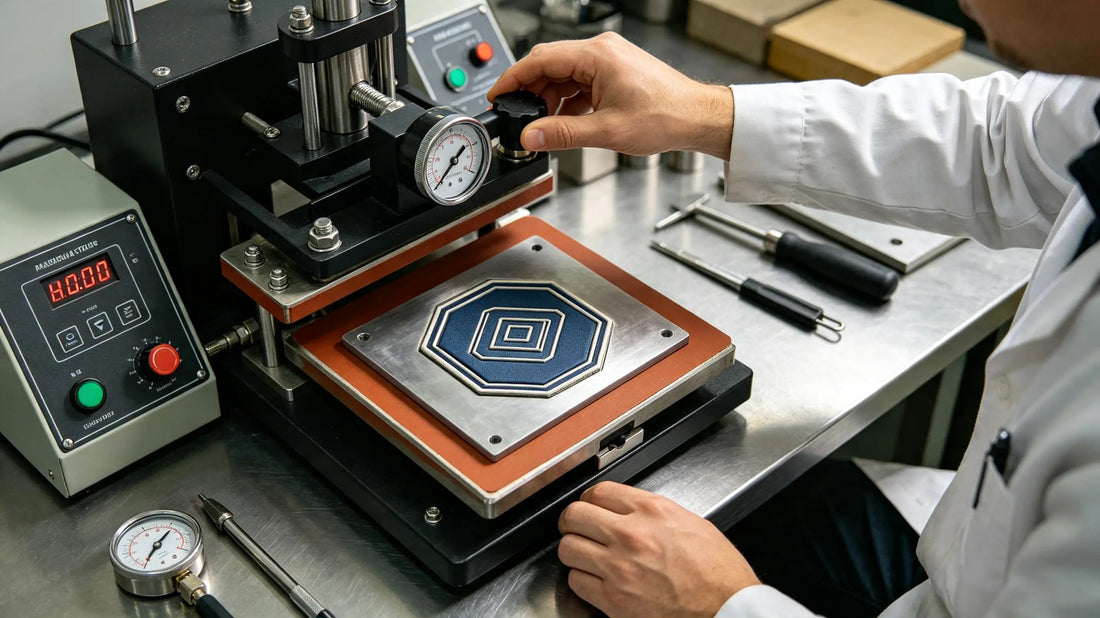

Part 2: Three-Stage Industrial 3D Shaping Process

Stage 1: Pre-Pressing Bubble Exhaust

Low-pressure pre-compression to discharge internal residual air, eliminate hollow bubbles and loose gaps, lay flat foundation for overall stereo surface.

Stage 2: Constant-Temperature Stereo Setting

Medium standard pressure + fixed industrial temperature to reshape foam structure, unify overall height, balance stitch tension, and fix basic stereo outline.

Stage 3: Slow Cooling Stereo Locking

Natural slow cooling shaping instead of rapid cooling, prevent tension rebound and secondary warping, permanently lock sculpted texture.

This three-step process ensures 3D patches achieve maximum structural stability.

Part 3: Foam Thickness Graded Pressure Standards

1mm Micro 3D

Light soft pressure + low temperature, protect ultra-thin foam from over-compression and height loss

2mm Standard 3D

Balanced medium pressure + standard temperature, most stable universal shaping parameter

3mm Premium 3D

Enhanced pressure + extended heating time, fully penetrate thick foam and eliminate internal gaps

4mm Extreme High 3D

Zoned high-pressure reinforcement + multi-cycle shaping, solve thick foam uneven compression problem

Part 4: Size & Structure Adaptive Shaping Rules

Small Mini Patches (2–5cm)

Overall uniform pressure, fast heating and fast cooling, retain delicate precision detail

Standard Medium Patches (5–12cm)

Factory standard parameter shaping, balanced tension and stable stereo effect

Large Back Patches (12cm+)

Regional segmented pressure calibration, center reinforcement + edge balanced shaping, prevent central hollow and edge warping

Irregular & Asymmetric Patches

Dynamic adaptive pressure: narrow area low pressure, wide solid area high pressure, balance overall tension

Part 5: 6 Common Shaping Defects & Professional Solutions

1. Internal Hollow Bubbles & Bumpy Surface

Cause: Missing pre-pressing exhaust process Fix: Add low-pressure bubble exhausting stage before formal shaping

2. Overall Uneven Height

Cause: Single fixed pressure for different structural areas Fix: Zoned differentiated pressure calibration

3. Edge Warping & Curling

Cause: Unbalanced edge tension + rapid cooling rebound Fix: Edge tension locking + slow cooling setting

4. Over-Compressed Flat Stereo

Cause: Excessive pressure and over-high temperature Fix: Thickness-matched graded pressure reduction

5. Loose Spongy Unfixed Texture

Cause: Insufficient shaping time and incomplete molecular setting Fix: Extended constant-temperature holding time

6. Local Sinking & Dents

Cause: Uneven machine platform pressure Fix: Platform leveling + local auxiliary cushion shaping

Part 6: Temperature & Time Industrial Golden Parameters

Pure 3D shaping follows fixed non-negotiable industrial standards:

• Standard temperature range: 120℃–135℃ (safe for foam and thread, no shrinkage or discoloration)
• Micro 3D holding time: 15–20 seconds
• Standard 3D holding time: 20–25 seconds
• Thick high 3D holding time: 25–35 seconds

Too high temperature melts foam; too low temperature fails to shape. Precise parameter matching is the core of qualified shaping.

Part 7: Post-Shaping Quality Inspection Standards

After heat compression, all 3D patches must pass four QC checks:

1. Full surface flatness, no bumps, no dents, no bubbles
2. Overall consistent height, no local high-low deviation
3. Flat edge fitting, no warping or curling
4. Stable rebound elasticity, no soft collapse after extrusion

Only fully qualified shaped patches can enter packaging and delivery.

Part 8: 2026 Updated Premium 3D Shaping Trend

The latest industry standard adopts intelligent pressure adaptive shaping system: The machine automatically identifies patch thickness, size, shape and structure, independently allocating pressure, temperature and time. It completely solves the traditional problem of manual parameter error, achieving 100% consistent batch stereo shaping effect for large orders.

Final Summary Core Rule

Foam creates 3D height, while heat compression shaping locks 3D quality. Three-stage bubble exhaust, constant-temperature setting and slow cooling locking eliminate bubbles, uneven height, warping and loose texture defects. Scientific graded pressure and temperature matching according to foam thickness and patch structure ensure stable, uniform, permanently fixed stereo texture for all pure 3D embroidered patches.

Frequently Asked Questions

Q1: What happens if 3D patches skip heat shaping? A: Unfixed foam and tension cause bubble bulging, edge warping, uneven height and rapid deformation after wearing and washing.

Q2: Can over-pressure damage 3D stereo effect? A: Yes, excessive pressure compresses foam flat, losing stereo layering and sculpted texture.

Q3: Why do large 3D patches easily warp? A: Unbalanced internal tension and uneven cooling without zoned pressure calibration.

Q4: Is heat shaping safe for all thread colors? A: Standard industrial 120–135℃ constant temperature causes no discoloration or thread damage.
