3D Embroidered Patch Thread Density Guide | Stitch Count Grading, Tightness Standard & Texture Uniformity Rules

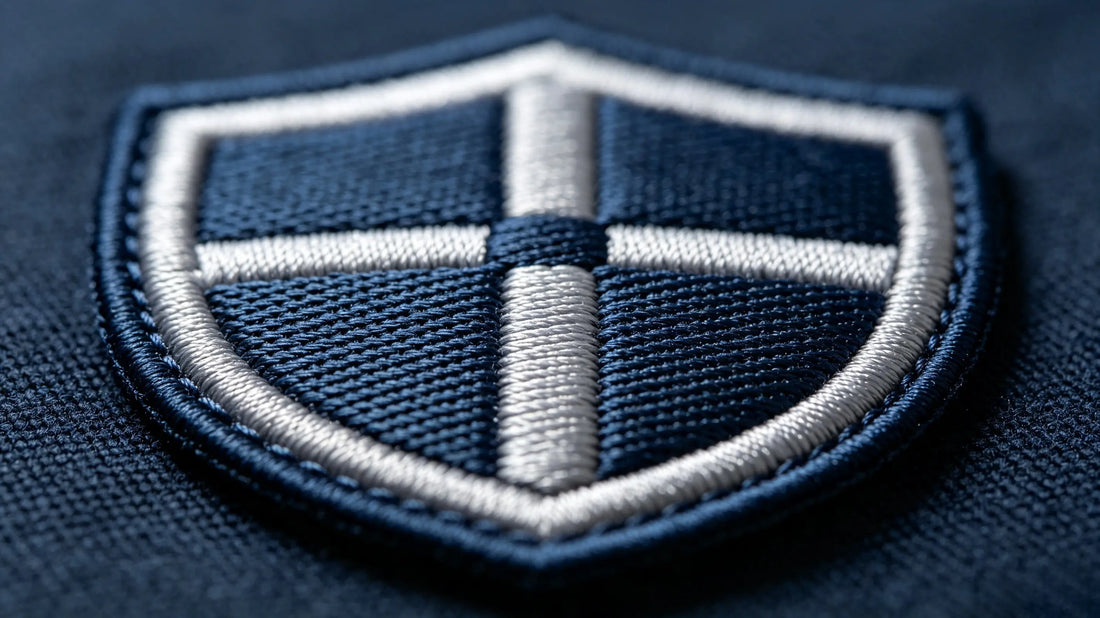

Most customers evaluate 3D embroidered badges by stereo height and visual appearance, ignoring one decisive internal indicator: thread density and stitch tightness. For ordinary flat embroidery badges, sparse stitches only affect surface fineness. But for 3D embroidered patches, stitch density directly determines stereo plumpness, surface smoothness, structural firmness and repeated washing service life.

A complete 3D embroidery badge is composed of base fabric, foam interlayer, embroidery thread and backing material. The foam layer must be fully wrapped and locked by stitching to maintain fixed stereo shape. Sparse stitching cannot fully cover and restrain foam, forming tiny surface gaps, sunken texture and insufficient three-dimensional sense. After friction and washing, foam easily shifts locally. On the contrary, over-tight stitching excessively squeezes foam, resulting in surface ripples, outline distortion, stiff hand feel and permanent loss of stereo height.

Unlike flat embroidered badges that adopt unified density layout, qualified 3D embroidered patches require a graded zoned density system. Different foam thickness, badge size, foreground and background layers, local raised and flat areas all need independent stitch spacing and tension calibration. This professional industrial guide sorts out complete density matching rules for 3D embroidery badges, fundamentally solves hollow gaps, mottled surface, outline distortion and unstable stereo defects.

Custom 3D embroidered patches implement full density grading calibration for all custom badge orders. We adjust stitch spacing, thread tightness and regional density according to stereo height and pattern structure of each embroidery badge, ensuring every finished patch has smooth plump surface, zero thread gaps, stable stereo shape and excellent washing resistance.

Part 1: Why Thread Density Matters More for 3D Embroidered Badges

Stitches on flat embroidery badges only cover the base fabric surface without bearing continuous structural pressure. Stitches on 3D embroidered patches undertake three core missions: cover foam interlayer, lock stereo shape and balance overall tension of the badge.

1. Stitches wrap foam tightly to prevent internal displacement and local collapse of the embroidery badge
2. Reasonable dense stitching fills surface voids to form plump and uniform stereo texture
3. Balanced stitch tension fixes foam structure and improves anti-friction and anti-wash performance

Density only affects appearance for flat badges; density determines the service life and structural stability of 3D embroidered patches.

Part 2: Four Industrial 3D Stitch Density Grades for Embroidery Badges

Grade 1 Ultra-Fine Density (Mini Text & Thin Detail)

Feature: Minimum stitch spacing, ultra-dense filling Applicable: Tiny lettering, thin contour lines, mini logo badges, delicate graphic details Effect: Zero missing gaps, sharp edge contour, no fuzzy burrs

Grade 2 High Density (Foreground Main Pattern)

Feature: Full coverage dense stitching, evenly distributed arrangement Applicable: Core brand logos, main graphic elements, local raised highlight zones of badges Effect: Maximize stereo fullness, plump surface texture, provide strong structural support

Grade 3 Standard Density (Background & Transition Area)

Feature: Balanced stitch spacing, moderate tightness Applicable: Background filling, layered transition zones, large flat areas of embroidery badges Effect: Smooth flat surface, natural layering, avoid obvious compression traces

Grade 4 Controlled Loose Density (Special Vintage Style)

Feature: Properly relaxed stitching, flexible wrapping Applicable: Distressed vintage style badges, skin-friendly lightweight 3D patches Effect: Natural worn texture, soft hand feel without rigid compression

Part 3: Foam Height & Density Matching Golden Rules for 3D Badges

1mm Micro 3D – Ultra-Fine Density

Thin foam interlayer cannot withstand large stitch spacing. Ultra-fine dense stitching prevents foam leakage and incomplete coverage, retaining delicate low-profile stereo precision for small embroidery badges.

2mm Standard 3D – High Balanced Density

Universal commercial standard for custom 3D embroidered patches. Achieve full coverage without over-compression, balancing stereo plumpness and comfortable hand feel for most uniform, hat and backpack badges.

3mm Premium 3D – Reinforced High Density

Thick foam interlayer requires denser stitching support to avoid internal hollow gaps, presenting full high stereo effect for tactical badges, motorcycle club emblems and souvenir patches.

4mm Extreme High 3D – Max Density Locking

Super thick stereo structure needs maximum stitching wrapping density to resist extrusion deformation, keep upright shape for high-end display-level large embroidery badges.

Part 4: Zoned Density Differentiation Technology for Premium Badges

High-end custom 3D embroidered patches abandon single unified density and adopt precise zone management:

1. Foreground raised layer: Increase density by 15% for stronger fullness and structural support
2. Background flat layer: Adopt standard density to prevent rigid compression traces
3. Thin line & text area: Ultra-fine density to guarantee clear detail without blurring
4. Large solid filling area: Even balanced density to avoid uneven patchy texture
5. Edge boundary zone: Slightly increased locking density to strengthen anti-fray performance

Zoned density simultaneously ensures detail precision, overall plumpness and long-term durability of embroidery badges.

Part 5: 6 Common Density Defects & Professional Solutions

1. Visible Thread Gaps & Hollow Surface

Cause: Insufficient stitch density, excessive stitch spacing Fix: Upgrade high-density filling and reduce stitch interval for the embroidery badge

2. Over-Compressed Rigid Texture

Cause: Over-tight stitch tension + excessive density Fix: Relax partial stitch tightness, switch to calibrated balanced density

3. Uneven Patchy Surface

Cause: Random uneven stitch distribution during embroidery Fix: Whole-piece unified density calibration and consistent spacing arrangement

4. Weak & Collapsible Stereo

Cause: Sparse stitching unable to support foam interlayer structure Fix: Add reinforced wrapping stitching for stereo support areas

5. Distorted Rippled Surface

Cause: Local over-tight stitching squeezing foam unevenly Fix: Regional tension balancing and targeted density adjustment

6. Fuzzy Blurred Details

Cause: Insufficient precision density on tiny graphic elements Fix: Apply ultra-fine micro-stitch filling for detail zones of the badge

Part 6: Density & Visual Texture Relationship for 3D Patches

• Low density: Hollow, dry, thin stereo, low-grade visual effect on embroidery badges
• Standard density: Smooth, even, natural plump texture
• High calibrated density: Full, delicate, premium layered stereo effect
• Over-high density: Crowded stitches, rigid hand feel, easy outline distortion

Premium 3D texture relies on balanced calibrated density, not blindly pursuing higher stitching density.

Part 7: Washing Durability Correlated with Stitch Density

Stitch density directly determines the service life of 3D embroidered badges:

• Low-density 3D patches: Loose stitches appear after 5–10 wash cycles
• Standard-density 3D patches: Keep stable texture within 20–30 washing cycles
• High-density calibrated 3D patches: Maintain complete stereo effect after 40+ industrial washing cycles

Reasonable high-density stitching greatly improves the friction resistance and washing stability of custom embroidery badges.

Part 8: 2026 Updated 3D Badge Craft Trend

Current premium custom market mainstream is the intelligent variable density system: Embroidery equipment automatically identifies badge size, line width and stereo height, dynamically adjusts stitch spacing and tightness. Realize dense precision for tiny details, plump texture for main graphics, and natural softness for transition zones, thoroughly solve the drawbacks of rigid uniform density and hollow surface on low-quality 3D embroidered patches.

Final Summary Core Rule

Thread density is the core support of 3D embroidered badge quality. Graded ultra-fine, high, standard and loose density matching for different stereo heights and graphic zones eliminates hollow gaps, uneven surface, rigid distortion and weak stereo defects. Scientific zoned density layout creates plump, smooth, stable and durable high-end 3D texture, which is the fundamental guarantee for premium custom embroidery patch craftsmanship.

Frequently Asked Questions

Q1: Does denser stitching always produce better 3D embroidered badges? A: No. Excessive density squeezes foam and triggers rigid distortion. Only calibrated balanced density achieves optimal effect.

Q2: Why do some 3D embroidery badges have tiny gaps on the surface? A: Insufficient stitch density and uneven stitch spacing lead to incomplete coverage of foam interlayer.

Q3: Can higher stitch density extend the service life of 3D patches? A: Yes. Reasonable high density strengthens interlayer locking and improves washing and friction resistance.

Q4: Do multi-layer relief 3D embroidery badges need differentiated density settings? A: Yes. Foreground raised layers adopt higher density, background layers use standard density to balance layering and plumpness.
