3D Puff Embroidery Patch Edge Finishing Guide | Merrow Border, Hot Cut & Laser Cut Pros, Cons & Best Use Cases

Most standard edge finishing guides are designed for flat embroidery and cannot be applied to 3D foam puff patches. Flat fabric only requires anti-fray sealing, while 3D high-relief patches need edge solutions that protect foam structure, maintain uniform stereo height, avoid thermal melting and prevent long-term edge warping.

EVA foam is heat-sensitive and pressure-sensitive. Hot blade cutting and high-energy laser cutting may cause edge shrinkage, foam carbonization and stereo collapse if parameters are not strictly adjusted. Meanwhile, stitched borders add surface tension that can reshape the outer contour of thick 3D patches.

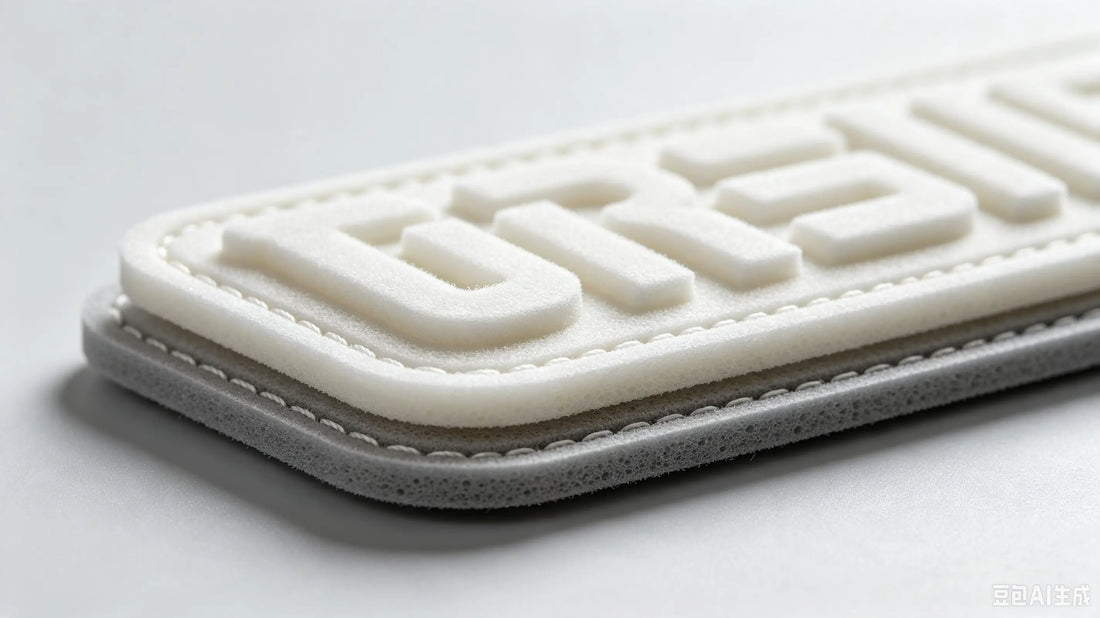

This article focuses purely on 3D puff embroidery, comparing the three industrial mainstream edge finishing methods: merrow border, hot cut and laser cut. It clarifies structural advantages, technical limitations, foam safety performance and scenario-based selection standards exclusively for foam-based 3D patches.

Part 1: Unique Edge Challenges for 3D Foam Puff Patches

1. Thermal vulnerability: EVA foam softens at high temperature, leading to invisible edge collapse after thermal cutting.
2. Structural tension imbalance: Thick raised surfaces cause uneven stress distribution during trimming.
3. Foam exposure risk: Improper edge processing may expose raw foam, resulting in dust accumulation and gradual deterioration.
4. Stereo consistency requirement: Edge finishing must not alter overall patch thickness or height uniformity.

All edge processes for 3D patches must balance three core standards: anti-fray performance, foam safety and stereo structural stability.

Part 2: Merrow Border (Stitched Overlock Edge) — The Safest 3D Edge Process

Process Principle

Merrow border is a continuous thick overlock stitch wrapping the entire patch contour. It is the only non-thermal edge finishing technology, creating a reinforced woven border without heat or cutting friction.

Advantages Exclusive to 3D Puff Patches

• Zero thermal damage, completely safe for EVA foam structure
• Strong structural tension restricts edge warping and foam loosening
• Excellent washing resistance, no fraying even after hundreds of washes
• Thick border enhances three-dimensional layering and premium tactical texture
• Stabilizes uneven foam tension on large high-relief 3D patches

Disadvantages

• Only applicable for simple regular shapes: circle, oval, rectangle, shield
• Cannot turn sharp corners or complex irregular curves
• Occupies 2.5–4mm edge margin, requiring reserved design spacing
• Higher cost than thermal cutting processes

Best Suitable 3D Patch Scenarios

• Regular-shaped tactical patches, military badges and club emblems
• Large-size high-relief 3D foam patches prone to warping
• Uniform patches requiring industrial repeated washing
• Premium branded patches pursuing durable texture

3D Professional Reminder

Merrow border is the most stable edge treatment for thick 3D puff patches. It locks foam position and effectively prevents edge peeling and stereo deformation over time.

Part 3: Hot Cut Edge (Heat-Sealed Blade Cutting) — Cost-Effective Contour Solution

Process Principle

High-temperature blade instantly cuts and melts polyester fabric edge to form a sealed anti-fray border. All cutting and sealing completes in one single process.

Advantages for 3D Patches

• Supports basic custom contour shapes beyond regular geometry
• No thick stitching covering graphic details
• Fast production speed and low unit cost
• Smooth and thin edge with clean visual effect

Disadvantages & 3D Foam Risks

• High-temperature blade easily transfers heat inward, softening marginal EVA foam
• Long heating contact causes subtle edge shrinkage and uneven stereo height
• Sharp tiny corners are prone to melting and blunting
• Lower durability than merrow border, edge seal may crack after long friction

Best Suitable 3D Patch Scenarios

• Medium-contour fashion custom 3D patches
• Thin low-height 3D puff patches (1–2mm foam)
• Short-term usage decorative patches and merchandise accessories

3D Restriction Rule

Hot cut is not recommended for thick 3–4mm high-relief 3D patches due to high foam collapse risk.

Part 4: Laser Cut Edge (High-Precision Non-Thermal Contact Trimming) — Complex Shape Solution

Process Principle

Focused laser beam burns and cuts patch contours with ultra-fine precision. Non-contact processing avoids mechanical extrusion deformation. Parameters are specially adjusted for 3D foam materials.

Advantages for 3D Patches

• Supports ultra-complex irregular shapes, hollow patterns and tiny sharp corners
• No physical extrusion pressure on foam surface
• No mold cost, flexible for custom exclusive 3D designs
• Finest contour precision among all edge processes

Disadvantages & 3D Foam Risks

• High laser energy may cause slight edge yellowing on light-colored threads
• Improper power setting leads to marginal foam carbonization
• Higher price than hot cut and die cut
• Long-time irradiation may weaken local foam elasticity

Best Suitable 3D Patch Scenarios

• Irregular creative 3D logo patches
• Miniature high-detail 3D puff badges
• Hollow-out and complex contour custom designs
• Limited-edition high-end custom patches

3D Professional Reminder

Qualified factories apply low-power fast laser cutting parameters exclusively for 3D foam patches to minimize heat penetration and protect stereo structure.

Part 5: 3D Patch Edge Finishing Performance Comparison Table

Part 6: Scenario-Based Edge Selection Rules for 3D Puff Patches

1. Thick High-Relief 3D Patches (3mm–4mm Foam)

Priority: Merrow border Reason: Only stitched reinforcement can stabilize thick foam tension and prevent long-term warping

2. Complex Irregular 3D Logo Patches

Priority: Laser cut Reason: Only laser precision can restore sharp corners and hollow details without extrusion deformation

3. Fashion Lightweight 3D Merchandise

Priority: Hot cut Reason: Balances cost, speed and clean visual edge effect

4. Tactical & Repeated Wash Uniform Patches

Priority: Merrow border Reason: Maximum durability and structural stability

5. Miniature Small 3D Collar Patches

Priority: Laser cut / Hot cut Reason: Avoid bulky merrow border occupying limited surface area

Part 7: Most Common 3D Edge Defects & Professional Fixes

1. Edge foam shrinkage and curling

Cause: Excessive heat from hot cut or laser cut Solution: Adopt low-temperature parameter setting or switch to merrow border

2. Irregular stereo height along edges

Cause: Uneven thermal penetration during cutting Solution: Fast-speed short-time cutting process for 3D foam

3. Sharp corner blunting

Cause: Thermal melting on tiny angles Solution: Precision laser cutting with power adjustment

4. Edge thread fraying after washing

Cause: Low-quality heat sealing without tight fusion Solution: Upgrade to merrow overlock edge for long-term durability

5. Exposed foam at patch rim

Cause: Misaligned cutting path Solution: Optimize edge margin and unified trimming positioning

Part 8: 2026 Advanced 3D Edge Finishing Trend

Professional manufacturers widely adopt dual-parameter laser cutting for 3D patches: separate energy settings for thread areas and foam areas to ensure precision without carbonization. Low-temperature hot melt sealing technology reduces hot cut edge brittleness. More high-end brands adopt mixed craftsmanship: regular outer edges use merrow border for stability, while inner hollow details use laser cutting for precision, maximizing both texture and accuracy.

Final Summary Core Rule

3D puff embroidery edge finishing must prioritize foam structural protection over simple aesthetics. Merrow border delivers the strongest stereo stability and durability for regular thick 3D patches. Laser cut provides unmatched precision for complex custom contours. Hot cut offers cost-effective solutions for lightweight fashion 3D patches. Avoid high thermal processing on thick high-relief foam materials. Matching the correct edge process according to foam thickness, shape complexity and usage scenario eliminates 90% of 3D patch edge deformation and quality defects.

Frequently Asked Questions

Q1: Which edge type is the most durable for 3D patches? A: Merrow border stitched edge provides the best structural stability and washing resistance for all high-relief 3D foam patches.

Q2: Can complex-shaped 3D patches use merrow border? A: No. Merrow machines cannot process sharp corners and irregular curves, which will cause distorted edges.

Q3: Does laser cutting damage 3D foam structure? A: With professional low-power fast parameters, laser cutting is safe; standard high-power laser settings will cause foam carbonization.

Q4: Is hot cut suitable for thick 4mm 3D puff patches? A: Not recommended. High temperature easily penetrates thick foam and causes permanent edge collapse.
