3D Puff Embroidery Patch Color Matching Guide | Pantone Codes, Color Fastness, Color Variation Control & Design Tips

Most buyers evaluate embroidery colors based on digital screen previews, which leads to frequent color expectation gaps. The raised texture of 3D puff embroidery changes light reflection angles. Thread surfaces curve over EVA foam, resulting in different visual saturation compared to flat stitched patches. Digital RGB display cannot replicate the texture and light behavior of physical polyester embroidery thread. Without standardized color management, finished patches often appear darker, brighter or less vibrant than original artwork.

This guide focuses specifically on color challenges for 3D foam puff patches. It outlines standardized Pantone referencing workflows, industrial color fastness specifications, practical methods to reduce color deviation, effective color contrast strategies and avoidable design mistakes.

Part 1: Why 3D Puff Patches Have Unique Color Rendering Traits

1. Curved thread geometry: Thread wraps around raised foam, creating highlights and shadows across the patch surface. The same thread looks lighter under direct light and darker in shadowed recesses.
2. Substrate influence: White twill base fabric under foam slightly lifts bright tones; dark base fabric subtly deepens low-saturation colors.
3. Stitch density impact: Dense wrapping stitches for 3D puff absorb more light; loosely stitched areas reflect more light, creating uneven visual tone.
4. Lighting dependency: Phone screens, office fluorescent lights and natural daylight all shift perceived thread colors. Digital mockups are only reference, not production color standards.

Core Principle: Final physical color approval always overrides digital artwork previews for custom 3D patches.

Part 2: Pantone Color Specification Workflow for 3D Embroidery

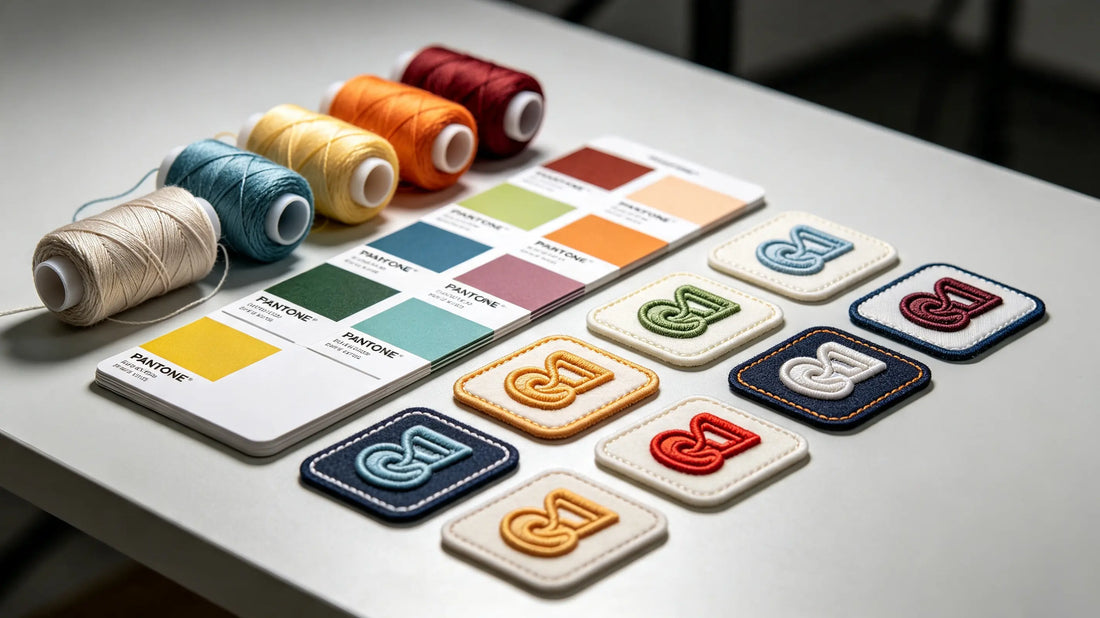

2.1 Preferred Standard: Pantone Solid Coated (PMS)

Provide Pantone Solid Coated codes for every color in your design. Thread manufacturers match available polyester embroidery thread to the closest Pantone reference.

• RGB / HEX color values from graphic software are not reliable production standards.
• Avoid Pantone Textile codes; embroidery thread suppliers primarily reference Solid Coated swatches.

2.2 Important Limitation

Not every Pantone shade exists as ready-made embroidery thread. When an exact match is unavailable, factories select the closest thread variant and notify buyers for written confirmation before sampling. Custom dyed thread leads to longer lead times and higher minimum order quantities.

2.3 Sampling Color Confirmation Rule

Once physical sample colors are approved in writing, all bulk production follows the sample as the official color benchmark. Subsequent complaints about minor natural color variation cannot be accepted if no pre-production color revision request was submitted.

Part 3: Embroidery Thread Color Fastness Standards

Color fastness defines how well threads resist fading, bleeding and color transfer during washing, friction and UV exposure. This metric directly affects long-term quality of wearable 3D puff patches.

• Grade 3–4: Standard commercial grade, suitable for fashion merchandise with infrequent washing.
• Grade 4+: Premium high color fastness thread, required for uniforms, tactical gear and outdoor apparel exposed to repeated washing and sunlight.
• Low-grade thread: Risk of bleeding during warm water washing, color transfer onto adjacent fabric and gradual fading under sunlight.

Key Reminder for 3D Patches

Rubbing friction concentrates on raised puff surfaces. Low fastness threads will show visible wear and color dulling much faster than threads on flat embroidery. Always select high color fastness threads for high-relief 3D foam patches intended for outdoor or frequent use.

Part 4: Practical Methods to Control Color Variation

1. Supply clear Pantone codes instead of only sending picture references.
2. Request physical thread swatches for sign-off before sampling if color accuracy is critical.
3. Avoid extreme low-saturation, muted grey tones; these shades show the largest visible deviation between digital mockup and physical thread.
4. Maintain consistent neutral daylight lighting when reviewing samples. Color judgment under warm indoor lighting is unreliable.
5. Expect acceptable industrial tolerance: ±1 shade deviation on thread matching is normal in embroidery production. Ultra-strict zero-tolerance color matching requires custom thread dyeing.
6. Do not mix different thread batches during bulk production; confirmed orders use unified thread stock to prevent batch-to-batch color shift.

Part 5: Color Design Best Practices for 3D Puff Embroidery

5.1 Prioritize Clear Contrast

Thin outlines on 3D patches easily lose definition due to shadow effects.

• Dark base graphics: Use bright, saturated outline colors.
• Light base graphics: Use deep, dark outline tones. Avoid pairing similar low-contrast colors such as dark navy and black; raised 3D texture will blur boundaries.

5.2 Limit Excessive Color Count

Each additional color requires separate thread setup on embroidery machines. Too many colors increase production cost and extend lead time. For most custom projects, 2–4 colors deliver the best balance of visual effect and cost efficiency.

5.3 Handle Gradient & Shadow Artwork

Embroidery cannot reproduce smooth digital gradients. Multiple transitional shades will merge visually on raised 3D surfaces. Simplify artwork into solid separated color blocks before digitizing.

5.4 White & Light-Colored Thread Notes

Light threads show stray dark stitch marks and dirt more easily during production. Factories require stricter machine cleaning when producing white or pale tone 3D puff patches.

5.5 Dark Thread Over Foam

Dense dark thread wrapping generates more heat during stitching. Proper machine speed adjustment prevents localized foam softening and minor surface distortion.

Part 6: 7 Common Color-Related Issues & Solutions

1. Physical patch looks darker than screen mockup

Cause: Digital screens emit light; physical thread reflects light. Solution: Refer to Pantone swatches and approve physical samples instead of relying on renderings.

2. Color difference between left and right sections on the same 3D patch

Cause: Uneven stitch density or variable lighting angle on raised surface. Solution: Optimize digitizing stitch density and avoid overly large single solid color blocks.

3. Thread bleeds after first washing

Cause: Low color fastness thread. Solution: Upgrade to grade 4+ high color fastness polyester thread.

4. Outline colors visually disappear on finished 3D patches

Cause: Insufficient contrast and thin outline width. Solution: Widen outline stroke and adjust color pairing for stronger contrast.

5. Batch color difference between samples and bulk goods

Cause: Different thread batches without unified stock control. Solution: Factory locks thread batch number after sample approval.

6. Pastel colors appear dull on finished 3D patches

Cause: Limited light reflection on dense wrapped stitches. Solution: Adjust artwork saturation expectations or select slightly brighter Pantone references.

7. UV fading after long-term outdoor use

Cause: Standard thread lacks UV stabilizer. Solution: Specify UV-resistant thread for outdoor tactical and gear patches.

Part 7: 2026 Industry Trend for 3D Patch Color Technology

Thread suppliers continue expanding Pantone-matched high color fastness thread ranges to reduce demand for custom dyed batches. Advanced digital pre-visualization tools simulate light and shadow on 3D puff embroidery to narrow the gap between digital preview and physical samples. Many premium custom patch suppliers now provide optional thread swatch service for brand clients with strict corporate color guidelines.

Final Summary Core Rule

3D foam puff embroidery has unique light reflection characteristics that separate it from flat embroidery. Reliable color management starts with Pantone Solid Coated references, physical sample approval and high color fastness thread selection. Buyers should avoid judging final colors purely from digital renderings. Thoughtful contrast design improves graphic legibility on raised surfaces, while reasonable expectations for minor industrial color variation prevent unnecessary disputes. Following standardized color matching procedures ensures consistent, professional visual results for all custom 3D embroidered patch orders.

Frequently Asked Questions

Q1: Can I use HEX or RGB values to match colors for 3D patches? A: Not recommended. Always provide Pantone Solid Coated codes. Digital color values cannot accurately represent physical embroidery thread appearance.

Q2: What level of color fastness should I choose for tactical 3D patches? A: Grade 4 or higher high color fastness polyester thread to resist repeated washing, friction and outdoor UV exposure.

Q3: Why do two patches with identical thread look different under different lighting? A: Curved 3D puff surfaces create variable shadow and highlight areas. Lighting conditions strongly influence human visual perception and do not count as production color defects.

Q4: Is exact 1:1 Pantone match guaranteed for all shades? A: Ready-made thread stock only covers most common shades. Rare Pantone tones may require custom thread dyeing with higher MOQ and extended lead time.
