Custom 3D Raised Embroidery Patches for Automotive, Car Clubs & Mechanic Apparel | Brand Guide

Automotive environments place apparel and gear under extreme conditions: workshop grease, airborne dust, constant friction with tools, prolonged outdoor sunlight and frequent washing. Traditional decoration methods struggle to maintain quality in garages and at racetracks. Heat transfer prints crack and discolour once exposed to motor oil and solvents; hard PVC patches collect grime and rub against arms during repair work; flat embroidery tends to blend into dark work uniforms and fails to stand out at car shows.

3D foam raised embroidery has become a top choice for automotive custom branding. High-density polyester stitching fully encases closed-cell foam to form sculpted vehicle silhouettes, engine graphics, racing crests, workshop logos and custom car club emblems. The pliable construction moves freely with cotton work shirts, heavy canvas jackets and nylon tool bags without stiffening. The raised profile remains highly visible even on dark, textured fabrics and resists abrasion during daily workshop use. Widely applied to mechanic workwear, track day racing jackets, tool backpacks, car club uniform and meetup commemorative goods, foam embroidery balances rugged practicality and standout visual styling.

For garage owners, racing event organisers and car club administrators, branded apparel must withstand heavy daily use without fading or deforming. Low-quality patches quickly become scuffed and dull, damaging the professional image of workshops and car communities. This guide covers the core advantages of 3D embroidered patches for automotive scenarios, auto-themed design standards, material selection guidance and practical bulk ordering advice.

Part 1: Why Car Clubs & Mechanics Choose 3D Raised Embroidery Patches

1.1 Bold Sculpted Graphics Visible On Dark Workwear

Sculpted foam creates clear dimensional contrast. Flat printed designs easily fade into dark mechanic uniforms, while raised vehicle and racing graphics draw attention at car shows and track events for easy team identification.

1.2 Flexible Structure Comfortable For Long Working Hours

3D foam embroidery stays supple and bendable. It fits well on heavy canvas work jackets, short-sleeve mechanic shirts and nylon tool bags. Unlike rigid plastic patches, it does not chafe arms during repair work or driving.

1.3 Abrasion & UV Resistance For Garage & Outdoor Use

Fully sealed perimeter stitching locks foam securely inside embroidery. Industrial colourfast polyester threads resist fading from sunlight and hold their appearance despite dust, light grease contact and repeated washing. Patches remain sharp through years of workshop service.

1.4 Diverse Custom Shape Options For Automotive Artwork

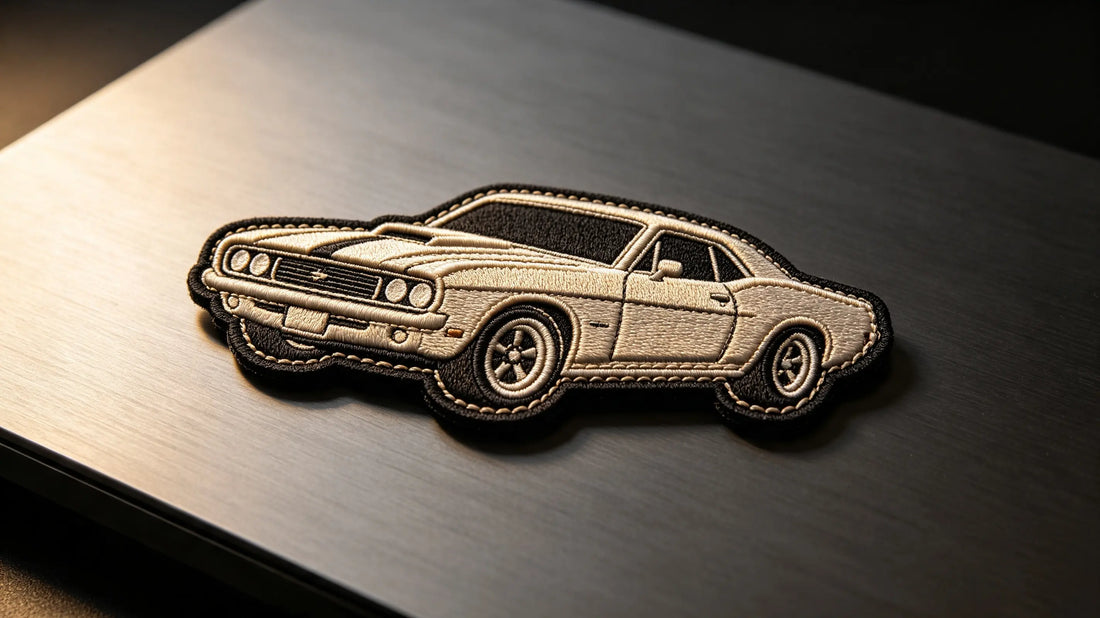

Designers can create exclusive silhouettes: classic cars, motorbikes, piston graphics, racing flags, wrench icons, turbo emblems and club crests. Laser-cut irregular shapes break free from standard rectangles and circles to match custom automotive aesthetics.

1.5 Flexible Minimum Order Quantities For Small Clubs & Large Garages

Local enthusiast car clubs often need limited production runs, while busy repair garages require bulk patches for staff uniforms. 3D embroidery production supports low minimum orders and scales efficiently for large workshop restocks and racing events.

Part 2: Automotive-Focused Design Specifications for 3D Embroidery Patches

2.1 Graphic Digitisation Guidelines for Automotive Artwork

Auto-themed graphics include vehicle outlines, mechanical illustrations, bold block lettering and racing logos. Optimise artwork during digitisation for stable foam embroidery:

• Minimum uppercase letter height: 6mm for standard 2mm foam; 8mm for thick 3mm high-relief foam
• Apply thick, defined outlines; excessively thin fine lines need strengthening to avoid foam exposure
• Avoid overcrowding tiny micro-details that cannot be reproduced clearly during stitching

2.2 Size Matching for Common Automotive Gear & Apparel

• Small collar & shoulder patches: 3cm–6cm, suited for uniform shoulder insignia, shirt collar branding and small tool accessory markings
• Medium chest & bag patches: 7cm–11cm, standard size for mechanic jacket chest panels, tool backpacks and crew shirt logos
• Large rear decorative patches: 12cm–19cm, for racing jacket backs, club hoodies and event display merchandise

2.3 Colour Matching Recommendations

Select UV-resistant colourfast polyester threads. Popular automotive colour schemes: black & silver, charcoal & orange, navy & red, matte grey & yellow. Dark base tones match workwear, while bright accent colours improve visibility at motorsport events.

2.4 Mandatory Edge Sealing Requirements

All custom irregular shapes must implement complete perimeter wrapping stitching. Unsealed edges allow dust, oil residue and moisture to penetrate foam, leading to swelling and deformation after long-term workshop use. Merrow borders or sealed laser-cut edges are required for production.

Part 3: Material Selection for Automotive-Grade 3D Embroidery Patches

Embroidery Thread

High tensile UV-resistant colourfast polyester thread, built to withstand outdoor sunlight and workshop dust. Avoid cotton thread, which fades rapidly and weakens after repeated washing.

Base Fabric

Medium-weight stable polyester twill, resistant to stretching after washing, delivering consistent support for dense foam stitching.

3D Core: Closed-Cell EVA Foam

Medium-soft closed-cell foam as standard.

• 2mm foam: Universal choice for daily staff insignia and tool bag branding
• 3mm foam: Selected for car club commemorative patches and collectible event merchandise

Backing Options for Automotive Gear

✅ Sew-On Backing (Top Recommendation) Maximum durability through heavy abrasion and frequent washing; no risk of adhesive failure caused by workshop temperature swings. Preferred for official mechanic uniforms and club jackets. ✅ Hook & Loop Backing Excellent for interchangeable patches on racing vests and tool backpacks, allowing enthusiasts to swap event patches for different meetups. ⚠️ Iron-On Backing Only suitable for prototype samples; temperature fluctuations and workshop grease cause separation, not recommended for commercial workwear.

Edge Finishing Options

1. Merrow Stitched Border Robust wrapped edge with strong abrasion resistance, widely used for standard garage staff and car club badges.
2. Laser Cut Sealed Edge Ideal for custom car silhouettes and mechanical artwork. Must be paired with complete foam wrapping stitching.
3. Hot Cut Edge Restricted to lightweight promotional gifts; insufficient durability for long-term workshop and track use.

Part 4: Production Standards for Automotive Industry Patches

Professional 3D Embroidery Digitising

• Balance stitch density to avoid excessive compression flattening foam relief
• Enforce full perimeter foam wrapping stitching to fully cover foam material
• Add surrounding stabilising running stitches to minimise edge curling after abrasion and washing

Physical Sample Approval Before Bulk Manufacturing

Digital mockups cannot replicate foam height, thread visibility under daylight and performance against dust. All garage and car club orders must approve physical samples before mass production to verify appearance on canvas work jackets and tool bags.

Batch Colour Consistency

All patches within one production batch use identical thread lots to eliminate colour variation, ensuring uniform branding for all staff and club members.

Part 5: Application & Gear Care Guidance

1. Use heavy-duty polyester sewing thread when attaching sew-on patches to mechanic jackets and tool bags to prevent stitching failure during daily work.
2. Avoid placing large thick patches on elbow and waist flex zones to reduce continuous compression.
3. Wash garments inside out with mild neutral detergent; harsh chemicals accelerate thread fading and foam degradation. Remove surface grease before washing to protect embroidery.
4. Air dry fully away from direct intense sunlight; prolonged high heat will gradually collapse foam layers.
5. Never apply high-temperature iron directly onto raised embroidery surfaces.

Part 6: Common Defects & Practical Solutions

1. Thread colour fades quickly after outdoor track use Cause: Low-grade thread lacking UV resistance Solution: Specify Grade 4 UV-stabilised colourfast polyester embroidery thread for all automotive patches
2. Raised 3D shape permanently flattens Cause: Over-compressed stitch density or overly soft foam Solution: Optimise digitising parameters and select medium-density closed-cell foam
3. Foam visible at patch edges Cause: Incomplete perimeter wrapping stitching Solution: Implement full perimeter foam wrapping and sealed edge finishing as mandatory production rule
4. Iron-on patches detach after temperature changes Cause: Inferior hot melt adhesive sensitive to heat and dirt Solution: Choose sew-on or hook & loop backing for automotive workwear
5. Patch edges curl after long-term abrasive use Cause: Insufficient stabilising stitches or thin base twill Solution: Upgrade base fabric weight and add reinforcing stabilising stitches

Part 7: Maintenance Guidance for Gear With 3D Embroidery Patches

• Turn automotive apparel inside out before washing to reduce surface abrasion
• Avoid bleach and strong industrial stain removers to preserve thread colour
• Wipe away surface oil and dust before washing to prevent residue buildup on embroidery
• Do not stack heavy items pressing onto patches during storage to retain three-dimensional shape
• Ensure garments are fully dry before storage to prevent trapped moisture

Part 8: 2026 Industry Trend for Automotive 3D Embroidery Patches

Car clubs, independent garages and motorsport teams are increasingly choosing textured 3D foam embroidery over flat printed badges. Custom vehicle silhouette patches, limited-edition track day insignia and tool bag branding are growing rapidly. Enthusiasts view dimensional patches as valuable collectibles compared to disposable stickers. Sew-on merrow edge patches remain standard for mechanic work uniforms, while hook & loop styles are popular for racing vests and modular tool backpack customisation.

Final Summary Core Rule

Genuine fully sealed foam wrapped 3D raised embroidery patches deliver tough, highly visible insignia built for car clubs, mechanics and motorsport brands. Flexible, abrasion-resistant construction works across canvas work jackets, racing apparel and nylon tool bags. Sew-on backing delivers long-term stability for official staff uniforms, while hook & loop enables flexible interchangeable event branding. Production must follow full foam wrapping standards and utilise high-grade UV-resistant polyester thread. Optimised digitising ensures patches retain sculpted shape and colour after workshop abrasion, sun exposure and repeated washing, helping garages and car communities build distinctive, lasting visual identity.

Frequently Asked Questions

Q1: Which backing works best for mechanic work uniforms? A: Sew-on backing provides maximum durability and resists detachment under workshop conditions. Q2: Can custom car and engine artwork be made into 3D embroidered patches? A: Yes. Automotive silhouette artwork requires careful contour adjustment during digitisation to achieve consistent foam wrapping and sharp outlines. Q3: Will 3D embroidery patches withstand workshop grease and frequent cleaning? A: Properly manufactured patches with fully sealed edges and premium polyester thread maintain texture and colour after extensive workshop use. Q4: What foam thickness fits best for car club commemorative patches? A: 3mm medium-soft closed-cell foam creates prominent dimensional texture ideal for collectible car show event badges.
