Custom 3D Raised Embroidery Patches for Construction, Trades & Workwear Brands | Brand Guide

Construction and trade workwear faces some of the toughest daily conditions: heavy dust, rough handling, frequent friction against tools, tool bags and site surfaces, and repeated industrial washing. Most common decoration methods degrade quickly in these environments. Heat transfer prints crack, fade and peel after constant abrasion; hard PVC patches trap dust, moisture and rub against skin during long workdays; flat embroidery often blends into dark work shirts and fails to deliver the premium branded look that trade brands want.

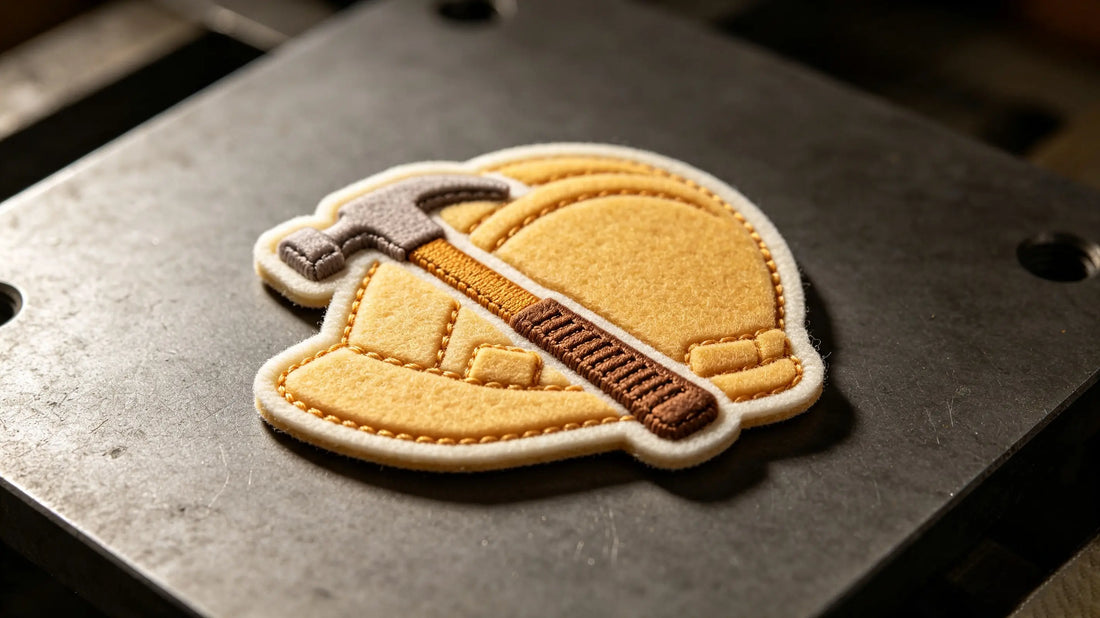

3D foam raised embroidery has become a practical upgrade for construction and trade branding. High-density polyester stitching fully encases closed-cell foam to form sculpted hard hat icons, tool graphics, company logos, trade crests and safety-themed emblems. The pliable construction moves naturally with cotton work shirts, heavy canvas pants, safety vests and tool bags without stiffening. The raised profile remains highly visible even on dark or high-visibility workwear and resists abrasion during daily site use. Widely applied to contractor uniforms, carpenter aprons, electrician vests, tool backpacks and staff merchandise, foam embroidery balances rugged durability and professional branding.

For workwear managers, trade company owners and apparel brand coordinators, uniform branding must endure heavy daily use without fading, peeling or deforming. Low-quality patches quickly become scuffed, dull and unprofessional. This guide covers the core advantages of 3D embroidered patches for construction and trade scenarios, workwear-focused design standards, material selection guidance and practical bulk ordering advice.

Part 1: Why Construction & Trade Brands Choose 3D Raised Embroidery Patches

1.1 Bold Dimensional Graphics Visible On Dark Workwear

Sculpted foam creates clear depth and contrast. Flat prints easily disappear against dark navy, black or charcoal work uniforms, while raised tool and safety graphics stand out for easy team identification, site photos and company branding.

1.2 Flexible Construction Comfortable For Long Workdays

3D foam embroidery stays soft and conformable. It works well on heavy canvas work jackets, cotton work shirts, safety vests and tool bags. Unlike rigid plastic patches, it does not chafe arms, shoulders or waist during lifting, bending and site movement.

1.3 Abrasion & Wash Resistance For Daily Site Use

Fully sealed perimeter stitching locks foam securely inside embroidery. Industrial colourfast polyester threads resist fading from sunlight, dust and repeated washing. Patches stay sharp and professional through months or years of trade work.

1.4 Custom Shape Options For Trade & Safety Branding

Designers can create exclusive silhouettes: hard hats, wrenches, hammers, electrical bolts, tape measures, safety helmets, company logos and trade crests. Laser-cut irregular shapes break free from standard rectangles and circles to support custom workwear branding.

1.5 Flexible Minimum Order Quantities For Small Crews & Large Companies

Local contractors and small trade teams often need limited production runs, while large workwear brands require bulk patches for national uniform programs. 3D embroidery production supports low minimum orders and scales efficiently for large restocks.

Part 2: Workwear-Focused Design Specifications for 3D Embroidery Patches

2.1 Graphic Digitisation Guidelines for Trade Artwork

Trade-themed graphics include tool silhouettes, safety symbols, bold lettering and company crests. Optimise artwork during digitisation for stable foam embroidery:

• Minimum uppercase letter height: 6mm for standard 2mm foam; 8mm for thick 3mm high-relief foam
• Use thick, defined outlines; excessively thin fine lines need strengthening to avoid foam exposure
• Avoid overcrowding tiny micro-details that cannot translate clearly into stitching

2.2 Size Matching for Common Workwear & Gear

• Small collar & shoulder patches: 3cm–6cm, suited for uniform shoulder insignia, shirt collar branding and small safety markings
• Medium chest & tool bag patches: 7cm–11cm, standard size for work jacket chest panels, safety vests and tool backpack logos
• Large rear decorative patches: 12cm–19cm, for work jacket backs, hi-visibility outerwear and staff merchandise

2.3 Colour Matching Recommendations

Select UV-resistant colourfast polyester threads. Popular trade colour schemes: navy & orange, charcoal & yellow, black & silver, olive & khaki. Dark base tones match workwear, while bright accent colours improve visibility on site.

2.4 Mandatory Edge Sealing Requirements

All custom irregular shapes must implement complete perimeter wrapping stitching. Unsealed edges allow dust, moisture and detergent to penetrate foam, leading to swelling and deformation after repeated washing and site use. Merrow borders or sealed laser-cut edges are required for production.

Part 3: Material Selection for Construction-Grade 3D Embroidery Patches

Embroidery Thread

High tensile UV-resistant colourfast polyester thread, built to withstand outdoor sunlight, dust and repeated industrial washing. Avoid cotton thread, which fades rapidly and weakens after heavy use.

Base Fabric

Medium-weight stable polyester twill, resistant to stretching after washing, delivering consistent support for dense foam stitching.

3D Core: Closed-Cell EVA Foam

Medium-soft closed-cell foam as standard.

• 2mm foam: Universal choice for daily staff insignia and tool bag branding
• 3mm foam: Selected for company uniform patches and limited-edition workwear merchandise

Backing Options for Construction Gear

✅ Sew-On Backing (Top Recommendation) Maximum durability through heavy abrasion and frequent washing; no risk of adhesive failure caused by site dust, moisture and temperature changes. Preferred for official work uniforms. ✅ Hook & Loop Backing Excellent for interchangeable patches on safety vests and tool backpacks, allowing crews to swap role-specific patches. ⚠️ Iron-On Backing Only suitable for prototype samples; heat, dust and moisture cause separation, not recommended for commercial workwear.

Edge Finishing Options

1. Merrow Stitched Border Robust wrapped edge with strong abrasion resistance, widely used for standard contractor and trade uniform badges.
2. Laser Cut Sealed Edge Ideal for custom tool silhouettes and safety artwork. Must be paired with complete foam wrapping stitching.
3. Hot Cut Edge Restricted to lightweight promotional gifts; insufficient durability for long-term construction site use.

Part 4: Production Standards for Construction Industry Patches

Professional 3D Embroidery Digitising

• Balance stitch density to avoid excessive compression flattening foam relief
• Enforce full perimeter foam wrapping stitching to fully cover foam material
• Add surrounding stabilising running stitches to minimise edge curling after abrasion and washing

Physical Sample Approval Before Bulk Manufacturing

Digital mockups cannot replicate foam height, thread visibility under site lighting and wash performance. All trade company and workwear brand orders must approve physical samples before mass production to verify appearance on work jackets, safety vests and tool bags.

Batch Colour Consistency

All patches within one production batch use identical thread lots to eliminate colour variation, ensuring uniform branding for all crew members.

Part 5: Application & Gear Care Guidance

1. Use heavy-duty polyester sewing thread when attaching sew-on patches to work jackets and tool bags to prevent stitching failure during daily site work.
2. Avoid placing large thick patches on elbow and waist flex zones to reduce continuous compression.
3. Wash workwear inside out with mild neutral detergent; harsh chemicals accelerate thread fading and foam degradation. Remove surface dust before washing to protect embroidery.
4. Air dry fully away from direct intense sunlight; prolonged high heat will gradually collapse foam layers.
5. Never apply high-temperature iron directly onto raised embroidery surfaces.

Part 6: Common Defects & Practical Solutions

1. Thread colour fades quickly after repeated site use Cause: Low-grade thread lacking UV and abrasion resistance Solution: Specify Grade 4 UV-stabilised colourfast polyester embroidery thread for all construction patches
2. Raised 3D shape permanently flattens Cause: Over-compressed stitch density or overly soft foam Solution: Optimise digitising parameters and select medium-density closed-cell foam
3. Foam visible at patch edges Cause: Incomplete perimeter wrapping stitching Solution: Implement full perimeter foam wrapping and sealed edge finishing as mandatory production rule
4. Iron-on patches detach after industrial washing Cause: Inferior hot melt adhesive sensitive to moisture and temperature Solution: Choose sew-on or hook & loop backing for workwear
5. Patch edges curl after long-term abrasive use Cause: Insufficient stabilising stitches or thin base twill Solution: Upgrade base fabric weight and add reinforcing stabilising stitches

Part 7: Maintenance Guidance for Gear With 3D Embroidery Patches

• Turn workwear inside out before washing to reduce surface abrasion
• Avoid bleach and strong industrial stain removers to preserve thread colour
• Brush away dry dust before washing to prevent residue buildup on embroidery
• Do not stack heavy items pressing onto patches during storage to retain three-dimensional shape
• Ensure garments are fully dry before storage to prevent trapped moisture

Part 8: 2026 Industry Trend for Construction 3D Embroidery Patches

Construction companies and workwear brands are increasingly replacing flat printed badges with textured 3D foam embroidery. Custom tool silhouette patches, role-specific trade insignia and company uniform patches are growing in demand. Trade brands view three-dimensional patches as durable, premium-looking branding that helps uniforms stand out from generic workwear. Sew-on merrow edge patches remain standard for official work uniforms, while hook & loop styles are popular for safety vests and modular tool bag customisation.

Final Summary Core Rule

Genuine fully sealed foam wrapped 3D raised embroidery patches deliver tough, highly visible insignia built for construction crews, trade professionals and workwear brands. Flexible, abrasion-resistant construction works across work jackets, safety vests, carpenter aprons and tool bags. Sew-on backing delivers long-term stability for official staff uniforms, while hook & loop enables flexible interchangeable role branding. Production must follow full foam wrapping standards and utilise high-grade UV-resistant polyester thread. Optimised digitising ensures patches retain sculpted shape and colour after site abrasion, sun exposure and repeated washing, helping trade companies build professional, durable workwear identity.

Frequently Asked Questions

Q1: Which backing works best for construction work uniforms? A: Sew-on backing provides maximum durability and resists detachment under dusty, abrasive site conditions. Q2: Can custom tool and safety artwork be made into 3D embroidered patches? A: Yes. Tool and safety silhouette artwork requires careful contour adjustment during digitisation to achieve consistent foam wrapping and sharp outlines.

Q3: Will 3D embroidery patches withstand industrial washing and site use? A: Properly manufactured patches with fully sealed edges and premium polyester thread maintain texture and colour after extensive workwear use.

Q4: What foam thickness fits best for company uniform patches? A: 3mm medium-soft closed-cell foam creates prominent dimensional texture ideal for professional workwear branding.
