Custom 3D Raised Embroidery Patches for Automotive Clubs, Garages & Racing Teams | Motorsport Branding Guide

Track crews, hobbyist car clubs and professional garage staff regularly deal with engine grease, road dust and variable temperature conditions. Many workshops and enthusiast groups add branding to workwear and event merchandise, yet most decoration options cannot withstand the harsh daily environment of garages and racetracks. Heat transfer prints crack after frequent cleaning; conventional flat embroidery appears flat on heavy canvas work jackets; rigid plastic patches are prone to scratching painted vehicle surfaces and turn brittle after extreme temperature shifts.

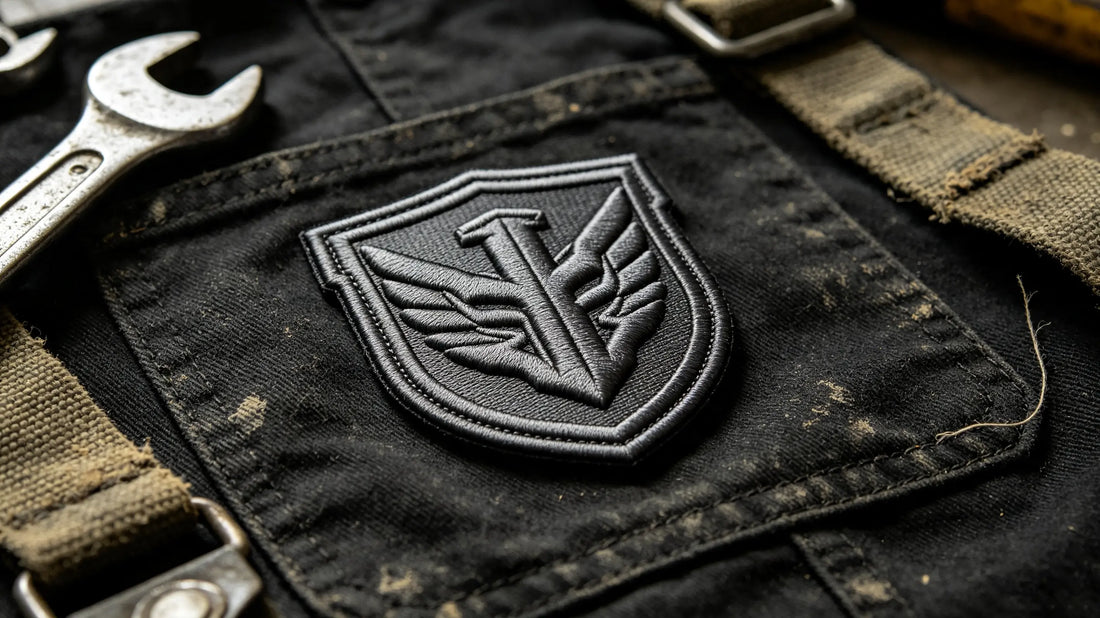

3D foam raised embroidery provides a durable branding solution for all automotive communities. High-tensile polyester threads fully encase closed-cell foam to form raised graphics, with continuous perimeter stitching sealing foam away from oil stains and dust. The finished patch remains flexible, conforming to thick mechanic jackets, lightweight racing windbreakers and canvas tool bags without creating uncomfortable hard edges against skin.

For racing teams and local car clubs, branded apparel serves as walking advertisement at track days, meetups and car shows. Low-quality decorations fade, peel or lose their shape quickly, leaving a poor impression on fellow enthusiasts and customers. This guide focuses on the unique requirements of automotive environments. It outlines the advantages of 3D embroidered patches for garages and racing crews, shares graphic design best practices for motorsport motifs, backing selection, fabric compatibility and key material standards for workshop and track use.

Part 1: Why Automotive & Racing Communities Choose 3D Raised Embroidery Patches

1.1 Sealed Construction Blocks Dust & Surface Stains

Fully wrapped edge stitching prevents dust, grease and fine workshop debris from seeping into the foam core. Compared to open embroidery, sealed edges reduce staining and make patches easier to wipe clean after accidental contact with oil and lubricants.

1.2 Abrasion-Resistant Thread Survives Workshop Wear

Mechanic uniforms and racing jackets endure constant friction against tool belts, steering wheels and seat surfaces. High-grade polyester threads maintain graphic integrity after months of regular use and repeated laundering.

1.3 Flexible Structure Fits Multiple Workwear Fabrics

Automotive apparel ranges from thick canvas mechanic coats to lightweight windproof racing jackets. Soft foam 3D patches bend naturally with movement and avoid irritation during long shifts at the workshop or extended track events.

1.4 Highly Customisable for Motorsport-Themed Graphics

Designs can include vehicle silhouettes, racing flags, garage logos, team numbers, piston and wheel motifs. Irregular custom shapes stand out far more than generic rectangular patches at car meets and race events.

1.5 Adaptable for Event Merchandise & Team Uniforms

Patches can be produced in small batches for limited track day merchandise, alongside larger runs for permanent workshop staff uniforms. Different backing options allow brands to create both permanent workwear and removable collectible patches for enthusiasts.

Part 2: Core Design Guidelines for Automotive 3D Embroidery Patches

2.1 Graphic Optimisation for Foam Embroidery Production

Extremely thin lines within detailed motorsport artwork need adjustment during digitisation to avoid loose stitching.

• Minimum uppercase letter height: 6mm for standard 2mm foam; 8mm for high-relief 3mm foam embroidery.
• Fine outlines on wheels, racing stripes and lettering should be moderately thickened to guarantee consistent thread coverage and avoid foam exposure.

2.2 Standard Sizing for Automotive Apparel & Gear

• Small patches for caps, neck labels: 3cm – 6cm
• Chest insignia for mechanic shirts, racing crew jackets: 7cm – 11cm
• Large sleeve / gear bag statement patches: 12cm – 24cm

2.3 Colour Matching Advice for Motorsport Branding

Select Grade 4 colourfast polyester threads based on brand identity. Popular automotive colour schemes: matte black & red, navy & silver, charcoal & orange, monochrome grey tones, matching widely used racing and workshop apparel colourways.

2.4 Mandatory Edge Sealing Standards

Common shapes include rounded rectangles, shields, car silhouettes and custom racing emblem outlines. Every patch edge must use continuous wrapping stitching to seal foam, blocking dust and grime and slowing foam degradation.

Part 3: Material Selection for Automotive-Grade 3D Embroidery Patches

All materials specified below are optimised for foam-wrapped 3D embroidery, not suitable for flat embroidery, woven labels, PVC patches and plastic badges.

Embroidery Thread

High-tensile polyester thread with excellent abrasion resistance and colour fastness. Avoid cotton thread; cotton absorbs grease and stains permanently and is prone to thread breakage under constant friction.

Base Fabric

Medium-weight compact polyester twill fabric. Dimensionally stable after repeated washing, offering reliable support for dense foam wrapping stitching.

3D Core: Closed-Cell EVA Foam

Medium-soft closed-cell EVA foam serves as the standard core material. Overly hard foam creates rigid patches uncomfortable during long work shifts; overly soft foam compresses permanently with regular storage.

• 2mm foam: Universal choice for cap logos, chest crew insignia and daily workshop uniforms
• 3mm foam: Used for large statement patches on gear bags, racing jackets and event merchandise

Backing Options for Automotive Gear

✅ Sew-On Backing (Top Recommendation for Permanent Workshop Uniforms) Smooth reverse side, stable performance after frequent washing, no risk of adhesive failure caused by temperature swings. Compatible with canvas work coats, polyester racing jackets and canvas tool bags.

✅ Iron-On Backing Suitable for temporary event apparel and casual fan merchandise. Sewing reinforcement is strongly recommended for regular workwear. ⚠️ Hook & Loop Backing Suited for interchangeable vest patches; not recommended for permanent uniform decoration, as hook fabric snags canvas and woven workwear.

Edge Finishing Options

1. Merrow Stitched Border Classic wrapped smooth edge, excellent anti-fray performance, withstands workshop dirt and repeated laundry cycles. The primary choice for official garage and racing team insignia.
2. Laser Cut Edge Perfect for custom car silhouettes, piston graphics and freeform racing logos. Delivers bold enthusiast styling; must pair with complete foam wrapping stitching to seal all cut edges.
3. Hot Cut Edge Only applicable to tiny souvenir patches. Not recommended for workwear, hot melt edges degrade quickly after temperature changes and frequent washing.

Part 4: Critical Production Standards for Automotive Patches

Professional 3D Embroidery Digitising

• Use balanced stitch density to avoid excessive compression flattening foam, preserving consistent raised relief
• Enforce full perimeter foam wrapping stitching to fully cover foam layer
• Add surrounding stabilising running stitches to minimise edge curling after repeated washing

Physical Sample Confirmation Before Bulk Manufacturing

Digital renderings cannot simulate real foam height, stitch tightness and stain resistance. All bulk orders should approve physical samples before mass production. Check flexibility, colour accuracy and edge sealing to guarantee consistent quality for all team apparel.

Batch Colour Consistency Control

All patches within one order use identical thread batches to eliminate colour difference, ensuring uniform branding across all staff uniforms and event merchandise.

Part 5: Application & Care Tips for Automotive Gear with 3D Embroidery Patches

1. Use durable polyester sewing thread during installation to secure patches firmly on thick canvas workwear.
2. Avoid placing oversized patches on elbow and waist bending areas to reduce continuous compression.
3. Wash uniforms with neutral detergent; avoid strong industrial degreasers that break down thread colour and foam structure.
4. Air dry in shaded locations; prolonged high-temperature drying causes foam collapse.
5. Never apply high-temperature iron directly onto the raised embroidered surface.

Part 6: Common Defects & Practical Solutions

1. Thread fades after repeated heavy-duty washing

Cause: Low-grade thread with insufficient colour fastness Solution: Select Grade 4 abrasion-resistant polyester embroidery thread for all workshop patches

2. Raised 3D profile flattens permanently after frequent use

Cause: Excessively soft foam or over-compressed stitch density Solution: Adopt medium-soft closed-cell foam and adjust digitising stitch parameters

3. Foam exposure and fraying threads at patch edges

Cause: Incomplete edge wrapping stitching Solution: Implement full perimeter foam wrapping and sealed edge finishing as mandatory production rule

4. Iron-on patches separate after high-temperature exposure

Cause: Low-quality hot melt adhesive vulnerable to heat fluctuation Solution: Choose sew-on backing for permanent work uniforms; add sewing reinforcement if iron-on is required

5. Patch edges curl after repeated washing

Cause: Insufficient stabilising stitches or thin base fabric Solution: Upgrade to medium-weight twill base fabric and add reinforcing stabilising stitches

Part 7: Maintenance Guidance for Automotive Apparel with 3D Embroidery Patches

• Wipe surface dirt and light grease stains before washing uniforms
• Turn apparel inside out during washing to reduce abrasion to embroidery
• Avoid bleach and harsh chemical solvents that cause thread discolouration
• Do not stack heavy tools pressing on patches during storage to preserve three-dimensional shape
• Limit high-temperature machine washing cycles to extend patch service life

Part 8: 2026 Industry Trend for Automotive 3D Embroidery Patches

An increasing number of independent garages, amateur racing teams and local car clubs are replacing easily damaged printed graphics with custom 3D foam embroidered patches. Abrasion resistance, sealed stain-resistant construction and unique visual texture become core purchasing criteria.

Vehicle silhouettes, racing shield emblems and custom workshop logos remain highly popular designs. Sew-on merrow edge patches dominate staff uniform orders, while laser-cut custom-shaped patches are widely used for car show collectible merchandise. Buyers prioritise flexible foam embroidery suitable for thick canvas workwear and reject low-density embroidery that deteriorates quickly in workshop environments.

Final Summary Core Rule

Genuine fully sealed foam wrapped 3D raised embroidery patches deliver tactile sculpted texture impossible to achieve with flat embroidery, printed graphics and PVC accessories. With reliable abrasion resistance, dust-proof sealed edges and flexible material performance, they represent a robust branding solution for mechanic coats, racing jackets, caps and canvas tool bags. Sew-on fully sealed edge construction remains the most stable option for long-term workshop and track use. Production must follow full foam edge wrapping and high-performance polyester thread standards. Optimised digitising and material selection ensure patches retain three-dimensional shape and clean appearance after long-term workshop exposure and repeated washing, helping car clubs, garages and racing teams build recognisable visual identity within the automotive community.

Frequently Asked Questions

Q1: Which backing works best for permanent mechanic work uniforms? A: Sew-on backing with merrow wrapped edge is the optimal choice, stable after frequent heavy-duty washing and temperature changes.

Q2: Can detailed racing graphics and custom vehicle logos be made into 3D embroidered patches? A: Yes. Ultra-thin lines and tiny text need proper thickening during digitisation to achieve stable foam wrapping and complete graphic restoration.

Q3: Will 3D embroidery patches withstand regular workshop cleaning and grease exposure? A: Yes. Complete edge sealing blocks dust and grime from reaching the foam core and makes surface cleaning much easier than open embroidery.

Q4: What foam thickness is recommended for large patches on canvas tool bags? A: 3mm medium-soft closed-cell foam delivers striking three-dimensional visual effects without excessive stiffness.
