Custom Embroidered Patch Size Design Guide | Minimum Text Limit, Proportion Rules, 3D Patch Dimension Pitfalls

Many clients provide high-quality vector artwork, yet receive finished patches with fuzzy letters, merged outlines and lost small elements. In most cases, the root cause is unreasonable size setting. Embroidery has physical limitations on thread width and stitch density, which digital graphics do not have. These restrictions become stricter when creating 3D stereo patches with foam interlayers.

Small patches cannot accommodate dense patterns and fine text; oversized patches paired with excessive foam thickness lead to sagging, bending and uneven stereo shaping. In addition, different application positions such as hat fronts, jacket sleeves, tactical vests and backpacks have mature optimal dimension ranges. Ignoring usage scenarios will result in patches that look disproportionate after installation.

This guide summarizes universal industrial standards for patch sizing, minimum stitchable element limits, proportion principles and typical design errors. It covers both flat embroidery and 3D stereo patches, providing clear reference standards for artwork modification before placing custom orders.

Part 1: Core Embroidery Physical Limitation – Minimum Stitchable Sizes

All measurements refer to finished patch physical dimension, uppercase sans-serif font as standard

Flat Embroidered Patches

• Minimum legible uppercase letters: 6mm
• Minimum legible lowercase letters: 7mm
• Ultra-fine thin font, script/cursive: minimum 8mm
• Minimum standalone small symbol, dot or logo mark: 4mm

3D Stereo Embroidered Patches

3D stitching raises threads, tiny details are prone to merging after shaping

• Minimum uppercase letters: 7mm
• Minimum lowercase letters: 8mm
• Script, cursive and thin artistic fonts: minimum 9mm
• Minimum independent graphic icon: 5mm

Critical reminder: If artwork elements are smaller than the above thresholds, details will fuse together and cannot be distinguished. Clients must enlarge graphics or simplify complex patterns.

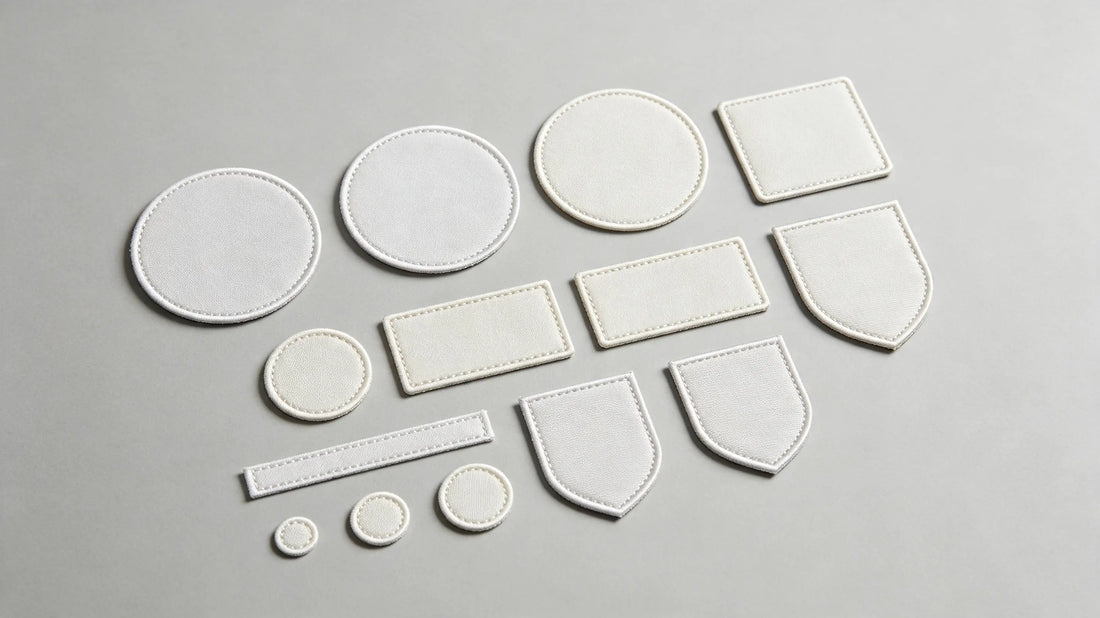

Part 2: Common Standard Patch Dimensions & Application Scenarios

Round Patches

• 5cm diameter: Hat front, cap badge, small collar emblem
• 7.5cm diameter: Sleeve patch, daily fashion merch
• 10cm diameter: Backpack, tactical vest main badge
• 12cm+ diameter: Large back-of-jacket decorative emblem

Rectangular Patches

• 4cm × 6cm: Collar, chest small label
• 7cm × 10cm: Standard sleeve patch, team uniform badge
• 9cm × 12cm: Tactical morale patch, backpack panel
• 12cm × 15cm: Large back patch for jackets and hoodies

Shield / Custom Contour Badges

• 6–8cm height: Chest and sleeve standard size
• 9–11cm height: Main vest badge
• Over 12cm height: Large back decoration

Part 3: Exclusive Size Rules for 3D Embroidered Patches

The stereo thickness must match overall patch dimension to avoid structural defects

1. Patches under 6cm maximum width: Recommended foam thickness 1–2mm. Thicker foam causes rigid, easily collapsible stereo
2. 6cm – 10cm patches: Standard 2–3mm foam, most balanced size & stereo combination
3. Patches over 10cm wide: Maximum foam thickness 3mm. 4mm foam easily leads to bending and uneven shaping during hot pressing
4. Irregular long narrow strips: Avoid high stereo 3D design. Long thin shapes lack support and twist easily after shaping

Proportional principle: The larger the patch area, the more uniform stitching density is required to maintain consistent stereo fullness. Large 3D patches need reinforced edge locking to prevent edge warping.

Part 4: Graphic Layout & Space Proportion Standards

1. Keep 3–5mm safe margin inside the patch outline. Do not place critical elements close to cutting edges, avoiding detail loss during trimming
2. Avoid filling the entire patch boundary with graphics; reserve proper blank space to improve visual clarity
3. Multi-text layout: Keep at least 2mm spacing between independent text blocks to prevent thread merging
4. Multi-layer relief 3D design: Do not stack multiple ultra-fine details on raised high stereo areas, friction will accelerate wear and blur outlines

Part 5: 8 Common Size Design Mistakes

1. Too small text on medium-sized patches

Artwork looks clear on screen, letters shrink and merge after embroidery Solution: Adjust font size or simplify font to bold sans-serif

2. Oversized 3D patches with maximum 4mm foam

Large surface lacks support, patch bends, stereo height becomes uneven after washing Solution: Reduce foam thickness or add zoning reinforced stitching

3. Narrow long custom shapes with high stereo 3D design

Long thin badges twist and deform during heat shaping Solution: Lower stereo thickness or adjust artwork to a more compact shape

4. Hat patches over 7cm width

Exceeds hat front curved surface range; cannot lay flat after attachment Solution: Control round hat patches within 5–6cm diameter

5. Overcrowded patterns with zero blank margins

Threads pile up, hard texture, poor washing durability Solution: Remove redundant decorative elements or increase overall patch dimensions

6. Mix ultra-fine cursive fonts on 3D patches

Stereo thread lifting destroys delicate curve details Solution: Switch to bold block fonts or enlarge text dimension

7. Disproportionate patch size for installation position

Oversized sleeve patches restrict arm movement; undersized back patches lack visual impact Solution: Confirm mounting position and measure available space before finalizing artwork

8. Ignoring safe cutting margin

Key logo elements get trimmed during die cutting Solution: Keep all important graphics inside the inner safe zone

Part 6: Artwork Pre-Check Size Checklist Before Production

1. Confirm finished patch exact width and height
2. Measure all text height to meet minimum embroidery threshold
3. Check independent small icons and decorative marks
4. For 3D orders: Match foam thickness according to patch maximum dimension
5. Reserve 3–5mm safe cutting margin
6. Verify shape width-to-length ratio to avoid unstable long narrow structures
7. Confirm dimensions fit the target garment or gear mounting area

Part 7: 2026 Size Design Trend

More brand clients adopt differentiated size matching: small badge sets for collars and sleeves, matched medium main badges for chest and vests. Meanwhile, manufacturers promote simplified artwork rules for miniature 3D patches. Complex gradient patterns are gradually replaced with bold, thick outlines, ensuring stable detail presentation on small dimension stereo embroidery.

Final Summary Core Rule

Patch size design cannot rely solely on visual effect of digital artwork. Embroidery has fixed minimum stitchable element limits, and 3D stereo patches add extra restrictions on foam thickness and structural stability. Select appropriate dimensions according to installation position, control text and graphic sizes above industrial thresholds, reserve sufficient safe cutting margin, and match foam thickness proportional to patch overall size. Standardized size planning eliminates blurry details, distorted stereo and disproportionate finished effects for custom embroidered patches.

Frequently Asked Questions

Q1: What is the smallest size for a legible 3D embroidered patch with text? A: Generally minimum 5cm overall width. If text is required, better control finished size above 6cm to guarantee readable letters.

Q2: Can I use thin script fonts on small patches? A: Not recommended. Script fonts require higher minimum size. For patches under 7cm, bold sans-serif fonts are the most reliable choice.

Q3: Can large 12cm patches use 4mm 3D foam? A: Not advised. Large surface areas easily bend during shaping; 2–3mm foam delivers more stable flat stereo effect.

Q4: How much space should I reserve as cutting margin? A: 3–5mm inner safe zone. Do not place logos, text or critical graphic elements close to the outer edge.
