Custom Patch Digitizing Guide | Embroidery Digitizing Process, Standard File Rules & Common Digitizing Errors
Many customers mistakenly believe that clear artwork guarantees clear patches. In actual factory production, digitizing quality determines 80% of the final patch effect. Artwork is only a visual reference; digitizing converts flat images into machine-readable stitch paths, density data, color sequences and stitch angles. Amateur automated AI digitizing often causes crowded stitches, thread breaks, blurred edges, fabric puckering and distorted details. Understanding professional manual digitizing standards allows buyers to distinguish high-grade production files and avoid low-quality finished patches.
Custom 3D embroidered patches adopts 100% manual professional digitizing for all custom orders, optimizing stitch density and layer logic according to patch size to ensure flawless embroidery restoration.
Part 1: What Is Custom Patch Embroidery Digitizing
Digitizing is the professional process of converting JPG, PNG, AI, and PDF artwork into DST/EMB embroidery machine files.
Professional digitizers manually set stitch type, density, direction, underlay and color sequence, simulating the most suitable stitching logic for patch production. Unlike automatic AI one-click conversion, manual digitizing adjusts parameters according to patch actual size, craft type and twill material to avoid production defects.
Part 2: Standard Professional Digitizing Workflow
Step 1: Artwork Analysis & Simplification
Digitizer removes invalid tiny details that cannot be embroidered, simplifies over-complex lines while retaining core recognition, ensuring manufacturability.
Step 2: Underlay Stitch Setting
Add bottom underlay stitches to lift surface thread, prevent sinking, and improve overall patch flatness, avoiding hollow uneven texture.
Step 3: Density Parameter Calibration
Adjust stitch density according to patch size: smaller patches use finer density, large full-fill areas use balanced density to prevent thread accumulation.
Step 4: Stitch Angle Direction Optimization
Unified stitch angle for the same color block to form neat texture, avoid chaotic cross-stitch mess that affects visual uniformity.
Step 5: Color Layer Sequence Sorting
Arrange stitching order from bottom to top, background first then foreground pattern, preventing color covering and edge overlapping flaws.
Step 6: Outline Lock Stitch Processing
Reinforce border outline stitches to ensure sharp patch edges and prevent loose threads after long-term washing.
Part 3: Core Digitizing Quality Standards (Industry Golden Rules)
1. Size-Adaptive Density Control
- Patches under 3 inches: Higher fine density for clear tiny text and lines
- Patches 3–6 inches: Standard balanced density for uniform flat filling
- Large patches over 6 inches: Slightly relaxed density to avoid excessive thread accumulation and hardening
2. No Overlapping & No Blank Gaps
High-quality digitizing ensures color blocks fit perfectly with zero blank holes and no overlapping crowded stitches, presenting a solid smooth surface.
3. Reasonable Underlay Design
Qualified patches must have underlay support; no underlay leads to sunken threads, wrinkled fabric and weak three-dimensional sense.
4. Smooth Curve Transition
Curved patterns such as circles and arcs require smooth segmented stitches without jagged stair-step edges.
Part 4: Common Low-Quality Digitizing Defects & Hazards
1. AI Auto-Digitizing Jagged Edges
Automatic conversion cannot process curve transition, resulting in sawtooth patch outlines and unprofessional rough edges.
2. Excessively Crowded Stitches
Unadjusted density causes thread stacking, making patches hard, bulky and easy to break threads during production.
3. Sparse Stitch Hollow Gaps
Too low density leads to transparent blank holes, exposing the twill base background and destroying pattern integrity.
4. Chaotic Stitch Angle
Disordered stitch directions create messy inconsistent texture, making the patch look patchy and unrefined.
5. Missing Underlay Stitches
No bottom support causes sinking embroidery, uneven surface and weak wash resistance.
Part 5: Craft-Specific Digitizing Differences
Flat Embroidery Digitizing
Focus on flat uniform filling, balanced density and sharp outline definition, suitable for logo and text patches.
3D Foam Embroidery Digitizing
Need special foam-compatible stitch density, tighter edge locking and reduced middle stitch pressure to retain foam three-dimensional bulge.
Full Fill Heavy Embroidery Digitizing
Optimize layered stitching to avoid excessive thread thickness, prevent patch hardening and deformation.

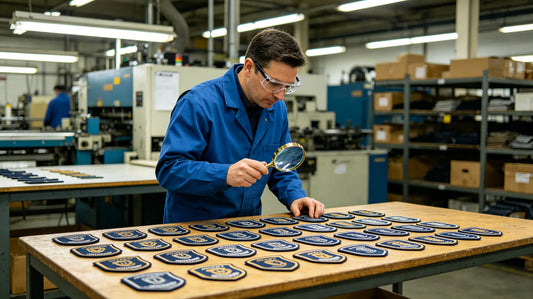

Part 6: How To Verify Digitizing Quality Before Production
- Check stitch preview for jagged edges and blank gaps
- Confirm text stitch uniformity to avoid distorted letter details
- Verify curve smoothness on circular and irregular patterns
- Check layer sequence to prevent foreground and background color covering errors
Part 7: Common Digitizing Misunderstandings To Avoid
- High-resolution artwork = good patch quality → Wrong, poor digitizing ruins any high-def design
- AI one-click digitizing saves time and cost → Low-quality stitches cause full batch defects
- Uniform density for all patch sizes → Small patches blurry, large patches too hard and bulky
- Ignore underlay stitches → Patch surface uneven and easily deformed after washing
Final Summary Core Rule
Manual size-adaptive digitizing > AI auto-digitizing; reasonable density + underlay stitches + smooth curve transition = high-quality patches; small patches need fine density, large patches need balanced filling; layer sequence determines color layering effect; bad digitizing is the main cause of blurry, stiff and defective patches.
Professional digitizing is the foundation of every high-grade custom embroidered patch.
Frequently Asked Questions
Q1: What is embroidery digitizing for custom patches?
A: It is the process of converting artwork into machine-readable stitch files that control patch embroidery track, density and color sequence.
Q2: Why is AI automatic digitizing not recommended?
A: AI produces jagged edges, chaotic stitches and unreasonable density, resulting in low-quality defective patches.
Q3: Does patch size affect digitizing parameters?
A: Yes, professional digitizers adjust stitch density and stitch angle according to patch size for optimal effects.
Q4: What causes hollow gaps and blurry patch details?
A: Unqualified sparse stitch density, missing underlay and poor curve transition from low-grade digitizing.
