Custom Patch Velcro Backing Guide | Types, Strength, Installation & Replacement Tips

Part 1: Basic Structure & Working Principle

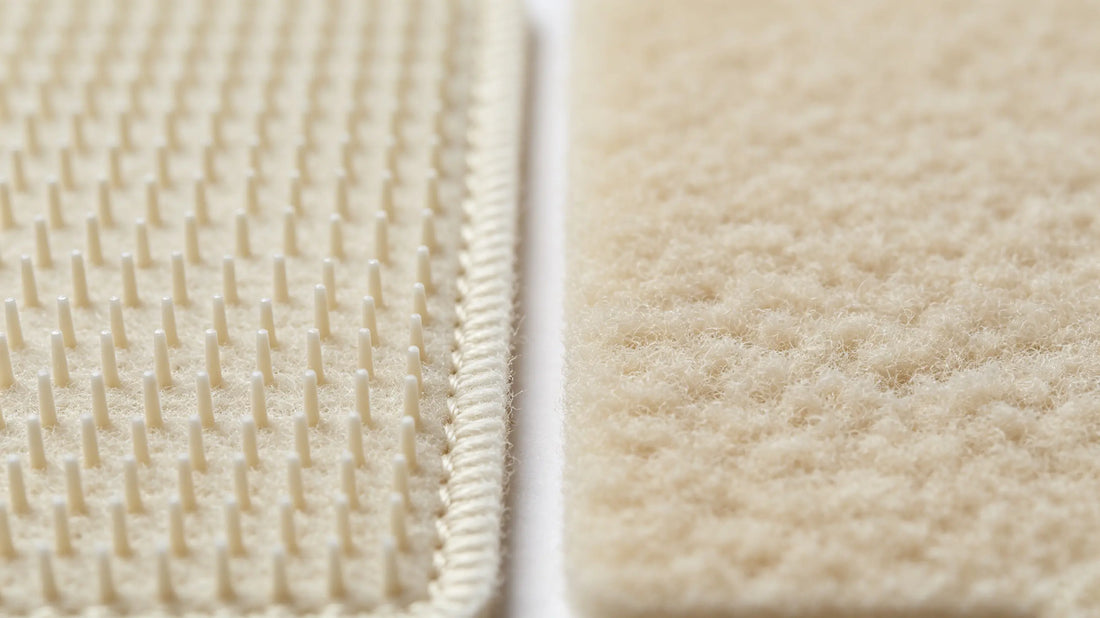

1. Hook Side: Hard surface with tiny plastic hooks, usually attached to the back of patches
2. Loop Side: Soft fabric surface with dense loops, generally fixed on clothes, vests, backpacks


   When pressed together, hooks lock onto loops to achieve firm fixation; simply peel apart to separate. The two sides must be used in pairs and cannot be mixed randomly.

Part 2: Mainstream Velcro Types & Feature Comparison

1. Woven Velcro (Industrial Standard)

• Material: Polyester fiber woven base + plastic hooks
• Features: High strength, wear-resistant, strong pulling force, long service life
• Applicable: Large patches, heavy 3D patches, tactical vests, outdoor gear
• Advantage: Not easy to shed hair, stable performance after long-term friction

2. Adhesive-Backed Velcro

• Material: Ordinary Velcro with glue on the bottom
• Features: No sewing needed, easy installation, convenient for temporary use
• Applicable: Indoor decoration, light small patches, frequent position changes
• Note: Poor high-temperature resistance, easy to fall off after repeated pulling

3. Ultra-Thin Soft Velcro

• Material: Lightweight thin woven material
• Features: Low bulkiness, soft touch, no foreign body sensation when wearing
• Applicable: Clothing lapel patches, close-fitting apparel, mini badges
• Limitation: Lower bearing capacity, not for large heavy patches

4. Flame Retardant & Waterproof Velcro

• Special functional material, anti-water, anti-flame, anti-aging
• Applicable: Work uniforms, outdoor waterproof equipment, special industry patches
• Price: Higher than conventional styles

Part 3: Strength Grade & Selection By Patch Weight

Grade 1: Light-Duty (Low Strength)

• Bearing weight: Below 10g, ultra-light mini patches
• Features: Soft, quiet when peeling, no loud tearing sound
• Match: 1"–2" small lapel, collar and pocket patches

Grade 2: Medium-Duty (Universal Standard)

• Bearing weight: 10g–30g, most regular-sized patches
• Features: Balanced adhesion and flexibility, factory default option
• Match: 2"–5" flat embroidery, common morale patches, backpack decorations

Grade 3: Heavy-Duty (High Strength)

• Bearing weight: Over 30g, large & thick patches
• Features: Strong pulling resistance, not easy to separate under violent friction
• Match: 5"+ large back patches, 3D foam patches, thick PVC patches

Part 4: Velcro Coverage Layout Rules

1. Full Coverage Velcro

• Pros: Even stress, maximum stability, no tilting or warping
• Suitable: Large patches, 3D foam patches, irregular shaped patches

2. Four-Corner Partial Velcro

• Pros: Save material, reduce overall thickness
• Suitable: Medium flat patches with regular square/round shape

3. Strip-Shaped Partial Velcro

• Pros: Good for slender rectangular patches, prevent side warping
• Suitable: Strip-style name tags, bar-shaped team badges

4. Single Center Velcro

• Pros: Thinnest, most flexible
• Suitable: Tiny patches below 1.5", purely decorative lightweight badges

Part 5: Standard Installation Methods

Method 1: Sew-On Velcro (Most Durable, Permanent Use)

1. Align loop side Velcro to the target position on fabric
2. Sew along the edge of Velcro with thread, fix all four sides tightly
3. Press patch with hook side onto loop side for matching

• Recommend for: Tactical gear, work clothes, long-term fixed use

Method 2: Self-Adhesive Velcro (Tool-Free, Temporary Use)

1. Clean and dry the sticking surface, remove dust and oil stains
2. Peel off the protective film, press Velcro firmly for 10–20 seconds
3. Leave it static for 24 hours to let glue fully bond before use

• Recommend for: Rental clothes, temporary activity patches, frequent replacement

Method 3: Iron-On Velcro (Combination of Convenience & Firmness)

• Note: Control temperature below 120°C, avoid damaging fabric and Velcro structure

Part 6: Daily Maintenance & Anti-Aging Tips

1. Clean lint regularly: Use small comb or adhesive roller to remove fluff stuck on hook side, restore adhesion
2. Avoid long-term sun exposure: UV rays will age the material and reduce stickiness
3. Keep two sides fastened when not in use: Prevent hooks from scratching other fabrics and collecting dust
4. Avoid strong chemical corrosion: Keep away from detergent, disinfectant and solvent
5. Do not pull violently sideways: Tear vertically along the surface to extend service life

Part 7: Velcro Replacement Steps for Worn Patches

1. Use tweezers or small scissors to slowly peel off the old failed Velcro
2. Clean residual glue and lint on the patch back
3. Cut new Velcro to the same size as the original
4. Fix new Velcro by sewing or gluing according to original process
5. Press tightly and let it stand fully before reuse

Part 8: Common Selection & Usage Mistakes To Avoid

1. Use ultra-thin light-duty Velcro for large 3D patches → insufficient bearing, patches fall off easily
2. Choose partial Velcro for irregular patches → uneven stress, edge warping
3. Apply self-adhesive Velcro on unclean surface → poor adhesion, short service life
4. Ignore lint cleaning for long-term used Velcro → adhesion gradually weakens
5. Use high-temperature iron on ordinary Velcro → material melting and permanent damage

Final Summary Core Rule
