Custom Patch Border Guide 2026 | Merrow Edge Vs Heat‑Cut Laser Edges

When you design custom patches, the artwork itself gets most of your attention. However, the outer border finishing is a surprisingly important detail that shapes your patch’s final look, durability, and available shapes. The two dominant edge‑finishing styles across the patch industry are merrow overlocked edge and laser heat‑cut edge.

Many new customers are confused by these two options. Some assume they are interchangeable, but each border style delivers a completely different visual effect, set of shape limitations, and long‑term wear performance. Choosing the wrong border can ruin the finished aesthetic of your design or limit your shape options.

This in‑depth 2026 border guide explains exactly how each finish is manufactured, lists pros and cons for every option, compares them side‑by‑side, and tells you which border is perfect for your next custom patch project.

1. What Is a Merrow Overlocked Edge?

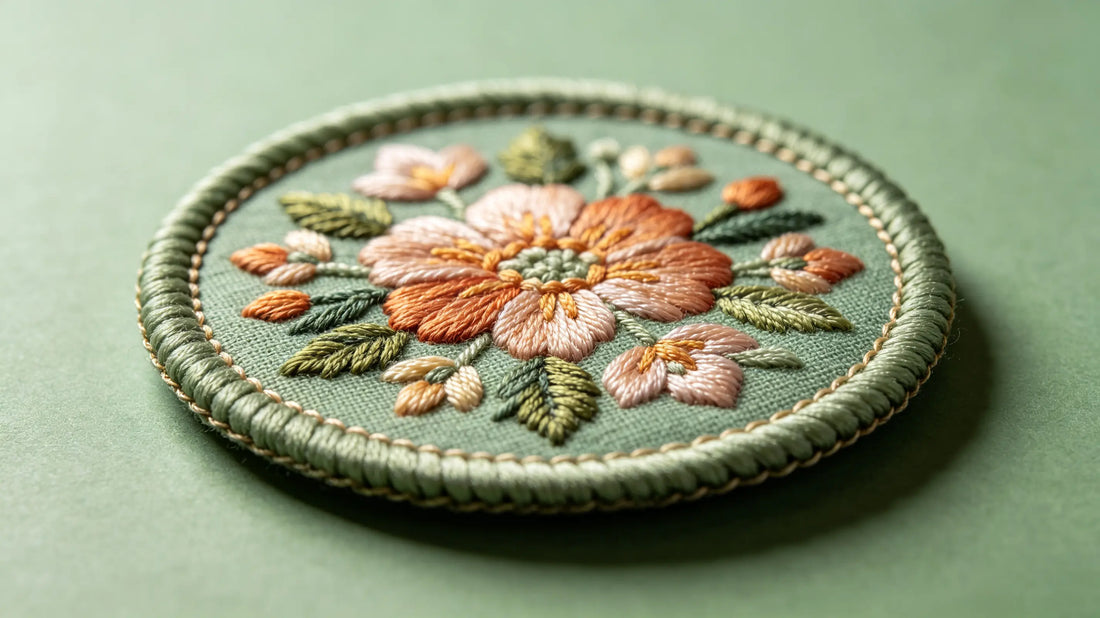

Merrow edge, also known as overlocked edge, is the classic thick stitched border seen on most traditional embroidered patches. A specialized merrow sewing machine wraps a continuous thick thread around the entire outer perimeter of your patch. This creates a raised, rounded, visible stitched rim that fully seals the fabric edge.

Merrow edging is most commonly produced with thread that matches the outer border color of your design, though contrasting‑color merrow borders are also very popular for a bold outline effect.

Advantages of Merrow Edge

• Exceptional fray resistance. The wrapped thread completely locks fabric fibers in place
• Classic, official, timeless badge appearance
• Raised thick border adds clear definition to your patch shape
• Very durable after repeated washing and long‑term daily wear
• Works great for squares, rectangles, circles, ovals and shield shapes

Limitations of Merrow Edge

• Cannot follow sharp, complex, highly irregular custom outlines. Merrow machines struggle with tight curves, jagged notches, and fine‑pointed shapes
• Adds roughly 2‑3 mm extra width all around your patch. This border space reduces the usable artwork area
• Not the best choice if you want a clean, flush‑to‑edge minimalist look
• Not recommended for long, thin, highly curved silhouette designs

2. What Is Laser Heat‑Cut Edge?

Laser heat‑cut finishing, often shortened to heat‑cut, uses a high‑precision laser beam to cut your patch into any custom silhouette. The intense heat from the laser melts and seals the fabric edge instantly as it cuts, preventing threads from fraying without adding any outer stitched rim.

No extra thread is wrapped around the perimeter. The finished edge sits flush with your printed or embroidered artwork. Heat‑cut is the default border for all irregular die‑cut shapes.

Advantages of Laser Heat‑Cut Edge

• Unlimited custom shape freedom. Perfect for animal silhouettes, logo contours, jagged shapes, sharp points and highly detailed outlines
• No extra border thread takes up valuable design space. Your artwork can extend right to the absolute edge of the patch
• Sleek, flat, modern‑looking finish with zero raised rim
• Great for matching the exact irregular outline of your graphic
• Works seamlessly for embroidered, woven, sublimation and PVC patches

Limitations of Laser Heat‑Cut Edge

• No thick protective stitched rim. On fabric patches, the sealed edge can wear slightly faster over years of heavy friction
• Less of a traditional “badge” look compared to merrow edging
• Thin pointed tips on heat‑cut patches are vulnerable to bending if not handled carefully

3. Side‑by‑Side Comparison Table

4. Which Border Works For Each Patch Material

Embroidered Patches

Both finishes are fully available. Traditional uniform‑style embroidered patches most often use merrow edge. Custom‑shaped character embroidered patches use laser heat‑cut.

Woven Patches

Merrow borders deliver a premium formal finish, while heat‑cut is ideal for contoured logo shapes.

Sublimation Patches

Heat‑cut is the most popular option, allowing your full‑bleed printed design to extend all the way out to the patch edge. Merrow can also be added if you want a stitched badge frame.

PVC Rubber Patches

Nearly all rubber PVC patches use heat‑cut die edges. Merrow stitching cannot wrap around hard rubber material.

5. Design Tips Before You Choose Your Border

Choose Merrow Edge If:

• Your patch shape is simple: circle, square, rectangle, shield or oval
• You want the traditional, recognizable badge aesthetic
• Your uniform or team branding calls for a thick defined border
• Long‑term heavy wear and frequent washing is expected
• You want a contrasting colored outline to frame your logo

Choose Heat‑Cut Edge If:

• Your artwork has an irregular, free‑form, or custom silhouette
• Your design contains sharp points, deep notches, or complex curved outlines
• You wish your graphic to print right to the very edge of the patch
• You want a modern, low‑profile border‑free appearance
• You are creating character patches, mascot cut‑outs, or shaped logo patches

Important Spacing Tip for Merrow Patches

Always leave a safety gap between your artwork and the outer edge when ordering merrow‑edged patches. The thick merrow thread will cover the outermost 2‑3 mm of your design if your graphic extends all the way to the boundary line.

6. Can You Combine Merrow and Heat‑Cut Finishing?

No, these are two mutually‑exclusive outer‑edge finishing methods for a single patch. However, you can create an inner stitched outline inside your artwork while selecting a heat‑cut outer edge, this is a great workaround if you want both a framed graphic and an irregular custom outer shape.

Final Thoughts

Merrow overlocked edge and laser heat‑cut edge are the two core finishing choices for custom fabric patches. Merrow delivers the classic, rugged, official badge finish best suited for simple geometric shapes. Laser heat‑cut unlocks unlimited custom silhouette freedom for irregular artwork, with a sleek flat‑edged result.

Your patch shape is usually the biggest deciding factor. Simple symmetrical shapes work beautifully with merrow edging, while any free‑form custom outline requires heat‑cut finishing. Keeping these border rules in mind during the artwork phase will help you avoid disappointed when your finished patches arrive.

FAQ

Q: What does merrow edge mean on a patch? A: Merrow edge is a thick wrapped stitched border sewn around the perimeter of your patch, creating a classic raised badge rim.

Q: Can merrow edge be used on irregular shaped patches? A: No. Merrow machines cannot follow complex jagged outlines. Irregular patches must use laser heat‑cut edges.

Q: Will heat‑cut patch edges fray over time? A: Laser heat melts and seals fabric fibers, so fraying is prevented. Heavy long‑term friction can slowly wear the very tip of sharp points.

Q: Does merrow edge take up space on my design? A: Yes, merrow thread adds 2‑3 mm around all sides, so you must keep your inner artwork away from the boundary.

Q: Can PVC rubber patches have merrow edges? A: No, merrow stitching is only for fabric‑based patches such as embroidery, woven and sublimation badges.
