Custom Patch Velcro Backing Guide | Hook & Loop Types, Strength, Installation & Replacement Tips
Removable Velcro patches bring great flexibility — users can swap out designs freely for different occasions, activities or team events. This feature makes Velcro backing a mainstream option for tactical, military, club and outdoor patches. However, many people confuse hook side, loop side and different strength grades, leading to weak adhesion, easy peeling or excessive thickness affecting wearing comfort. Learning basic Velcro classification, matching rules and maintenance methods ensures stable connection and long service life for removable patches.
Custom 3D embroidered patches provides multiple Velcro backing options including standard and heavy-duty grades, with professional hot lamination for firm and durable combination.
Part 1: Basic Velcro Structure & Core Classification

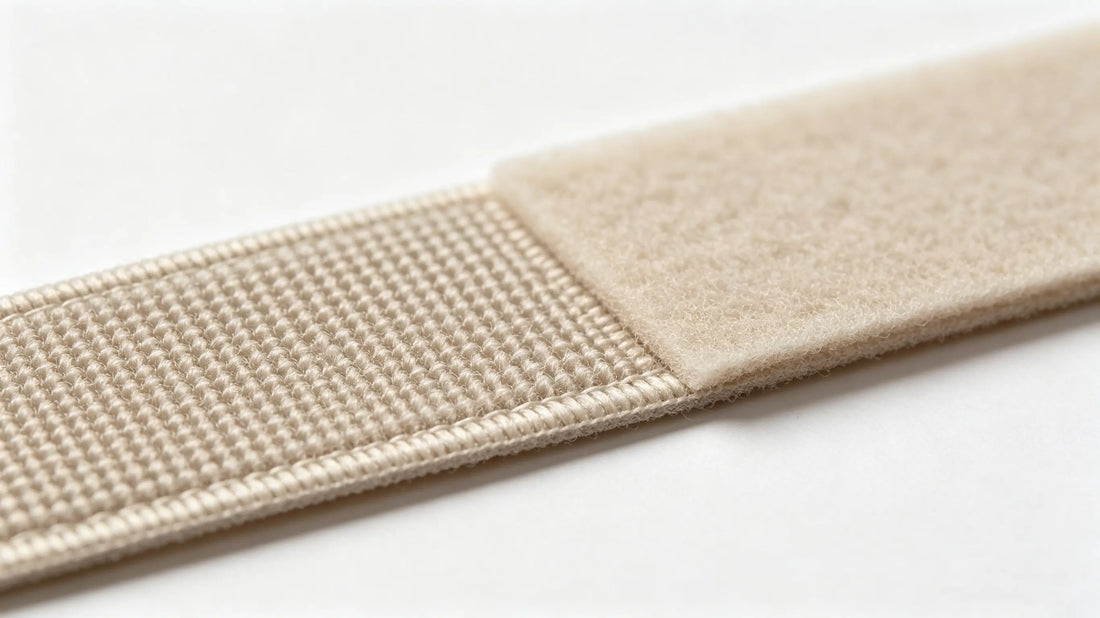

Velcro consists of two matching parts: Hook Side and Loop Side. They must be used in pairs.
- Hook Side: Hard surface with tiny plastic hooks, usually laminated on the back of custom patches
- Loop Side: Soft fuzzy fabric surface, pre-sewn on vests, bags and gear panels
Two Common Strength Grades
- Standard Light-Duty Velcro: Moderate adhesion, thin profile, soft touch. Suitable for small and medium patches on hats, backpacks and casual vests. Easy to peel off and reattach repeatedly.
- Heavy-Duty Industrial Velcro: Thickened fabric and stronger hooks, outstanding pull resistance. Designed for large heavy patches, outdoor high-frequency activity gear and work uniforms that require firm fixation. Slightly thicker than standard type.
Part 2: Full Coverage vs Partial Velcro Layout
1. Full Back Velcro (Most Widely Used)
The entire reverse side of the patch is fully covered with Velcro hook tape.
- Advantages: Even force distribution, strong overall adhesion, no warping, long service life
- Best for: Regular round, square and irregular patches of all sizes, standard tactical morale patches
2. Partial Velcro Strips
Only stick several narrow Velcro strips on the back instead of full coverage.
- Advantages: Lower cost, thinner overall thickness
- Limitations: Uneven stress, easy to tilt or peel at edges after long use
- Best for: Ultra-thin woven labels and small lightweight decorative patches
Part 3: Craft Compatibility for Velcro Lamination
Embroidered & 3D Foam Patches
Fully compatible with both standard and heavy-duty Velcro. Hot melt lamination ensures Velcro does not separate from twill base after repeated tearing and washing. 3D foam patches prefer full coverage Velcro to avoid local collapse.
Woven Patches
Choose standard light-duty Velcro. Woven patches are ultra-thin; heavy-duty Velcro will increase overall thickness and affect flatness. Full coverage is recommended for better stability.
PVC Rubber Patches
PVC material has good adhesion with Velcro. Both grades are available. Large PVC patches select heavy-duty Velcro for anti-drop performance during outdoor activities.
Part 4: Correct Installation & Usage Rules
- Match hook patch with loop panel only: Do not attach hook to hook or loop to loop, which cannot form effective adhesion.
- Align the patch fully and press firmly: Press the whole surface evenly for 3–5 seconds to make hooks bite into loop fabric completely.
- Peel off vertically: Do not drag or twist sideways when removing patches, which will damage Velcro structure and reduce stickiness.
- Keep contact surface clean: Dust, hair and lint will block hooks and drastically weaken adhesion.
Part 5: Daily Maintenance & Lint Cleaning Methods
- Regular lint removal: Use a fine-tooth comb, adhesive roller or tweezers to clear tangled lint and hair on hook side every 1–2 weeks.
- Avoid long-term high temperature: Do not expose Velcro patches to direct fire or high-temperature dryer, which will deform plastic hooks.
- Washing reminder: Fasten Velcro together before putting into washing machine, prevent hooks from scratching other fabrics.
- Storage: Stack patches separately or fasten them on loop cloth, avoid squeezing hooks for a long time.
Part 6: Velcro Replacement for Old Patches
When Velcro ages, loses stickiness or peels off, you can replace it manually:
- Tear off the old worn Velcro layer completely, clean residual glue on patch back.
- Cut new Velcro to match patch size.
- Use low-temperature iron or strong fabric adhesive to fix new Velcro tightly.
- Let it stand for several hours until fully bonded before reuse.
Part 7: Common Velcro Backing Mistakes To Avoid
- Equip large heavy patches with light-duty Velcro → easy to fall off during movement
- Use heavy-duty Velcro on slim woven labels → overly thick and affect wearing comfort
- Drag patches sideways when removing → hook structure damaged, adhesion declines rapidly
- Ignore lint accumulation → Velcro gradually loses sticking ability
- Mix hook-to-hook matching → cannot attach normally at all
Final Summary Core Rule
Patch back = hook side; gear panel = loop side; full coverage Velcro for most patches; light-duty for small/thin items, heavy-duty for large/outdoor patches; peel vertically, clean lint regularly; fasten Velcro before laundry. Choose proper strength and layout to keep removable patches stable and durable.
Frequently Asked Questions
Q1: Which side of Velcro goes on the patch?
A: The hard hook side is laminated on the back of custom patches.
Q2: What Velcro to choose for large tactical patches?
A: Heavy-duty industrial Velcro provides stronger fixation for large tactical patches.
Q3: Why does Velcro lose stickiness over time?
A: Mostly caused by lint clogging hooks or long-term distortion of hook structure.
Q4: Can Velcro patches be washed in washing machine?
A: Yes, just fasten the hook and loop together first before washing.
