Custom Woven Patches Guide | Weaving Craft, Density, Size Limit, Color Rules & Application Tips

Part 1: Basic Weaving Production Principle & Core Features

• Core Feature 1: Ultra-thin body, nearly flush with fabric after sewing
• Core Feature 2: Excellent detail restoration, suitable for miniature text and complex fine lines
• Core Feature 3: Soft texture, no hard edges, comfortable for direct skin contact
• Core Feature 4: Good wash resistance, threads are tightly woven and not easy to loose or fray

Part 2: Woven Density Classification & Quality Difference

1. Standard Density Woven Patch (Economical Default)

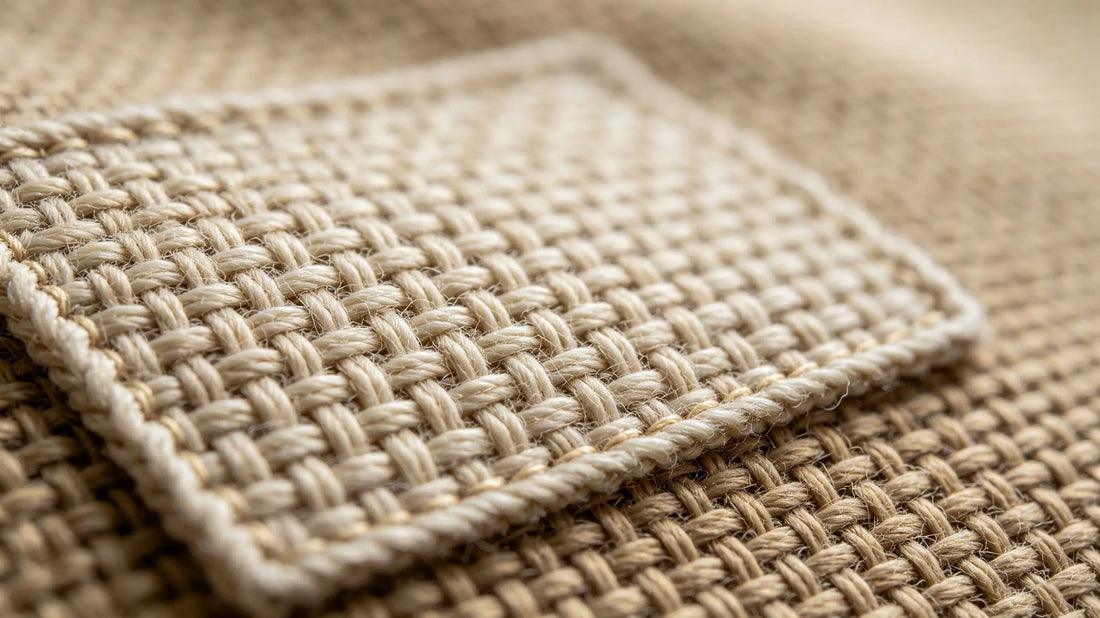

2. High-Density Woven Patch (Premium Upgrade)

Part 3: Size Limitation & Recommended Dimensions

1. Ultra-small size (0.8" – 2"): Best application range for woven patches, perfect for collar labels, hat side marks and pocket mini logos.
2. Medium size (2" – 4"): Available, but large solid color areas will look monotonous; suggest adding line patterns to enrich visuals.
3. Size over 4": Not recommended. Woven craft cannot create three-dimensional layering, and large-area single color lacks visual impact. Choose embroidered patches instead for oversized decorations.

Part 4: Color Usage Rules for Woven Patches

1. Conventional color limit: Regular woven patches support up to 8 standard colors. Too many colors will increase loom setup difficulty and production cost.
2. Solid color block: Large-area pure color design is feasible, but the woven texture will be visible, different from the full coverage effect of embroidery.
3. Gradient color: Standard woven craft cannot realize natural color gradient. Transition effects need to be completed by segmented color blocks.
4. Contrast color matching: Dark background with light lines or light background with dark lines is recommended to maximize pattern clarity.

Part 5: Available Backing & Edge Finishing Options

Common Backing Choices

• Sew-on base: Most popular for clothing labels, flat and permanent after stitching.
• Iron-on backing: For temporary decoration on bags and non-frequent washing items.
• Self-adhesive: Suitable for paper products and short-term indoor ornaments.

Edge Treatment

1. Laser cut raw edge: Mainstream choice for woven labels, neat and slim without extra thread borders.
2. Merrow edge: Optional for decorative woven patches, increase durability but slightly raise overall thickness.

Part 6: Woven Patch VS Embroidered VS PVC Patches

1. Woven patch: Ultra-thin, fine details, soft; for labels, mini logos, slim apparel.
2. Embroidered patch: Three-dimensional sense, rich layering, large pattern support; for uniforms, back decorations, team emblems.
3. PVC patch: Waterproof, flexible, bright solid color; for tactical gear, outdoor supplies and water sports accessories.

Part 7: Suitable & Unsuitable Usage Scenarios

Priority to Choose Woven Patches

• Garment inner collar labels, size tags and brand identification marks
• Mini logos on shirts, underwear and close-fitting clothing
• Exquisite small decorative patches on hats, wallets and bags
• High-end fashion brand accessories requiring low-profile and flat design

Not Recommended for Woven Patches

• Oversized back vest patches requiring strong three-dimensional visual impact
• Designs with more than 8 complex colors
• Thick work uniforms and heavy outdoor gear
• Patterns needing large-area solid color filling and prominent raised texture

Part 8: Common Woven Patch Custom Mistakes To Avoid

1. Design ultra-complex multi-color patterns for low-density woven patches → details are confused and unclear
2. Make oversized large-area solid color woven patches → dull visual effect, waste budget
3. Ignore color quantity limit and use more than 8 colors → production cost surges and process difficulty increases
4. Apply woven patches on thick heavy-duty work gear → lack of wear resistance compared with embroidery

Final Summary Core Rule
